ZWO 5V Electronic Automatic Focuser

Description

No More 12V Power Supply Required – Meet the New 5V ZWO EAF Focuser!

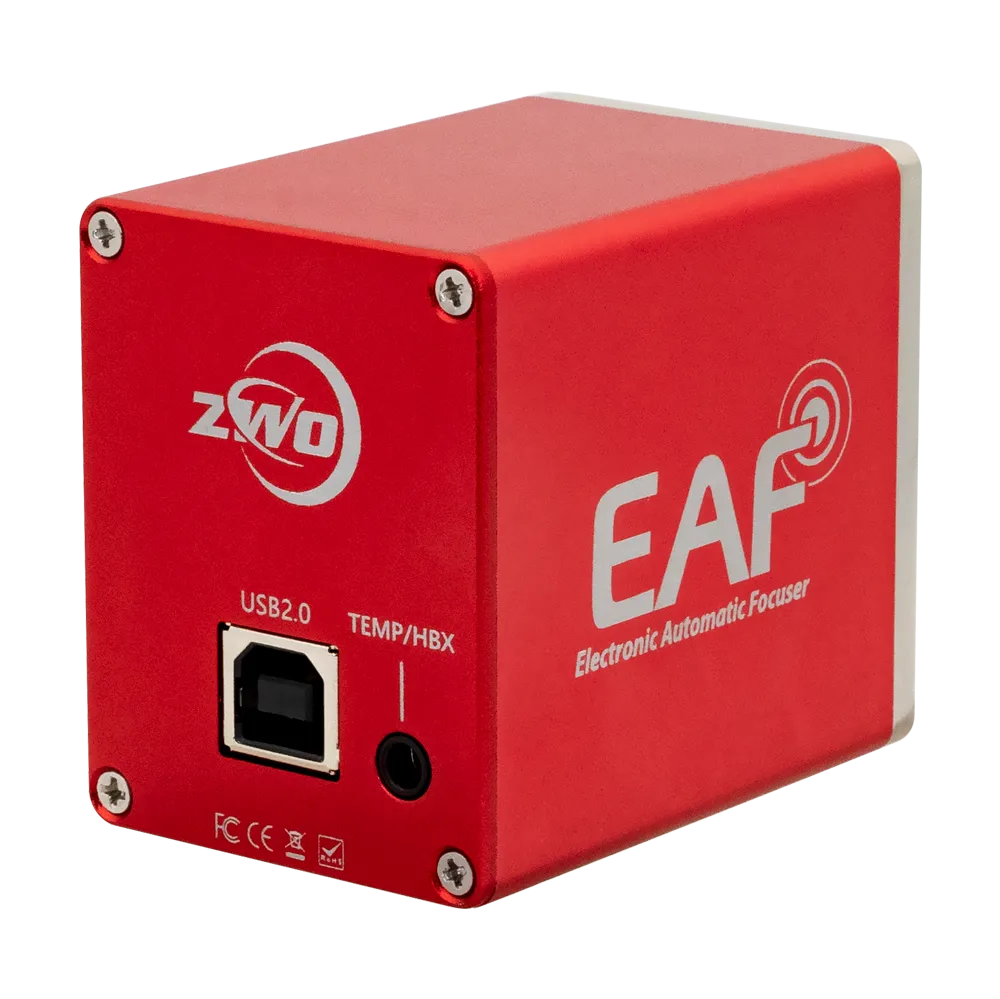

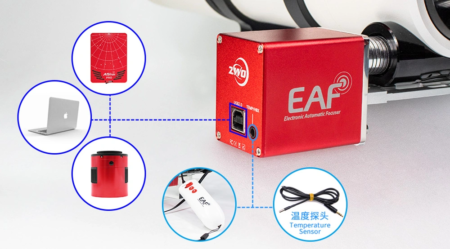

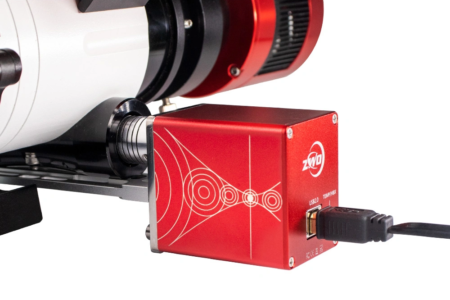

Great news for astrophotographers! The upgraded 5V EAF (Electronic Automatic Focuser) retains the precision and dynamic control of the original version for both planetary and deep-sky imaging — but now operates entirely through a 5V USB connection. This means no more 12V power supply is needed. Simply connect the focuser to your camera, laptop, or ASIAIR PRO using the USB 2.0 port — one cable for both power and data! It’s an ideal solution for streamlined cable management and fewer power outlets.

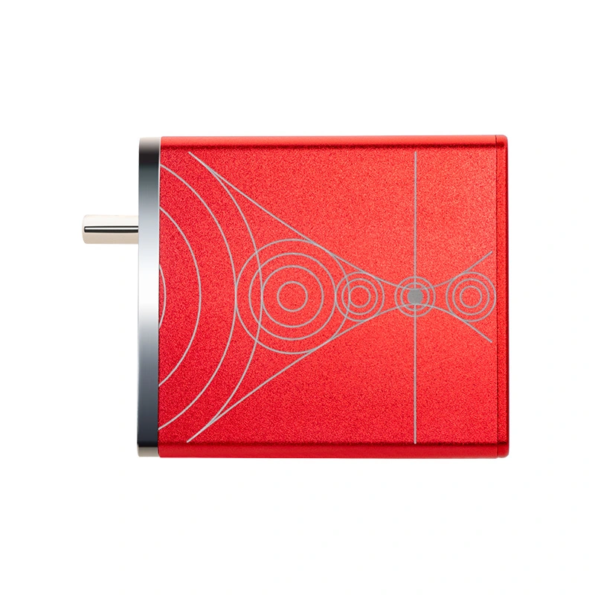

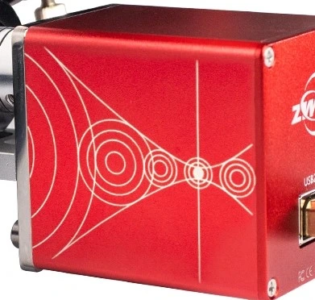

The EAF’s cover features an innovative decorative pattern inspired by the changes of Airy disk, showing focus accuracy and how the system identifies the optimal focal point.

Two Variants Available

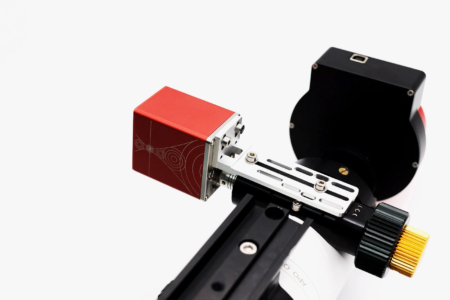

• Standard Version: EAF body, flexible coupling, motor bracket, USB 2.0 cable

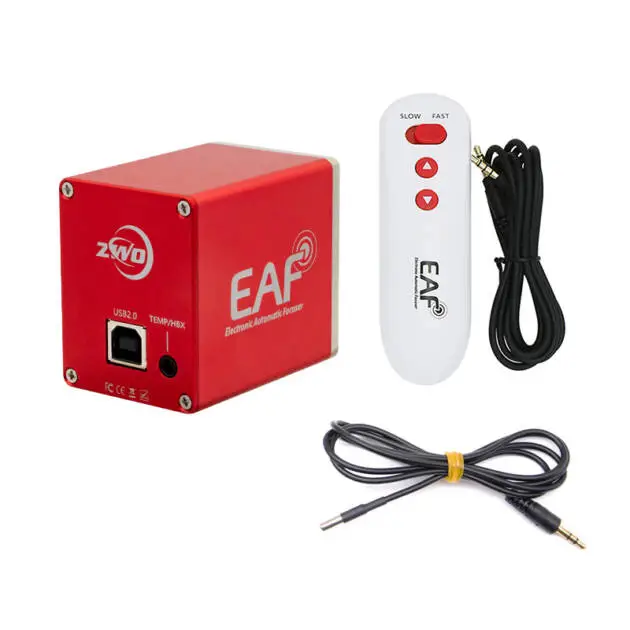

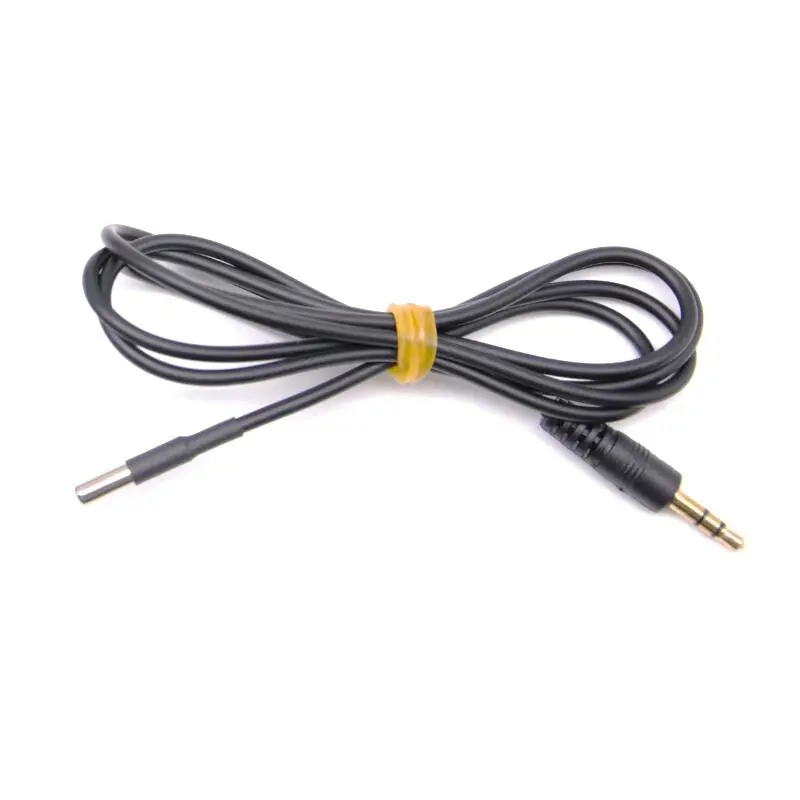

• Advanced Version: Includes all Standard components plus hand controller and temperature sensor

You could purchase the standard version first, and then buy other accessories to upgrade in the future.

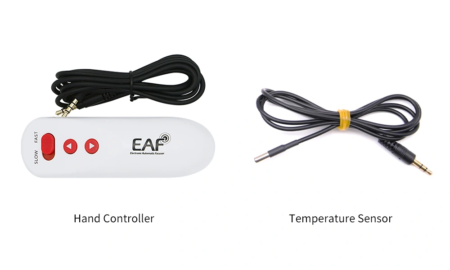

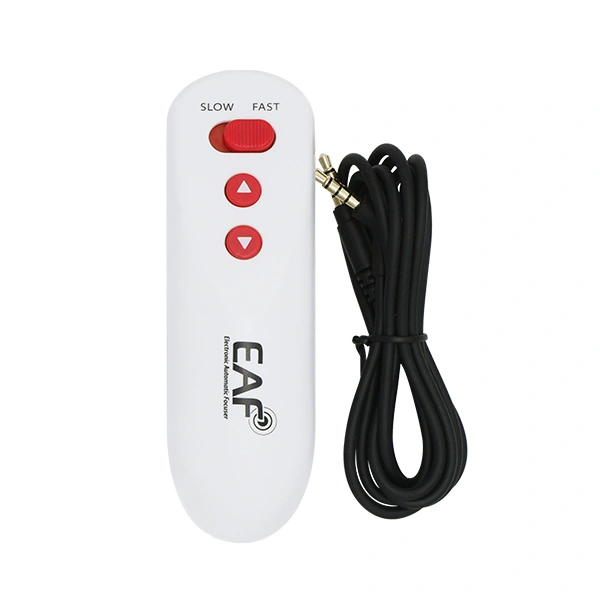

ZWO EAF Hand Controller (optional)

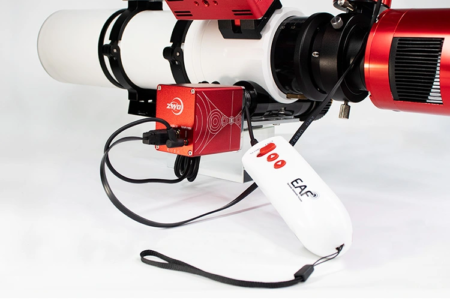

Providing an easy method add-on for focusing the telescope, the hand controller features IN/OUT buttons, two-speed control, and an ergonomic design made from eco-friendly ABS. It connects via a 3.5mm socket and makes manual focusing quick and intuitive — a perfect companion for the EAF!

Compatible Telescopes

• Sky-Watcher: Astrophotography Reflectors, Black Diamond, Dobsonians, Maksutov-Newtonians
• SharpStar, SkyRover, TS Optics, Astro-Tech, Feather Touch focusers

Note: Not all models are supported. Refer to ZWO’s ZWO EAF Compatible Focuser List & Connecting Methods for details. More models will be supported in the future.

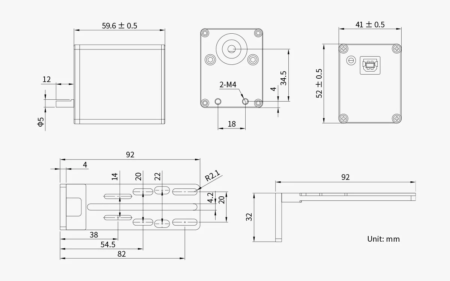

Specifications

• Dimensions: 59mm x 52mm x 41mm

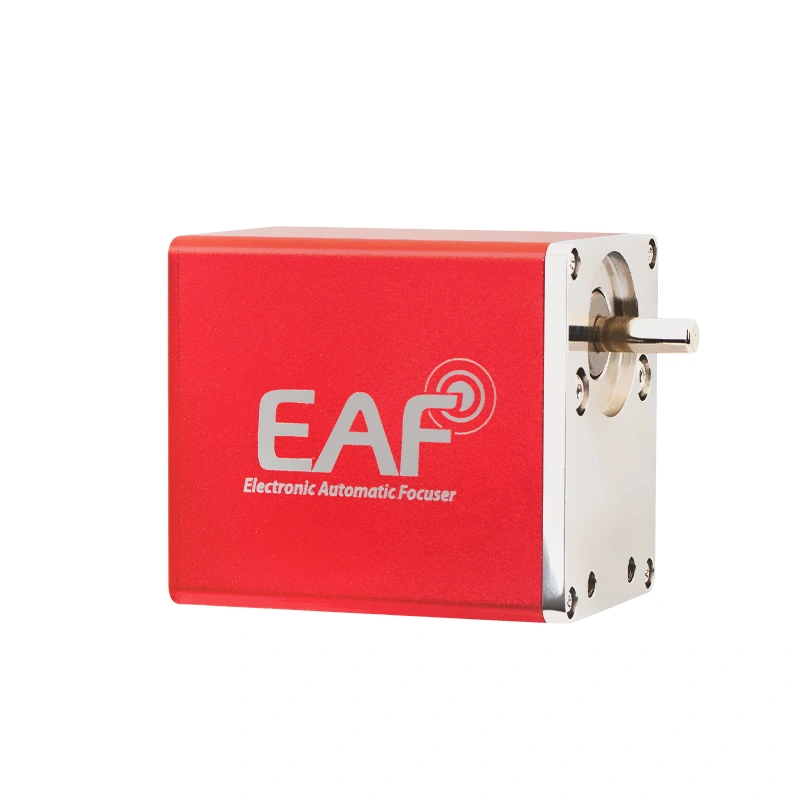

• Moter: Step moter, 35mm diameter, 7.5° step angle
• Reduction ratio: 120

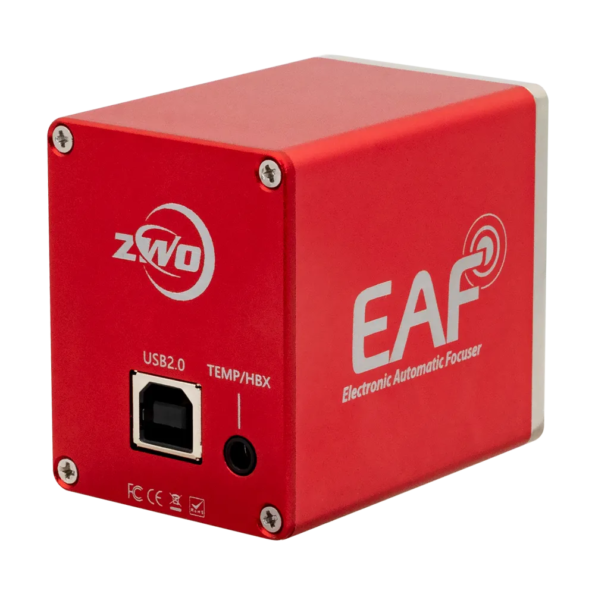

• Power/Data port: USB2.0 port, Type-B
• Weight: 277g
• Capacity: 5kg

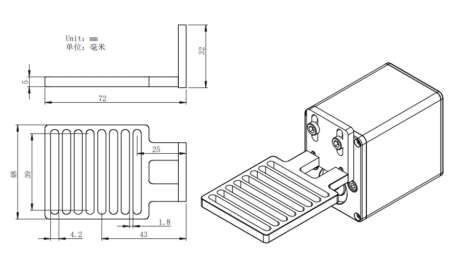

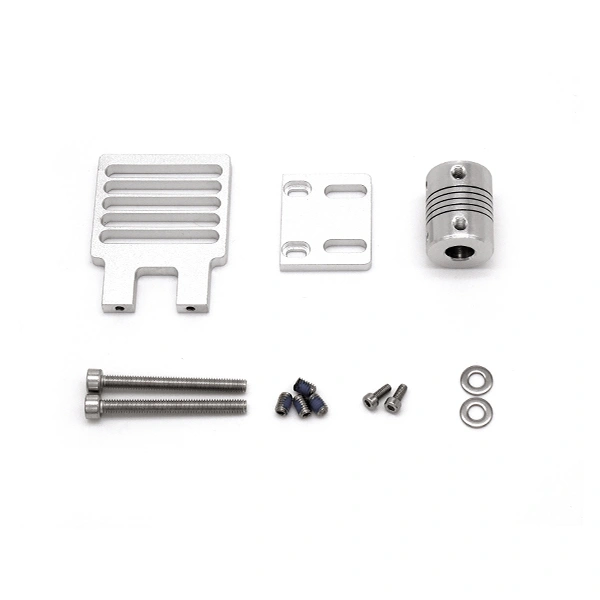

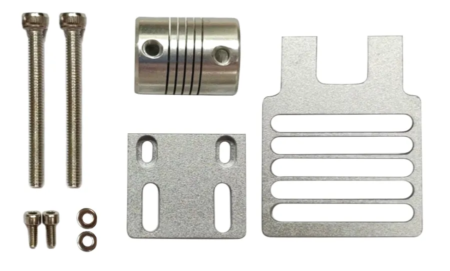

ZWO EAF bracket for Takahashi Scope

This bracket is compatible with:

• Takahashi FSQ85
• Takahashi FSQ106 (except for the first generation)
• Takahashi TOA-130NFB

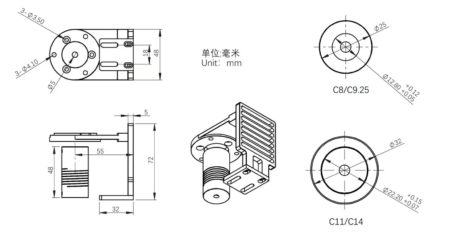

ZWO EAF Bracket for Celestron SCTs (C8, C9.25, C11, C14)

This bracket is designed to work with C8, C9, C11 and C14 the Celestron SCT scopes. You can directly connect it to the scopes without using the feather touch focusers. It is CNC milled from an aircraft graded aluminum block. Quality reliable.

EAF-SCT-C8/C9.25 Supported Models

1. 8" Rowe-Ackermann Schmidt Astrograph (RASA 8) Optical Tube Assembly (CGE Dovetail)
2. EdgeHD 8" Optical Tube Assembly (CGE Dovetail)
3. C8 Optical Tube Assembly (CGE Dovetail)
4. C8 Optical Tube Assembly (Cg-5 Dovetail)
5. EdgeHD 9.25" Optical Tube Assembly (CGE Dovetail)
6. 25 Optical Tube Assembly (CGE Dovetail)
7. 25 Optical Tube Assembly (CG-5 Dovetail)

EAF-SCT-C11/C14 Supported Models

1. 11" Rowe-Ackermann Schmidt Astrograph (RASA 11) V2 Optical Tube Assembly (CGE Dovetail)
2. EdgeHD 11" Optical Tube Assembly (CGE Dovetail)
3. C11 Optical Tube Assembly (CGE Dovetail)
4. C11 Optical Tube Assembly (CG-5 Dovetail)
5. EdgeHD 14" Optical Tube Assembly (CGE Dovetail)
6. C14 Optical Tube Assembly (CGE Dovetail)

Package contents vary by model:

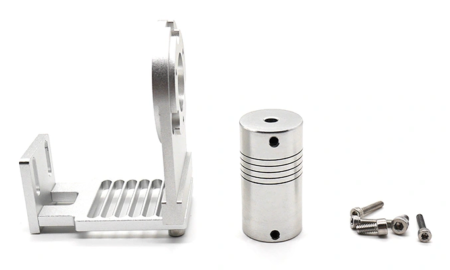

• For Celestron C8 / C9.25: Flexible coupling, motor bracket, M4-8mm x2, M3-14mm x3

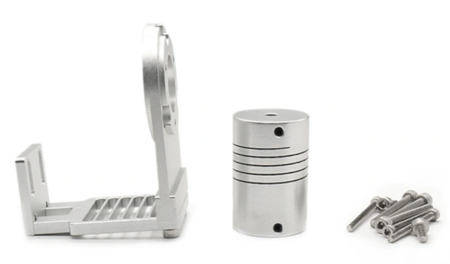

• For Celestron C11 / C14: Flexible coupling, motor bracket, M4-8mm x2, M3-35mm x3, M4-35mm x3
