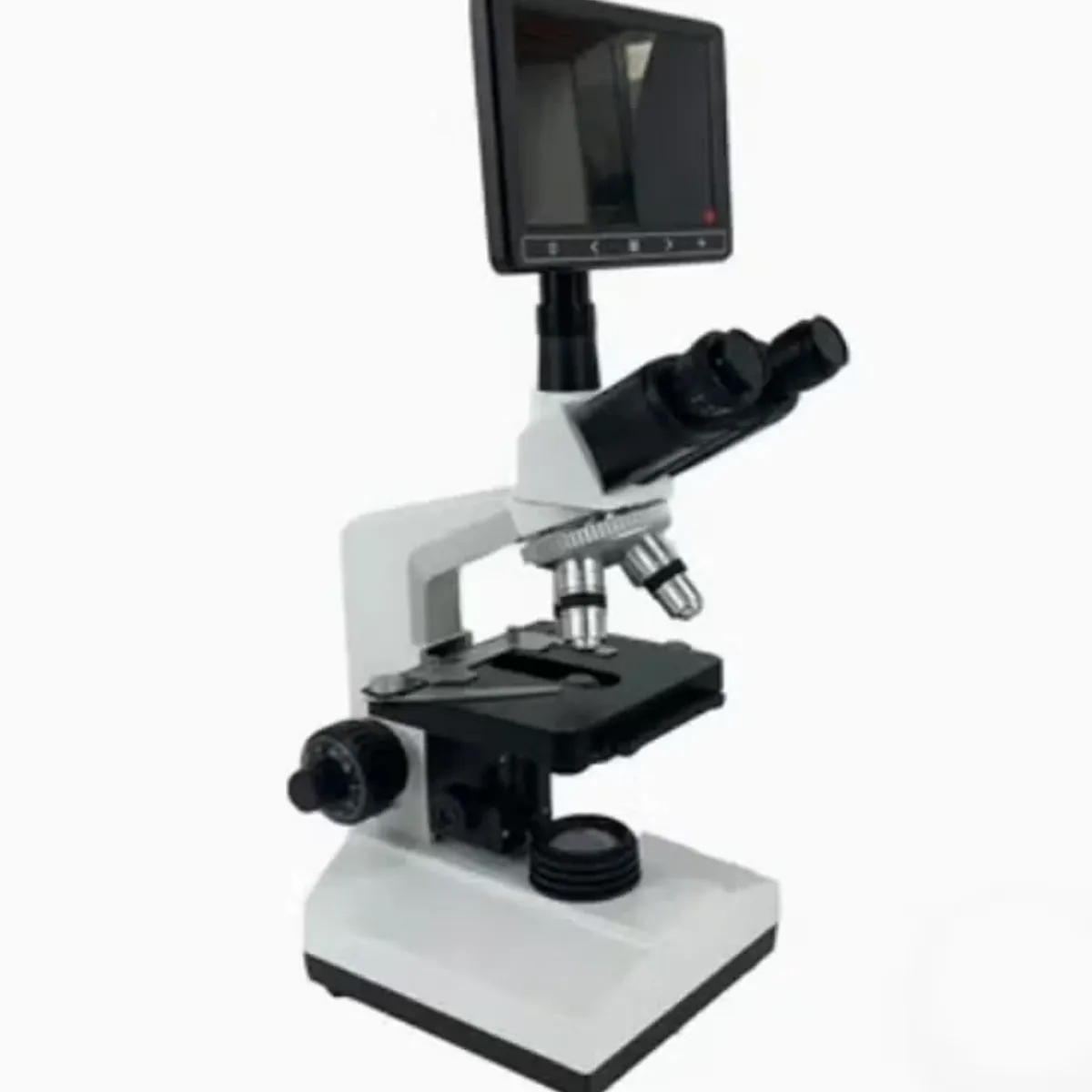

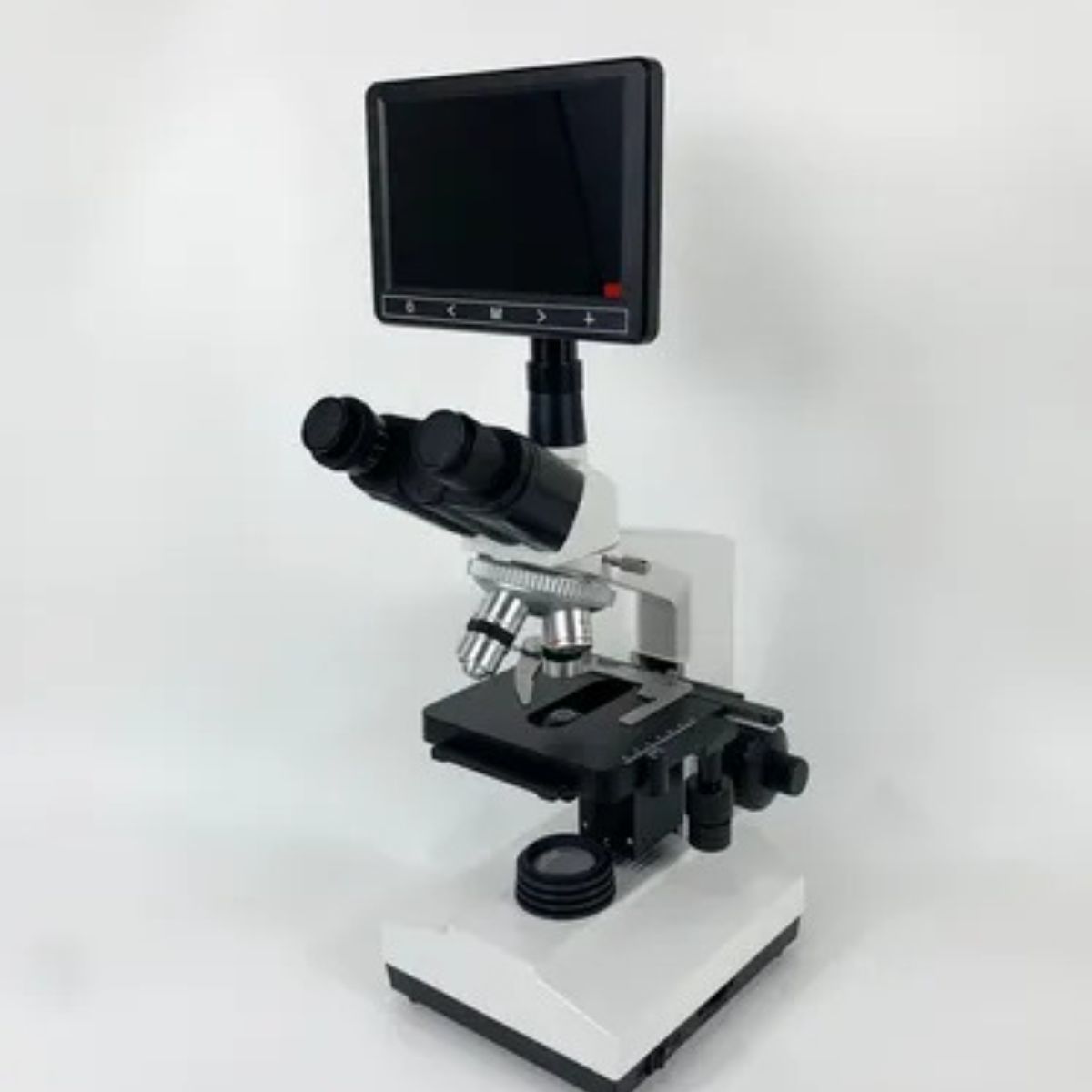

Biological Microscope XSZ-107BN Instruction Manual

Description

Product Description

The XSZ-107BN Biological Microscope is built for everyday lab work where clarity, reliability, and ease of use matter. Whether you’re examining prepared slides in a classroom or carrying out routine biological analysis, this microscope delivers consistent, sharp images without complicated setup.

What makes it practical is the balance between optical quality and usability. With a standard magnification range from 40X up to 1000X, it covers everything from basic specimen viewing to more detailed cellular observation. The inclusion of an oil immersion 100X objective allows for higher-resolution work when needed, especially in clinical or microbiology settings.

Performance & Practical Features

This microscope is designed to be straightforward, even for first-time users, while still offering the control expected in a lab environment:

• Multi-objective system (4X, 10X, 40X, 100X)
  Lets you move from general viewing to detailed inspection smoothly without losing focus.
• Coarse and fine focusing controls
  Provides quick positioning with coarse focus and precise image sharpening with fine adjustments—essential for high magnification work.
• Adjustable illumination system
  Built-in lighting with brightness control ensures proper contrast for different sample types, reducing eye strain during long sessions.
• Condenser with iris diaphragm
  Helps regulate light intensity and improves image contrast, which is especially useful when working with transparent biological samples.
• Stable mechanical structure
  The solid base and stage design minimize vibration, keeping your image steady while adjusting slides.

Real-World Use

In daily use, the XSZ-107BN performs reliably across common tasks:

• Viewing bacteria and microorganisms (with oil immersion)
• Studying plant and animal cells
• Routine lab checks and educational demonstrations
• Training environments where durability and ease of use are important

It’s not overloaded with unnecessary complexity, which makes it a dependable choice for regular use rather than occasional demonstration.

Who is this product for?

This microscope is a good fit for:

• Schools and universities – Ideal for teaching biology with a clear magnification range and simple operation
• Small laboratories and clinics – Suitable for routine sample observation without investing in high-end research systems
• Training centers – Great for beginners learning microscopy techniques
• Distributors and resellers – A reliable mid-range model with broad demand

If you need a microscope that covers standard biological work without advanced research features, this model fits well.

What’s in the Box

Typically, the package includes:

• XSZ-107BN microscope unit
• Eyepiece(s) (usually WF10X)
• Objective lenses (4X, 10X, 40X, 100X oil)
• Power cable
• Dust cover
• Immersion oil (for 100X use)
• User instruction manual

(Some configurations may vary slightly depending on supplier.)

Maintenance & Longevity

With basic care, this microscope will last for years. Keeping the lenses clean with proper lens paper and storing it covered in a dry space helps maintain image quality. The mechanical parts are designed for repeated daily use, so routine handling in labs or classrooms won’t be an issue.

 Final Thoughts

The XSZ-107BN stands out as a practical, workhorse microscope. It doesn’t try to be overly advanced—instead, it focuses on doing the essentials well: clear optics, smooth operation, and dependable performance. For most biological observation needs, it offers everything required in a straightforward and cost-effective package.

Optical Specifications

1. Objective Lenses

2. Eyepiece Specifications

3. Total Magnification

4. Optical System Details

5. Illumination & Condenser

Notes for Manual Use

• The 100X objective requires immersion oil for proper resolution.
• Higher numerical aperture (N.A.) provides better resolution but requires more precise focusing.
• Total magnification depends on the combination of eyepiece and objective lenses.

These tables are aligned with typical XSZ-107BN manufacturer specifications and can be directly inserted into your official instruction manual or product catalog.
