SVBONY SV165 40mm F4 Mini Guide Scope

Description

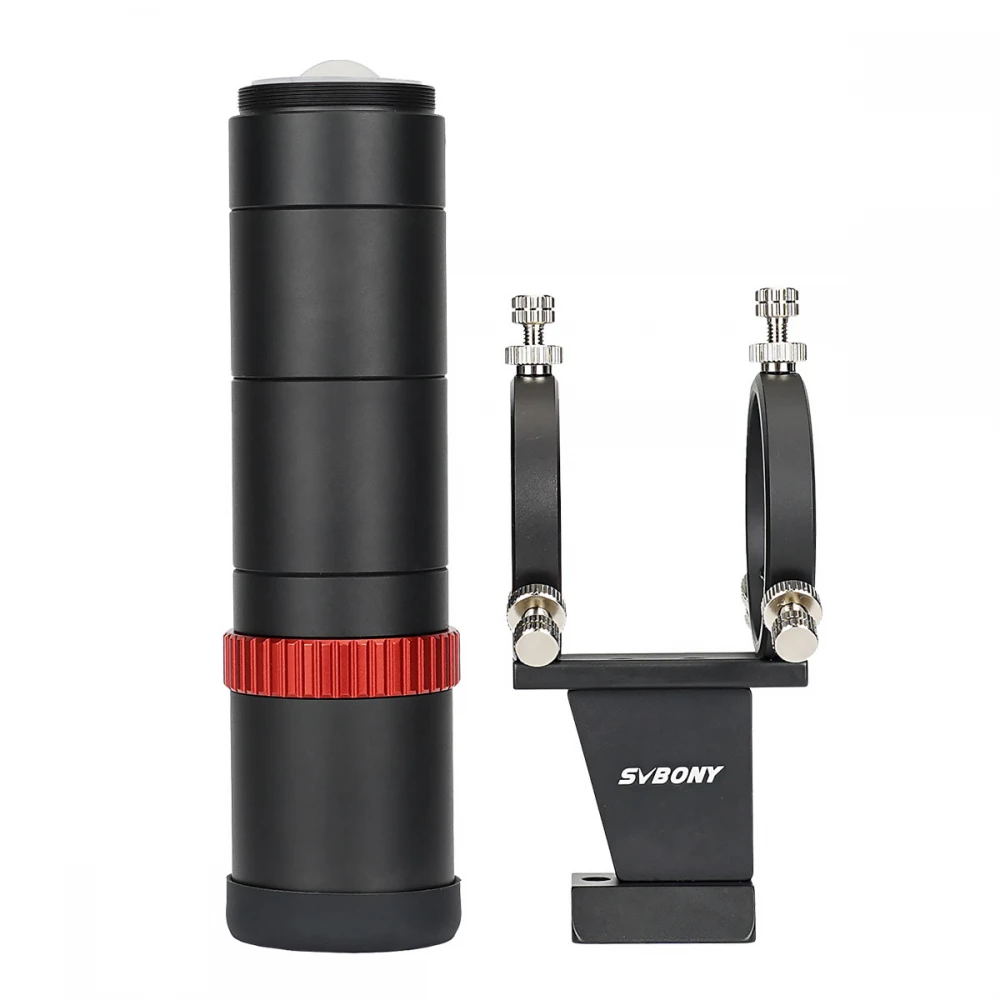

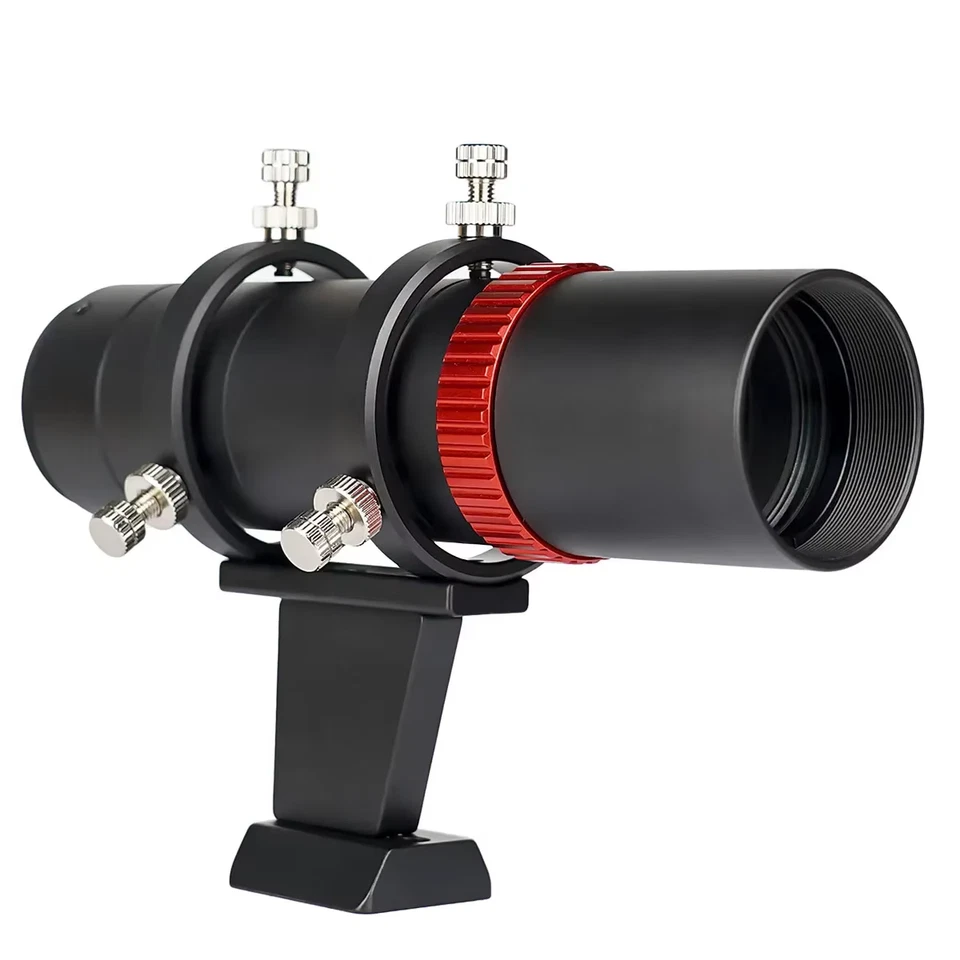

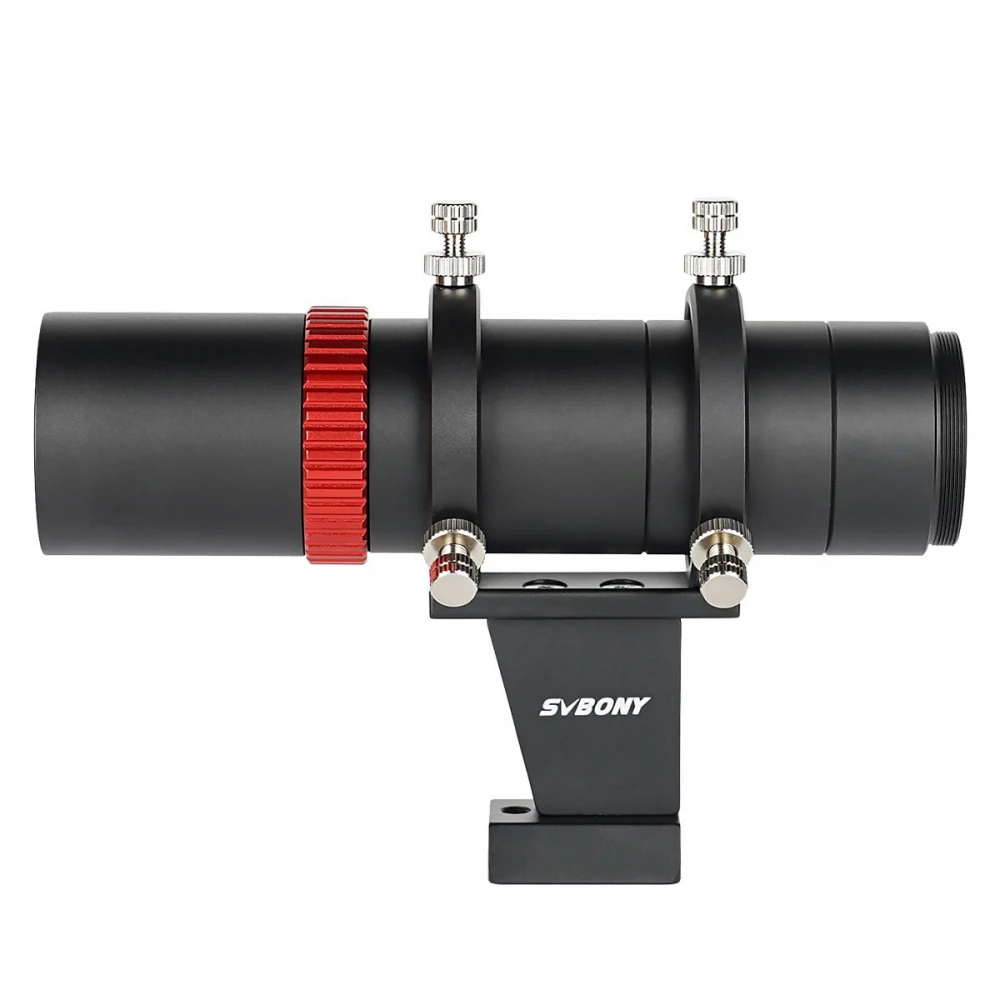

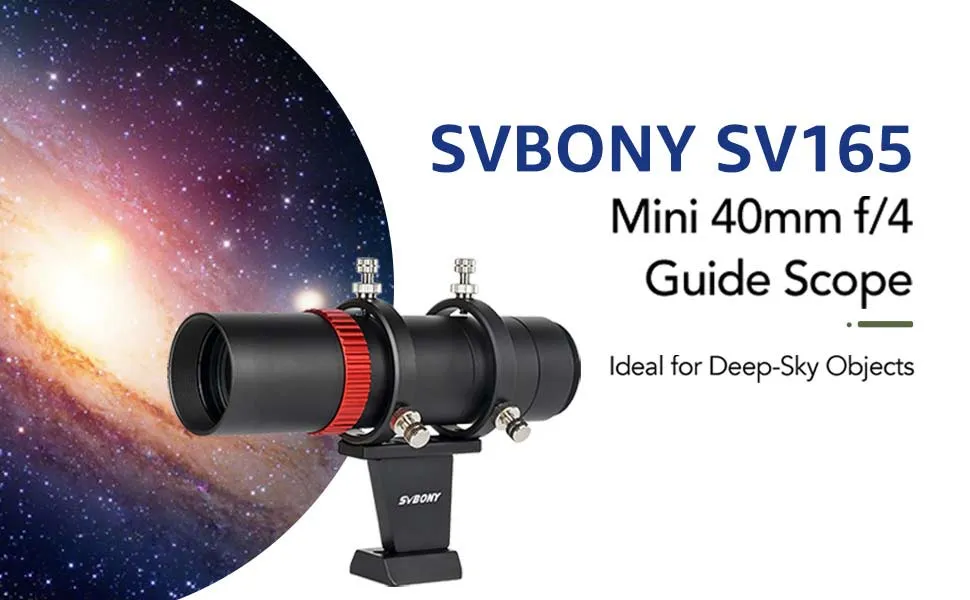

SVBONY SV165 40mm F4 Mini Guide Scope

The SVBONY SV165 40mm F4 Mini Guide Scope is a compact and lightweight guide telescope designed for astrophotography and precise telescope autoguiding. With a 40mm aperture, 160mm focal length, and fast f/4 focal ratio, it provides a bright and sufficiently wide field of view for locating guide stars and working with a wide range of guide cameras. A dedicated guide scope is an important part of an astrophotography setup. When paired with a suitable guide camera, it allows an autoguiding system to monitor the position of a star and make small corrections to the telescope mount during a long-exposure imaging session. The SV165 provides a simple and practical solution for this purpose without adding the size and weight of a conventional telescope.

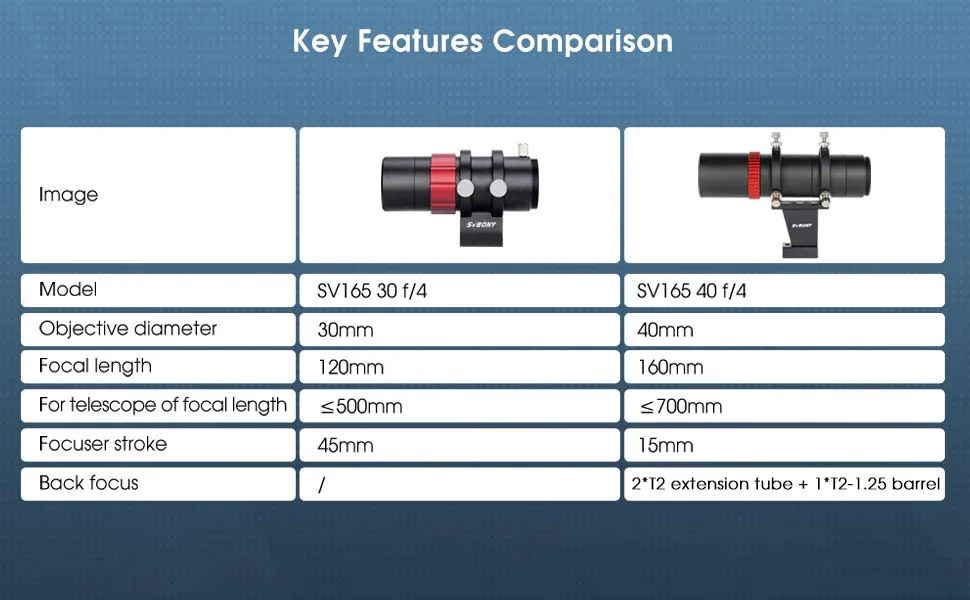

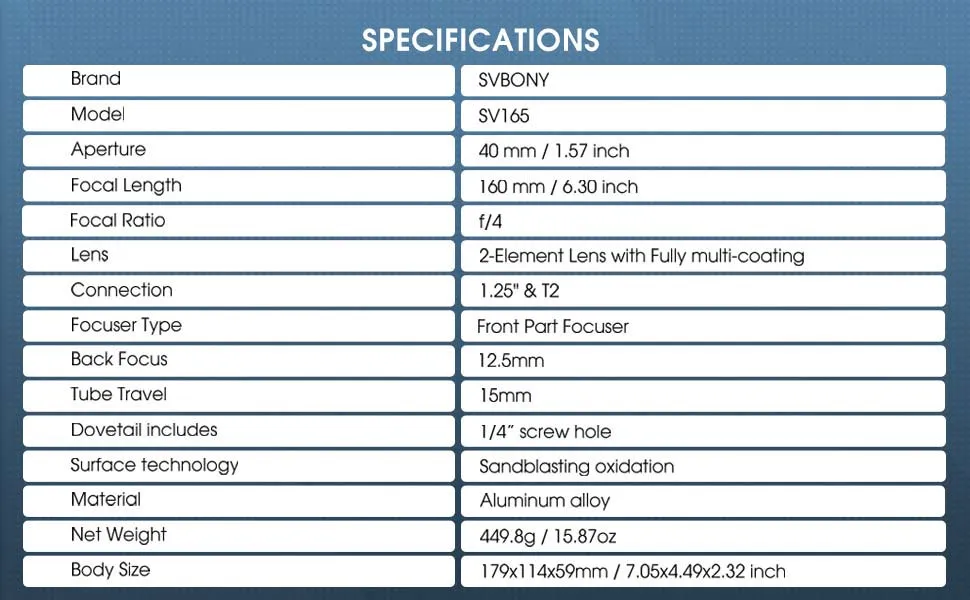

40mm Aperture and 160mm Focal Length

The SV165 uses a 40mm objective lens with a 160mm focal length, giving it a fast f/4 optical system. This combination is well suited to guiding because the relatively short focal length provides a wide field of view, making it easier for the guide camera to find suitable stars. The 40mm aperture also collects enough light for the guide camera to detect guide stars in many astrophotography situations. Its compact optical design keeps the guide scope small and easy to integrate into an existing telescope setup.

Fast f/4 Optical System

With an f/4 focal ratio, the SV165 produces a relatively bright image at the guide camera. A fast optical system is useful for guiding because it can help the camera detect stars without requiring excessively long exposures. The optical system uses fully multi-coated optics to improve light transmission and provide clear images. The achromatic design is intended to provide good performance while keeping the guide scope compact and practical.

Adjustable Focusing System

The SV165 features a front focusing mechanism that allows the user to adjust the focus according to the guide camera being used. A graduated focus scale makes it easier to identify and reproduce a preferred focus position. Once the correct focus has been achieved, the focus lock ring can be tightened to help prevent the focus from changing accidentally. This is particularly useful during astrophotography sessions, where maintaining a stable focus is important.

Compatible with Common Guide Cameras

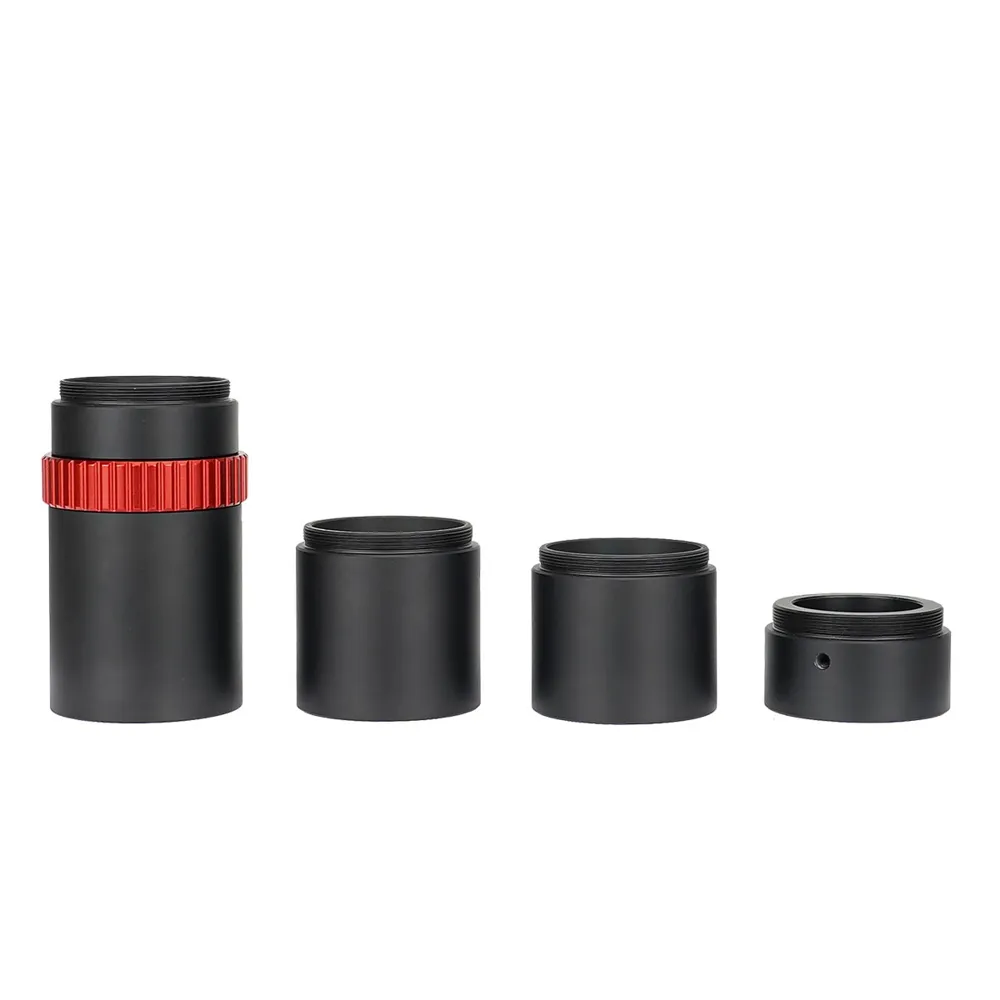

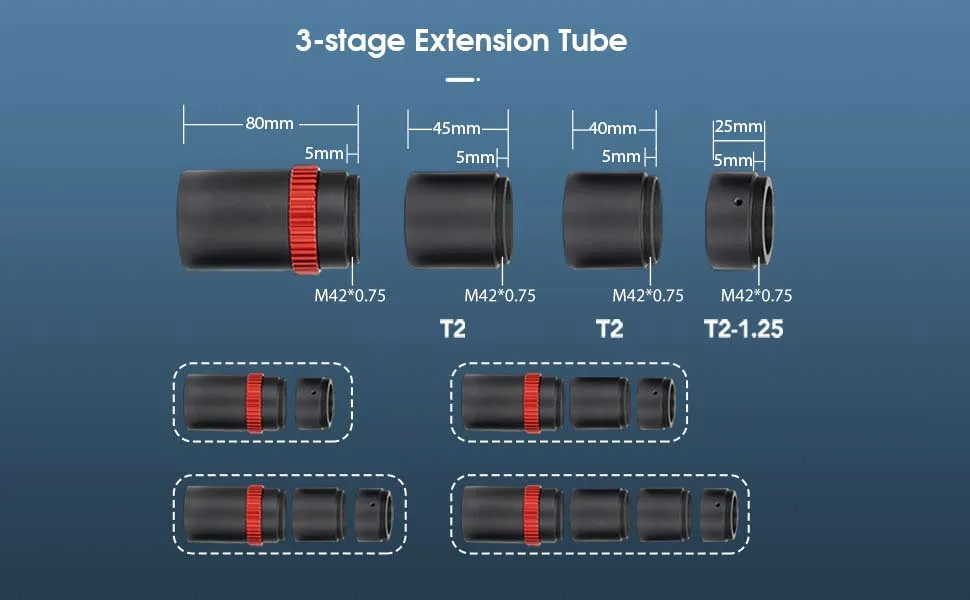

The SV165 is designed to work with commonly used astronomy cameras through its 1.25-inch and T2 connections. This makes it suitable for use with a variety of guide cameras and provides flexibility when building or upgrading an autoguiding system. The available connection and extension components also help provide the necessary working distance for achieving focus with different camera configurations.

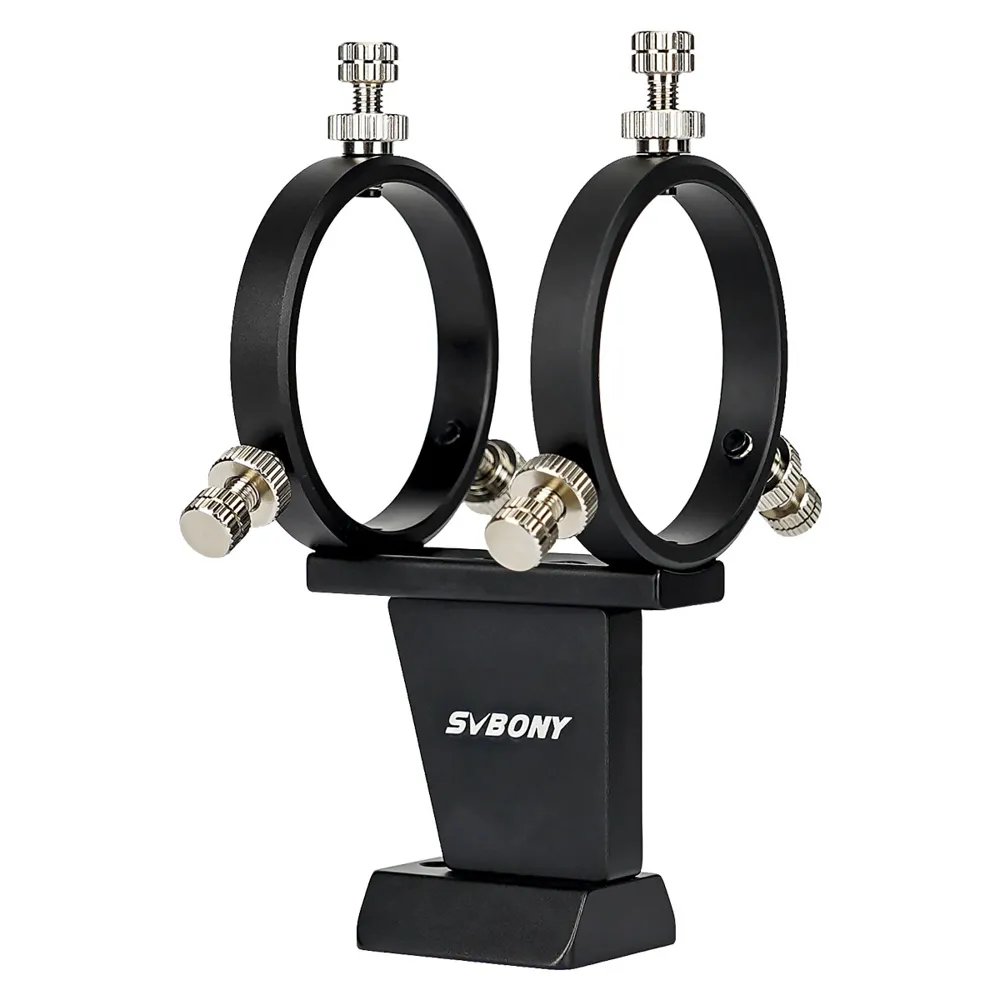

Six-Point Adjustable Guide Rings

For accurate guiding, the guide scope needs to be securely mounted and properly aligned. The SV165 includes six-point adjustable guide rings, allowing the position of the guide scope to be fine-tuned relative to the main telescope.

The adjustment points provide control over the guide scope's alignment while keeping it securely supported. This makes it possible to position the guide scope toward a suitable region of the sky and guide star.

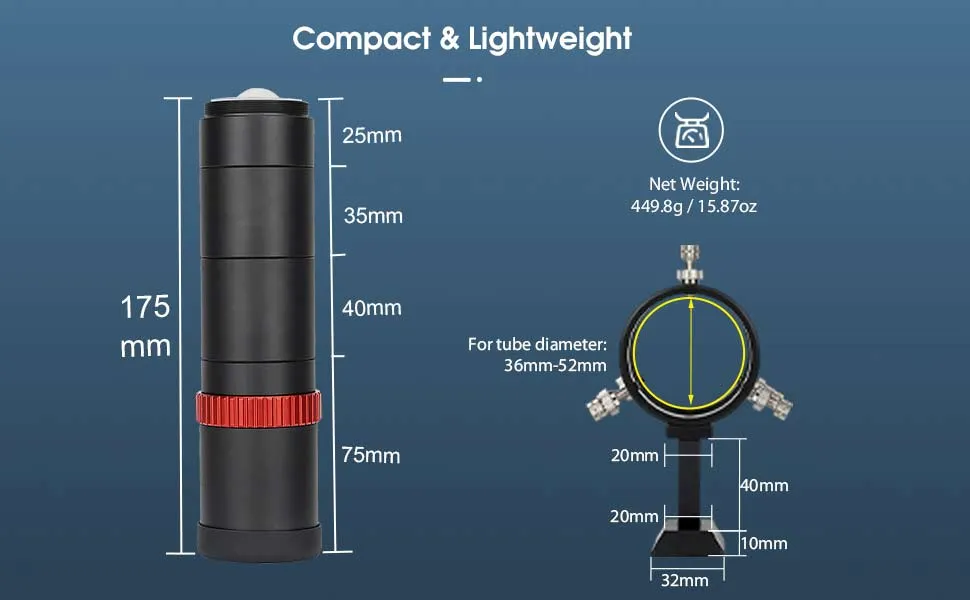

Compact and Lightweight Design

One of the main advantages of the SV165 is its small and lightweight construction. Large guide telescopes can add considerable weight to an astrophotography setup, while the compact SV165 is designed to provide the necessary guiding optics without taking up much space. Its aluminum optical tube provides a combination of low weight and mechanical strength. The interior is designed to minimize unwanted stray light, helping the guide camera receive a cleaner image.

The included mounting base is compatible with a standard finder shoe, making installation straightforward on many telescopes and astrophotography setups.

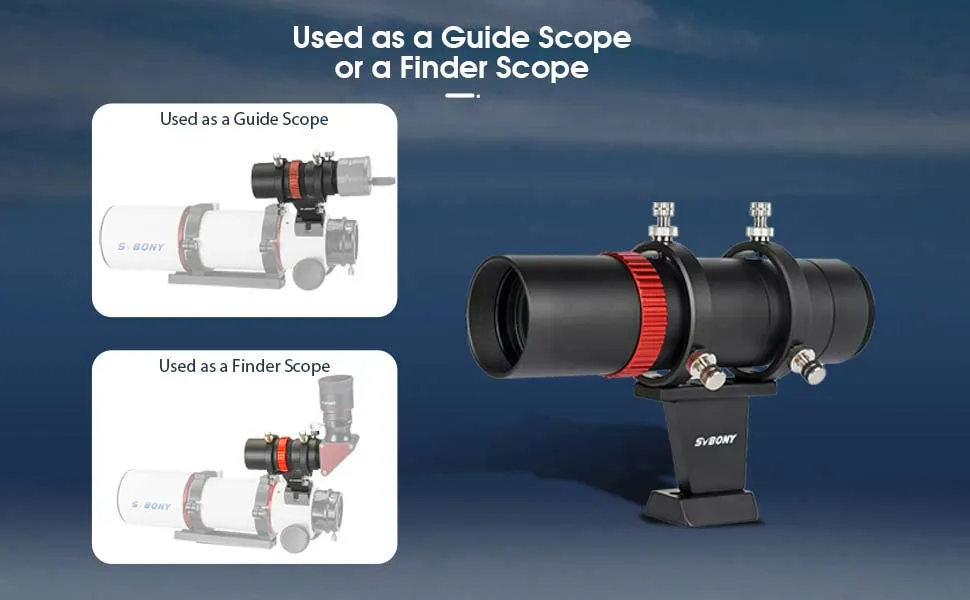

A Practical Guide Scope for Astrophotography

The SVBONY SV165 is a practical choice for users who need a dedicated guide scope for an autoguiding system. Its 40mm aperture, 160mm focal length, fast f/4 optics, adjustable focusing system, and compact design make it particularly suitable for pairing with a guide camera.

SVBONY specifies the SV165 for use with telescope systems having focal lengths of up to approximately 700mm, making it a useful option for many small and medium-sized astrophotography telescopes. Overall, the SV165 combines a simple optical design with useful mechanical features in a compact package. It is an excellent solution for astrophotographers looking for a lightweight guide scope that is easy to mount, focus, and align.
