Description
Professional-Grade Performance in a Compact, Modular Design

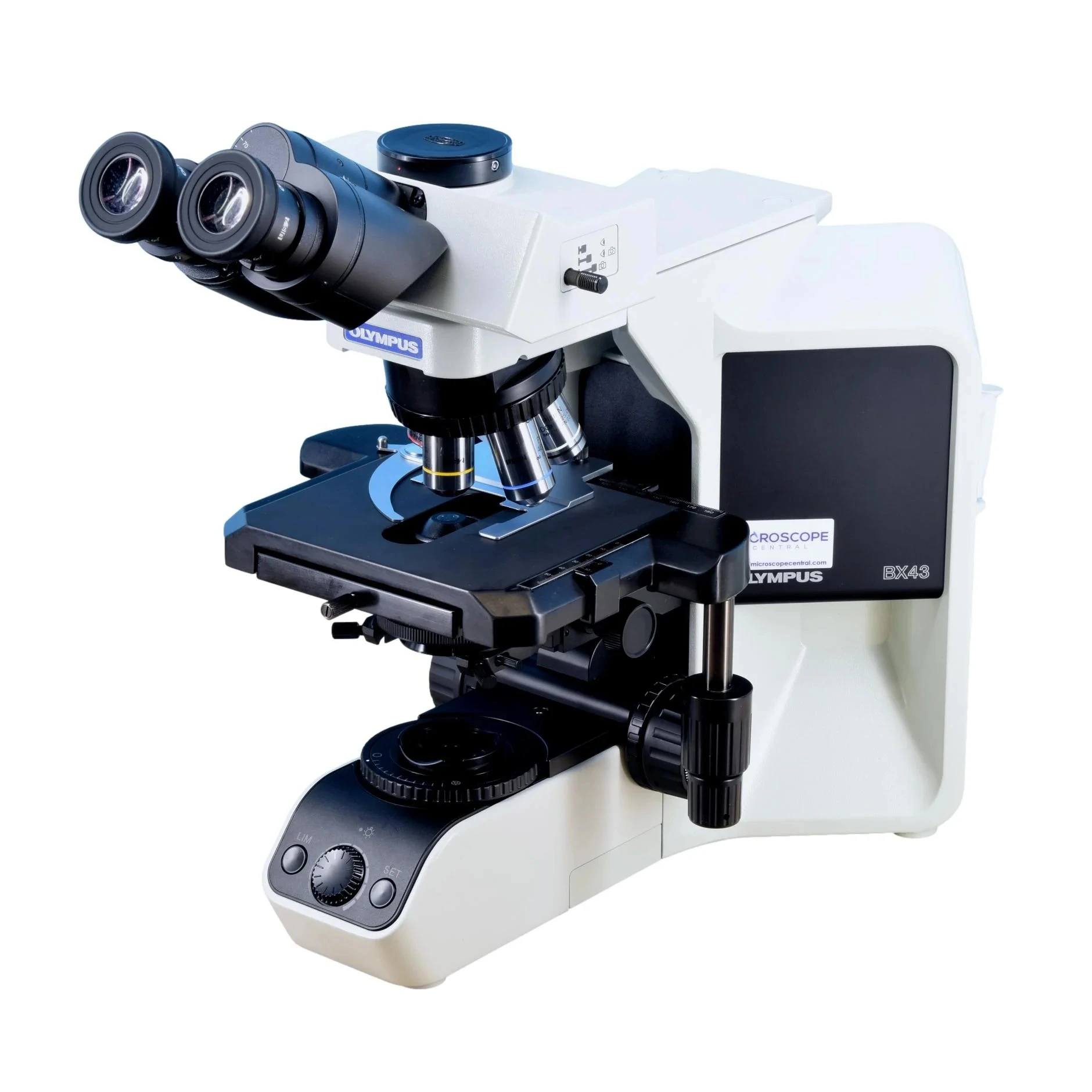

The Olympus BX43 Clinical Trinocular Microscope (BX43-T) offers exceptional optical precision and flexibility, ideal for clinical diagnostics, pathology, and research environments. Built on the robust Olympus UIS2 infinity-corrected optical system, it ensures bright, high-contrast imaging with outstanding color accuracy and flatness across the field of view.
Advanced Optical System with Trinocular Imaging Capability
Featuring a UTR30-2 trinocular viewing head, the BX43-T allows both visual observation and digital imaging through compatible microscope cameras. The WHN 10×/22 mm eyepieces provide a wide, comfortable field of view, while the five-position nosepiece holds Plan Achromat 4×, 10×, 40×, and 100× oil objectives as standard.
For even higher performance, the objectives can be upgraded to fluorite or apochromatic lenses (contact us for availability).
The Abbe condenser with an adjustable iris diaphragm offers fine illumination control, while the LED light source ensures stable, long-lasting brightness with minimal heat generation.
Smooth, Comfortable Operation
Designed for efficiency, the BX43-T includes coaxial coarse and fine focus controls for precise focusing and a right-handed mechanical XY stage with slide holder. Left-handed or plain fixed stages are available at no extra cost. The ergonomic design minimizes user fatigue, making it ideal for extended laboratory sessions.
Ready for Use and Expandable
Each BX43-T microscope is professionally serviced, cleaned, and calibrated before delivery. It ships with a power cable and dust cover, and can be further enhanced with optional accessories such as 4K digital cameras, camera adapters, and illumination modules for advanced documentation and analysis.
The Olympus BX43-T Clinical Microscope offers powerful imaging flexibility and reliable performance, making it the ideal choice for professionals who need both precision observation and digital documentation.
Related BX43 Models
Explore other configurations in the Olympus BX43 series:
Specifications
| Model Name |
Olympus BX43-T |
| Optical System |
UIS2 infinity-corrected |
| Head Type |
Olympus U-TR30-2 Trinocular Head |
| Eyepieces |
WHN 10×/22 mm FOV |
| Nosepiece |
5-position revolving |
| Objectives |
Plan Achromat 4×, 10×, 40×, 100× Oil |
| Stage |
Mechanical XY stage with slide holder |
| Condenser |
Abbe condenser with iris diaphragm |
| Focusing |
Coarse and fine coaxial control |
| Illumination |
LED with variable intensity |
| Power Supply |
AC adapter with cable |
| Accessories Included |
Dust cover, Power cable |
| Warranty |
2-year mechanical / 6-month electrical |
