ST-6S Stereo Microscope

Description

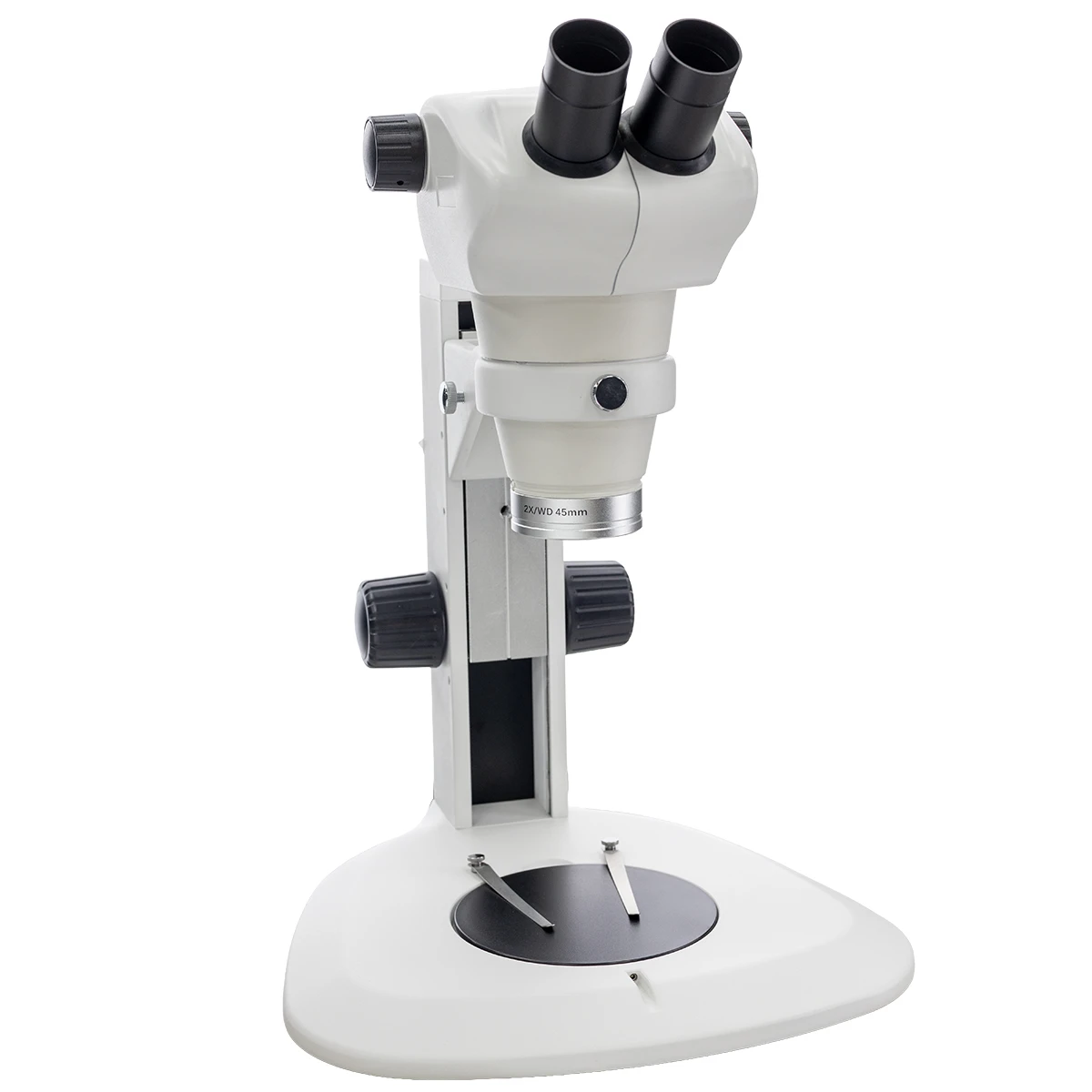

ST-6S Zoom Stereo Microscope

The ST-6S Stereo Microscope is designed for applications where clear imaging and precise control are essential. Unlike biological microscopes, which are primarily used to examine specimens on slides, this model is suitable for inspecting real objects, components, materials, and surfaces that can be observed and manipulated at the same time.

With its three-dimensional imaging, the ST-6S allows users to perceive depth and surface structures more naturally. Whether used for component inspection, precision assembly, or educational activities, it provides a practical and comfortable viewing experience.

Designed for Practical Work

One of the main features of the ST-6S is its stereo optical system. By using separate optical paths for the two eyes, it produces a three-dimensional image that provides a more natural perception of depth than a flat image.

This offers several practical advantages:

• Clear observation of surface details, heights, and depth.
• The ability to handle specimens and use tools beneath the objective lens.
• Suitability for examining solid and opaque objects, rather than focusing exclusively on thin specimens mounted on slides.

For these reasons, stereo microscopes are widely used in electronics repair, technical work, and practical education.

Performance and Features

Three-Dimensional Optical Viewing

The binocular head provides comfortable viewing and a natural perception of depth. This is particularly useful for precision tasks such as soldering, specimen dissection, and examining textured or uneven surfaces.

Continuous Zoom Magnification

The ST-6S features a continuous zoom system with a magnification range of 0.8×–5× and a 6.3:1 zoom ratio. With standard WF10X eyepieces, the microscope provides a magnification range of 8×–50× without an auxiliary objective lens.

This system allows users to adjust magnification according to the specimen size and level of detail required, without changing the eyepieces each time magnification is adjusted.

Suitable Working Distance

Working distance is the space between the objective lens and the specimen when the image is in focus. It is particularly important for applications that require users to observe and manipulate specimens simultaneously.

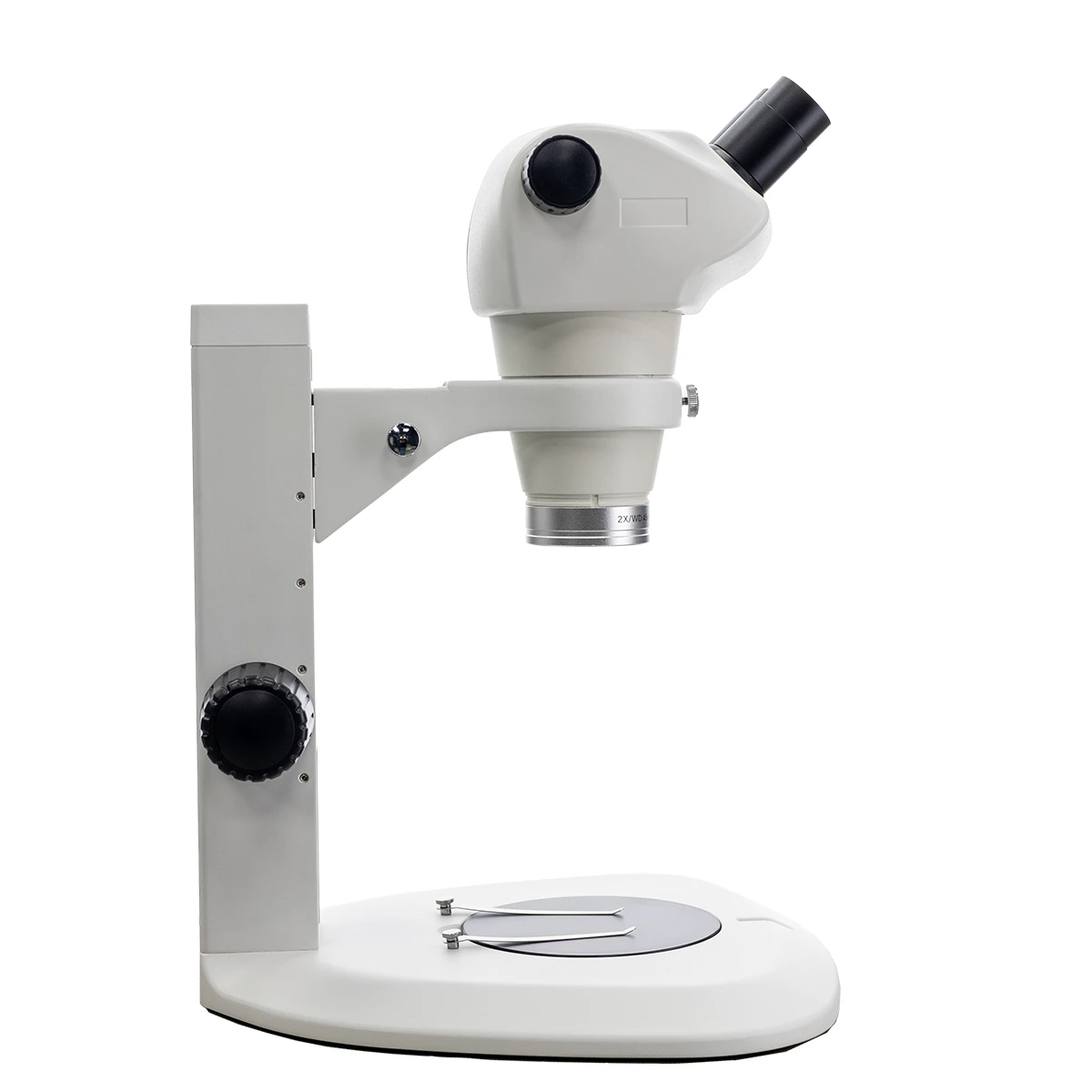

With the 2X auxiliary objective lens installed, the ST-6S has a working distance of approximately 45 mm. This is suitable for examining small components, performing precision tasks, and observing fine details at close range.

Illumination System

The appropriate illumination depends on the type of specimen and its surface. Reflected illumination is useful for examining opaque objects, metal components, and non-transparent surfaces, while transmitted illumination is suitable for specimens through which light can pass.

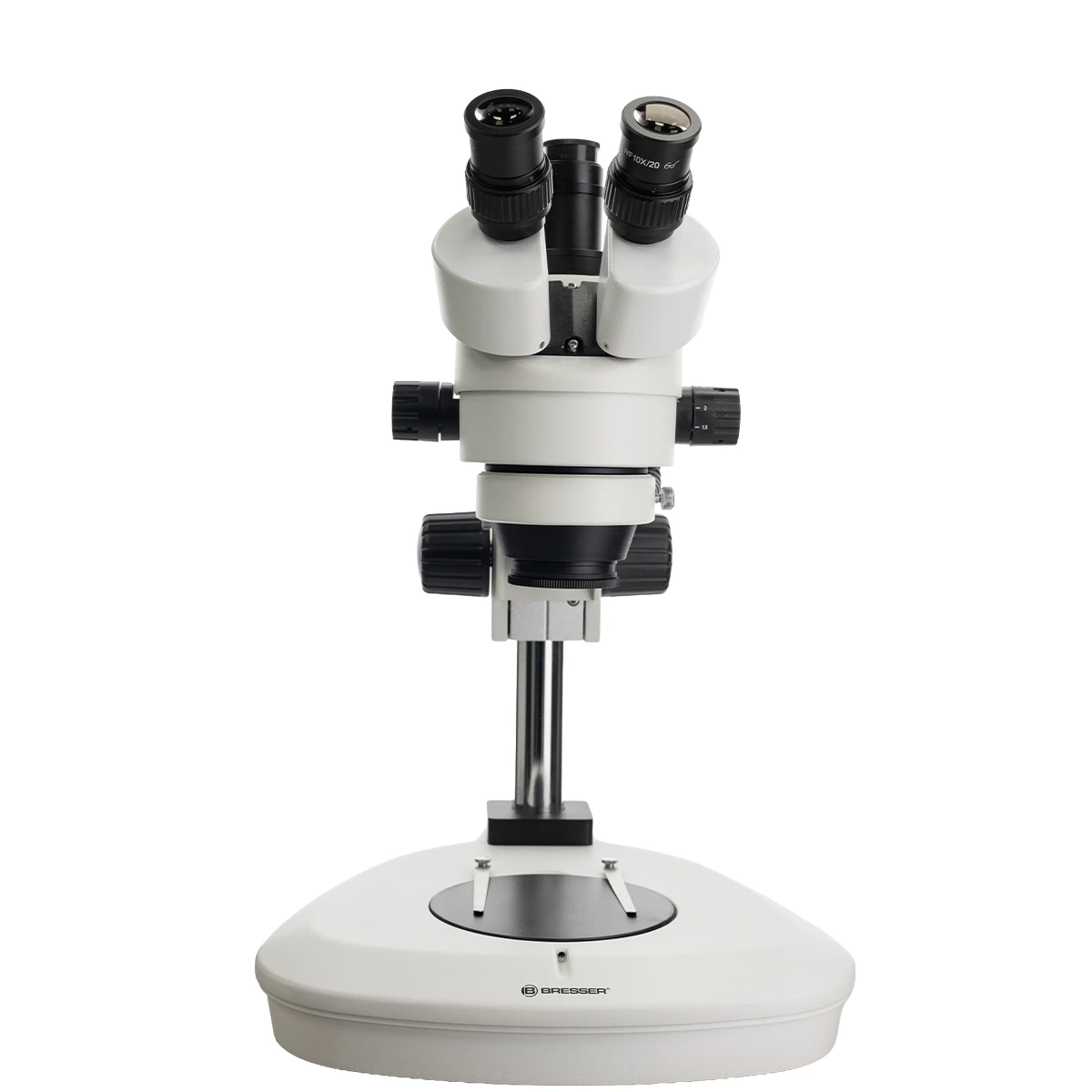

The ST-6 series supports different stand and illumination configurations. The available stand and illumination system depend on the selected configuration.

Designed for Everyday Use

The microscope is designed for use in technical, workshop, and educational environments. Its focusing mechanism allows users to adjust the position of the optical assembly to bring specimens into focus.

The controls are straightforward to use, making the microscope suitable for both beginners and experienced users who need to examine and inspect specimens.

Applications of the ST-6S Stereo Microscope

The ST-6S is suitable for applications that require detailed observation and convenient access to the specimen, including:

• Electronics Repair and PCB Inspection: Examining small electronic components, connections, and solder joints.
• Jewelry and Gemstone Inspection: Observing surface details and visible characteristics.
• Educational Laboratories: Demonstrating and examining specimens during practical activities.
• Industrial Inspection and Quality Control: Inspecting component surfaces and identifying visible defects.
• Watchmaking and Precision Mechanical Work: Examining and handling small components.
• Basic Biological Dissection: Examining specimens that benefit from three-dimensional viewing.

Overall, this microscope is suitable for tasks that require detailed observation while allowing users to work directly on the specimen.

Who Is the ST-6S Suitable For?

The ST-6S Stereo Microscope can be a practical choice for:

• Students and teachers who need a microscope for hands-on learning and demonstrations.
• Technicians and engineers who work with small components and assemblies.
• Jewelers and watchmakers who need to inspect fine details.
• Laboratories that perform surface inspection and specimen examination.
• Workshops and businesses that require a practical microscope for everyday tasks.

If your work involves inspecting, repairing, or assembling small components, the ST-6S continuous zoom system and three-dimensional viewing can help you perform these tasks more precisely.

Why Choose the ST-6S Stereo Microscope?

• True Three-Dimensional Viewing: Provides a better perception of depth and object shape for precision work.
• Continuous Zoom System: Allows magnification to be adjusted without changing eyepieces.
• 16×–100× Magnification with the 2X Auxiliary Objective: Suitable for examining finer details.
• Approximately 45 mm Working Distance with the 2X Objective: Supports close-range specimen inspection.
• Easy Operation: Straightforward magnification and focusing adjustments for everyday use.

Note on Optional Accessories

The stand, illumination system, and other accessories may vary depending on the microscope configuration and store availability. Please contact the store to confirm which accessories are included with the unit.
