ZWO EAFN/EAF Pro Electronic Automatic Focuser

Description

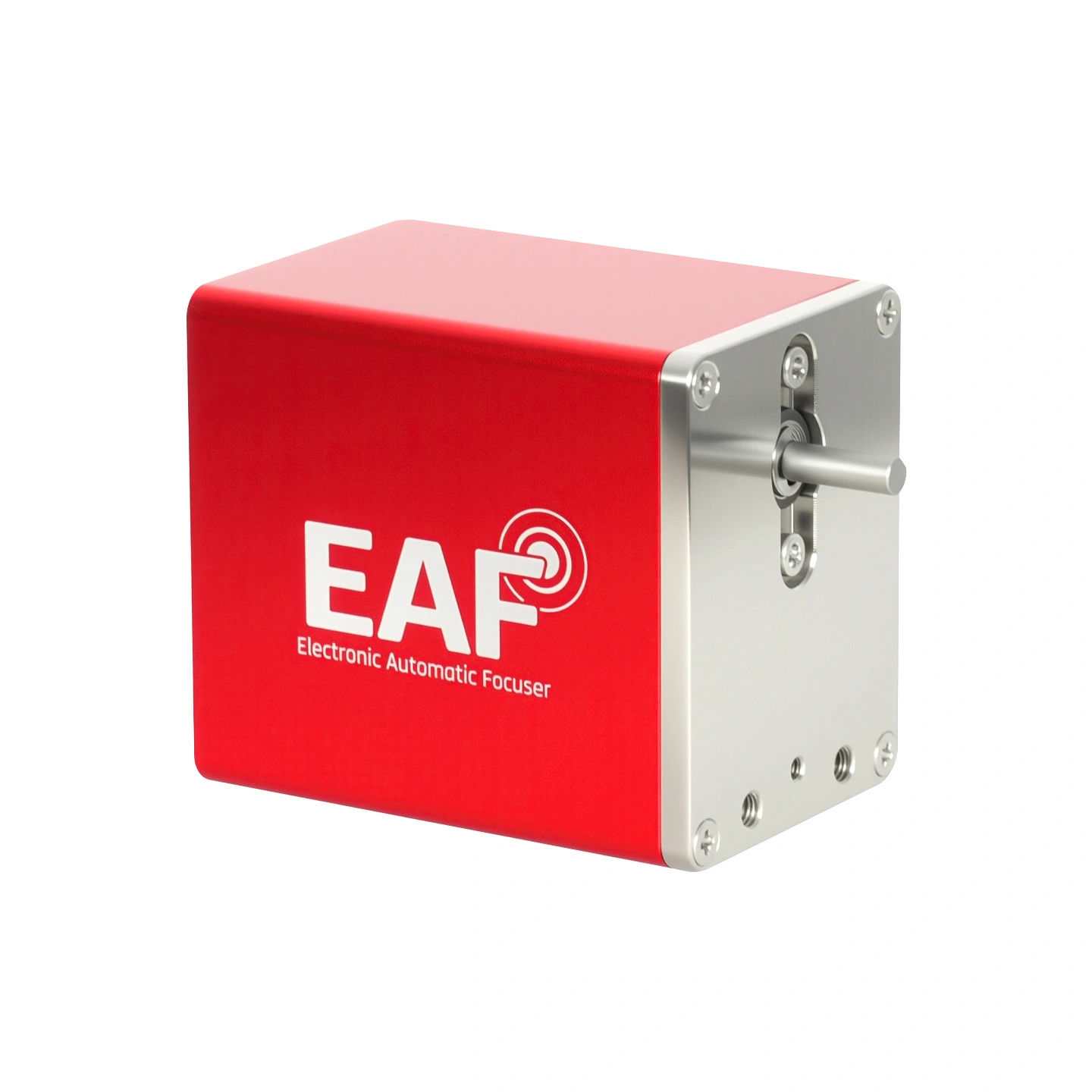

ZWO EAFN Electronic Automatic Focuser

Accurate focusing is one of the most critical factors in successful astronomical imaging. Even the smallest focus error can significantly reduce image sharpness, especially when working with modern high-resolution cameras, fast optical systems, and long focal lengths. The ZWO EAFN Electronic Automatic Focuser is designed to solve this problem by providing precise, repeatable, and fully automated focusing control for a wide range of telescopes and focusers.

The EAFN is the latest USB-C version of ZWO’s well-proven Electronic Automatic Focuser. It retains the mechanical strength and precision of the original design while offering improved connectivity and compatibility with modern astrophotography setups. Whether you are operating a fully automated imaging system or simply want more accurate and comfortable focusing, the ZWO EAFN is a reliable and highly capable solution.

Precision Motor Control

At the heart of the ZWO EAFN is a high-precision stepper motor with a 7.5° step angle combined with a 1:128 reduction gearbox. This configuration allows the focuser to deliver extremely fine motion control with excellent torque. Each step corresponds to micron-level movement, enabling very small and precise focus adjustments that are essential for astrophotography.

This high resolution makes the EAFN particularly well suited for critical focus tasks such as narrowband imaging, fast optical systems, and high-pixel-density cameras where depth of focus is very shallow. The smooth and controlled motion also minimizes backlash and helps maintain consistent focus positions between imaging sessions.

High Load Capacity and Robust Construction

The ZWO EAFN is built to handle demanding imaging setups. With a maximum payload capacity of 5 kg, it can easily drive focusers carrying heavy imaging trains, including cooled cameras, filter wheels, off-axis guiders, and other accessories. This makes it suitable not only for small refractors, but also for larger refractors, Schmidt-Cassegrain telescopes, and many Newtonian systems when properly installed.

The housing is made from solid metal, providing excellent durability and mechanical stability. The compact and rigid design helps reduce vibrations during focusing operations, which is especially important for long-exposure astrophotography. The robust construction ensures reliable performance even during extended imaging sessions and frequent focus adjustments.

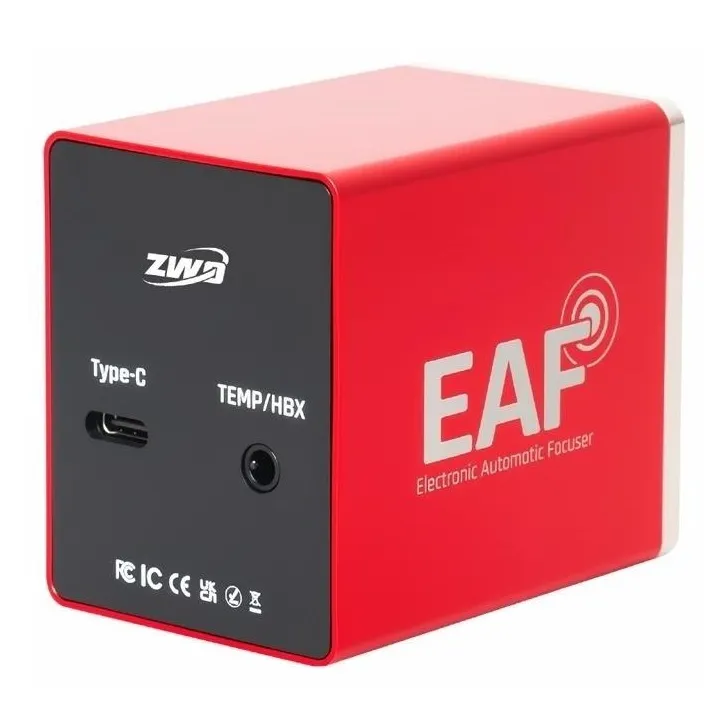

USB Type-C Connectivity

The EAFN uses a USB Type-C port for both power and data communication. This modern interface offers improved reliability and easier cable management compared to older USB standards. Power is supplied directly through the USB connection, eliminating the need for an external power adapter. Typical power requirements are modest (5V, 500 mA), making it compatible with laptops, mini PCs, and dedicated astrophotography controllers.

Using a single USB-C cable simplifies system wiring and reduces the number of cables that can snag or interfere with telescope movement. This is especially beneficial for portable setups or remote observatories where clean and reliable cable routing is essential.

Broad Software Compatibility

The ZWO EAFN is fully compatible with ZWO’s own software ecosystem, including the ASIAIR App and ASIStudio, allowing seamless integration into ZWO-based imaging systems. When used with ASIAIR, the EAFN supports automated focusing routines, temperature compensation, and remote control via mobile devices or tablets.

In addition, the EAFN supports ASCOM and INDI protocols, making it compatible with a wide range of third-party astrophotography software. Popular applications such as N.I.N.A., Sequence Generator Pro, SharpCap, Maxim DL, TheSkyX, Nebulosity, FireCapture, and FocusMax can all control the EAFN for manual or fully automated focusing. This wide compatibility ensures that the EAFN can be integrated into almost any imaging workflow.

Automation and Temperature Compensation

One of the key advantages of an electronic focuser is the ability to automate focus adjustments during the night. As ambient temperature changes, telescope optics and mechanical components expand or contract, causing focus drift. The ZWO EAFN supports the use of an optional temperature sensor, allowing software to automatically compensate for temperature changes and maintain optimal focus throughout the session.

This feature is particularly valuable for long imaging runs, time-lapse projects, and unattended or remote observatories, where manual refocusing is impractical. By maintaining consistent focus, the EAFN helps improve image quality and reduces the need to discard data due to focus errors.

Flexible Installation and Compatibility

The ZWO EAFN is supplied with a universal mounting bracket and a flexible shaft coupler, allowing it to be installed on many common telescope focusers. The flexible coupler helps accommodate slight misalignments and ensures smooth power transmission without placing undue stress on the focuser shaft.

ZWO and third-party manufacturers also offer additional brackets for specific focuser models, further expanding compatibility. This flexibility makes the EAFN suitable for a wide range of telescopes, from small portable systems to more advanced imaging platforms.

Practical Benefits for Astrophotographers

By replacing manual focusing with precise electronic control, the ZWO EAFN significantly improves both convenience and consistency. Focus can be adjusted remotely without touching the telescope, eliminating vibrations and reducing setup disturbances. Automated focusing routines save time, improve repeatability, and allow imagers to concentrate on data acquisition rather than constant manual adjustments.

For both beginners and experienced astrophotographers, the EAFN represents a practical upgrade that enhances overall system performance. Its combination of precision, reliability, and software compatibility makes it an excellent choice for modern astrophotography setups.

Conclusion

The ZWO EAFN Electronic Automatic Focuser is a powerful and reliable focusing solution designed for precision astronomical imaging. With its high-resolution stepper motor, strong load capacity, USB-C connectivity, and broad software support, it delivers accurate and repeatable focus control across a wide range of telescopes. Whether used in a portable setup or a permanent observatory, the EAFN helps ensure sharp, consistent results and a more efficient imaging experience.

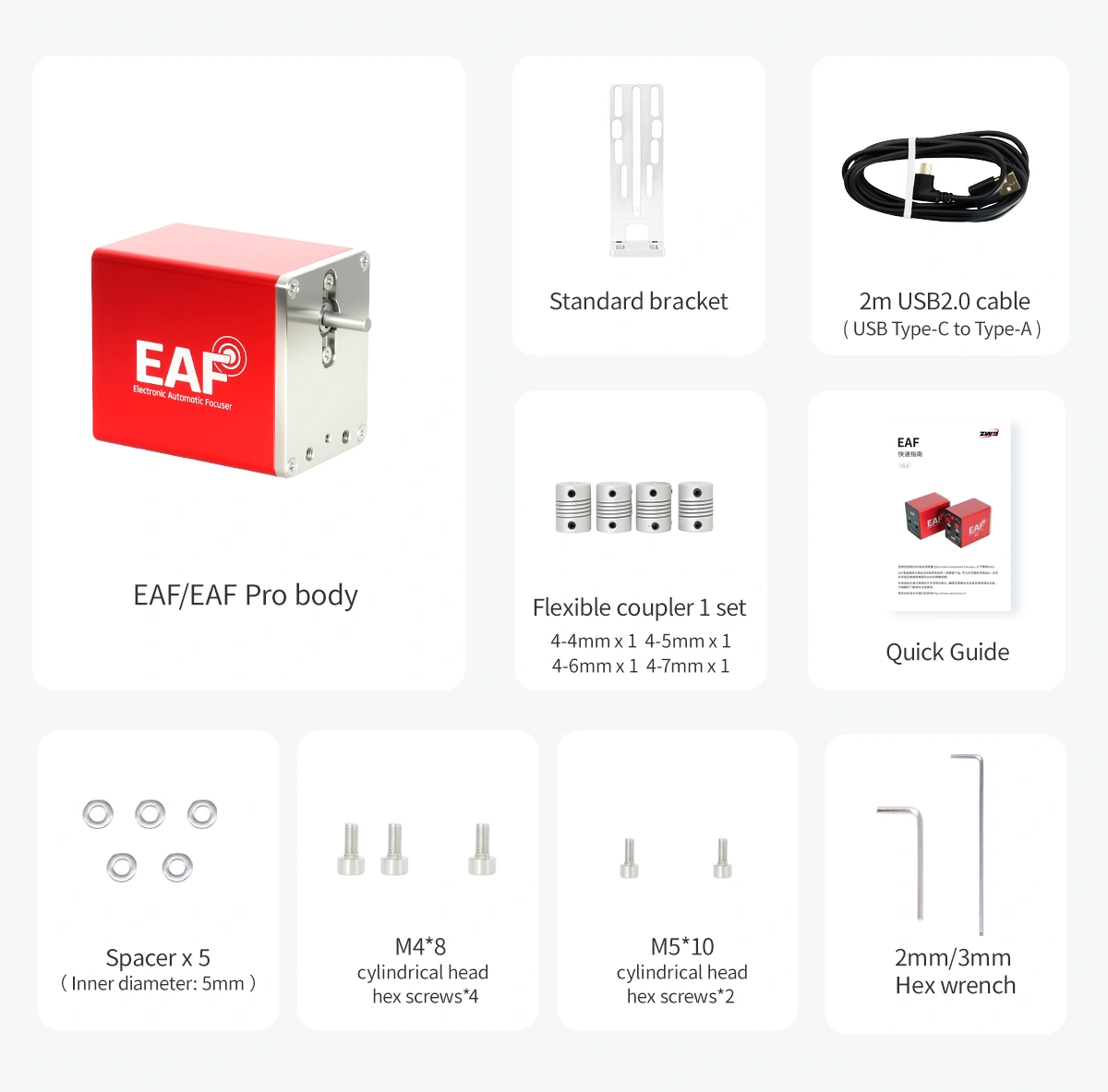

What is in the Box?

ZWO EAFN vs ZWO EAF Pro – Specification Comparison

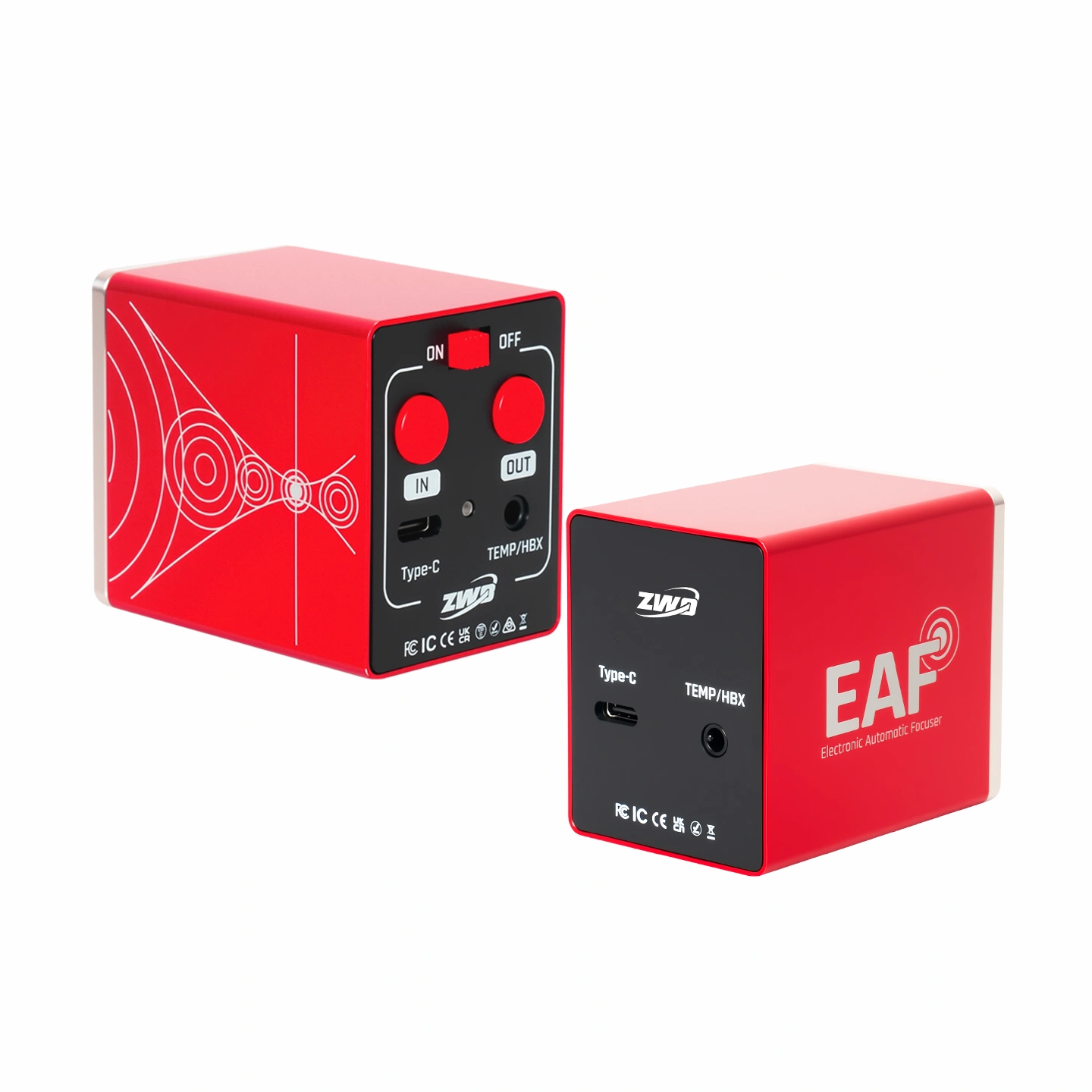

Key Differences Between ZWO EAFN and ZWO EAF Pro

The ZWO EAFN and ZWO EAF Pro share the same core focusing performance. Both use the same stepper motor, offer identical resolution, support the same payload capacity, and are compatible with the same software platforms. In terms of focusing accuracy and mechanical capability, there is no difference between the two models.

The main differences are related to power, control, and convenience features. The EAF Pro includes a built-in battery, allowing it to operate without continuous USB power, while the EAFN relies entirely on USB-C for power. In addition, the EAF Pro offers Bluetooth connectivity, enabling wireless control, whereas the EAFN is USB-only.

The EAF Pro also features physical controls on the body, including a focus button, power switch, and status indicator light. These are not present on the EAFN, which is designed as a simpler, cable-powered unit. As a result, the EAF Pro is slightly larger and heavier.

In summary, EAFN is ideal for users who want a simpler, lighter, and more affordable automatic focuser for USB-based setups, while EAF Pro is better suited for those who prefer wireless operation, onboard controls, and battery-powered flexibility, especially in portable or cable-restricted environments.
