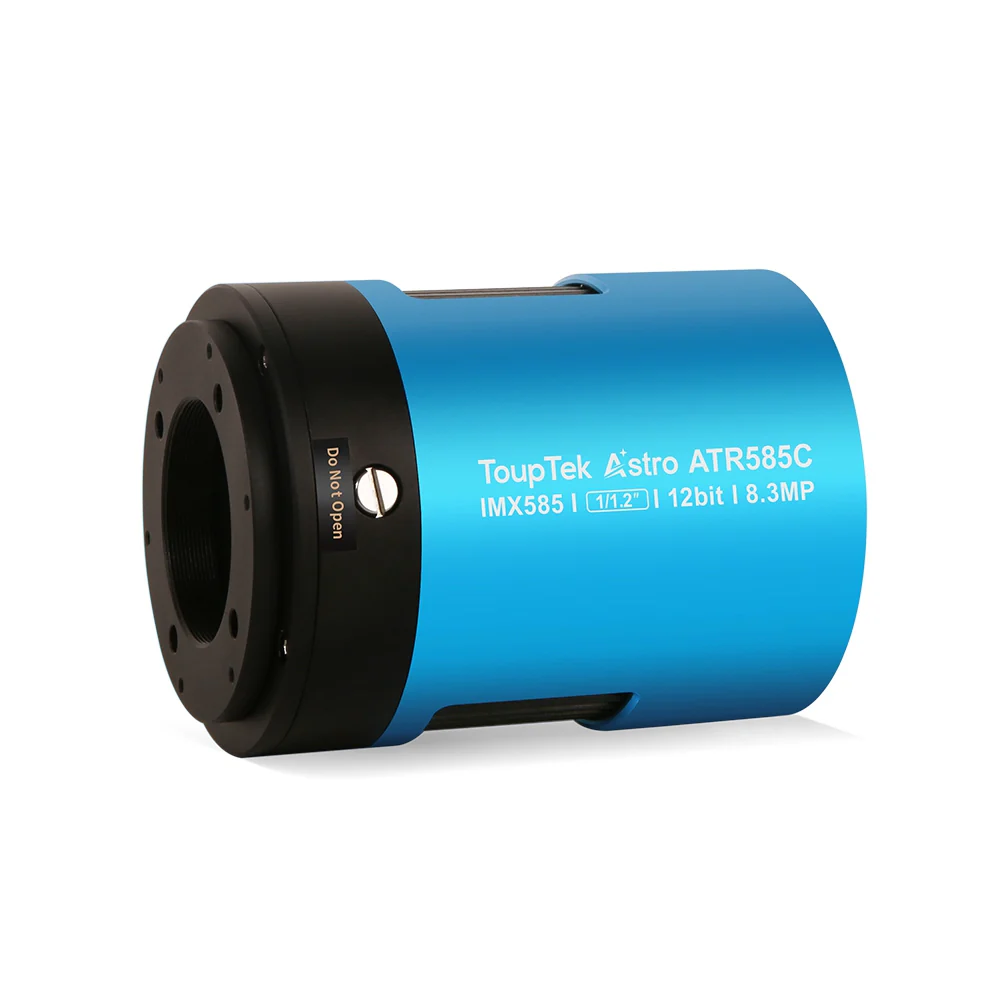

ToupTek ATR585C Color Astronomy Camera

Product Code: ATR3CMOS08300KPA

Rated 0 out of 5

0 reviews

AED 2,210.00

Available on backorder

Lead time delivery: 14 - 30 days

Manufacturer: ToupTek

Key Features

8.3 MP Sony IMX585 back-illuminated CMOS sensor with 2.9 µm pixels
Two-stage TEC cooling up to -45°C below ambient for long exposures
Low read noise for high image quality
Large full-well capacity (~40,000 e-) with excellent dynamic range (~85 dB)
High frame rates: up to 47 fps (8-bit) at full resolution over USB 3.0
Near-zero amp-glow design for clean long-exposure images
Built-in anti-dew heater with adjustable power levels
512 MB DDR3 memory buffer for stable, loss-free data transfer
AR-coated protective window with optional IR-cut filter
USB 3.0 data interface and integrated USB 2.0 hub for accessories
12V DC power input for cooling and stable operation
Compact, robust design with M42 × 0.75 mount thread

Description

ToupTek ATR585C Color Astronomy Camera incorporates the advanced SONY IMX585 sensor, renowned for its exceptional imaging capabilities for both planetary and deep-sky objects. Engineered with an integrated heat dissipation structure and an efficient cooling module, it enables the image sensor to function at a temperature 45℃ lower than the ambient environment. With features including zero amp-glow, a minuscule pixel size, and a high dynamic range (HDR) mode. This camera is ideal for entry-level deep space photography, offering outstanding performance at a remarkably cost-effective price point.

Please remember: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.

STARVIS 2

STARVIS refers to the backlight image sensor technology developed by Sony to improve low light characteristics and near-infrared sensitivity. STARVIS 2 improves dynamic range and near-infrared sensitivity compared to STARVIS1. Benefiting from it, ATR585C shows better performance.

Sensor Information

ATR585C is a 1/1.2-inch optical format, 8.3-megapixel CMOS image sensor with a pixel size of 2.9um. It offers high clarity and low-noise performance.

DDR3

ATR585C camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission.

Two stage TEC cooling system

ATR585C is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR585C features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 45 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.

Zero Amp-Glow

ATR585C has been carefully designed and is able to achieve zero amp-glow photo shooting. This not only greatly reduces the generation of internal glow, but also effectively suppresses the interference of external light. It also enhances the stability and durability of the camera, which means you'll be able to capture sharper, cleaner images in both long and high exposure modes.

Anti-dew technology

ATR585C adopts the new anti-dew technology, which can effectively solve the condensation problem through heating. This heating function consumes about 5 watts, which can be turned off via software to save power. Additionally, the dew heater at the protection window has 4 adjustable levels, allowing users to find the heating power that best suits their needs.

Mechanical Diagram

Connection with Accessories

Packaging List

To view images taken with the ToupTek ATR585C Color Astronomy Camera and other specialized astronomical equipment, click the link below:
ToupTek ATR585C - AstroBin
