MAGUS LED 144-S4 Ring Light with Sector Control
Available on backorder
Key Features
- 144 high-brightness LEDs with adjustable intensity
- Four independently controlled lighting sectors for flexible illumination
- Two operating modes: shadowless and oblique lighting
- Remote control with sector and brightness adjustment
- Durable aluminum body for professional and long-term use
Description
Precision Illumination for Stereomicroscopes

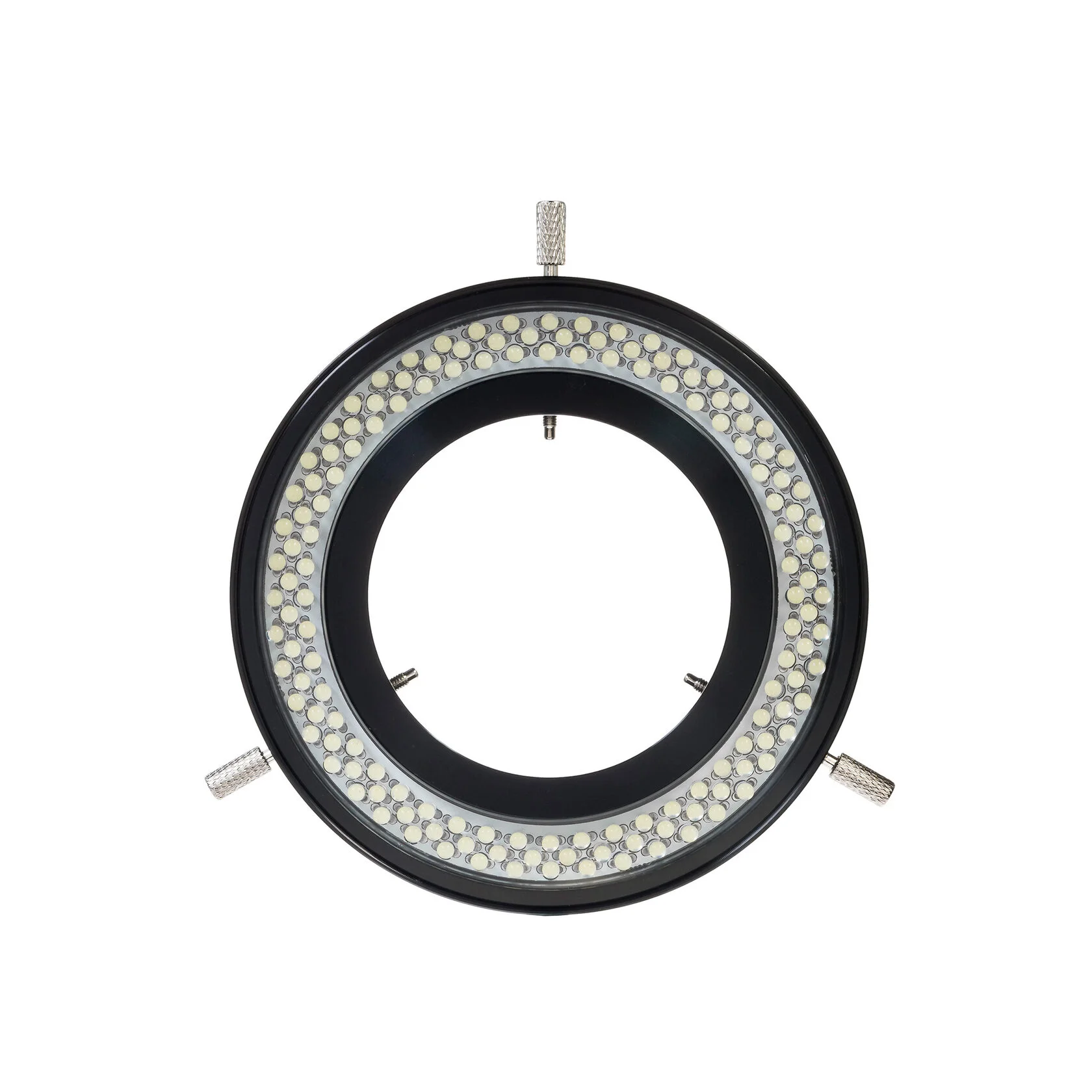

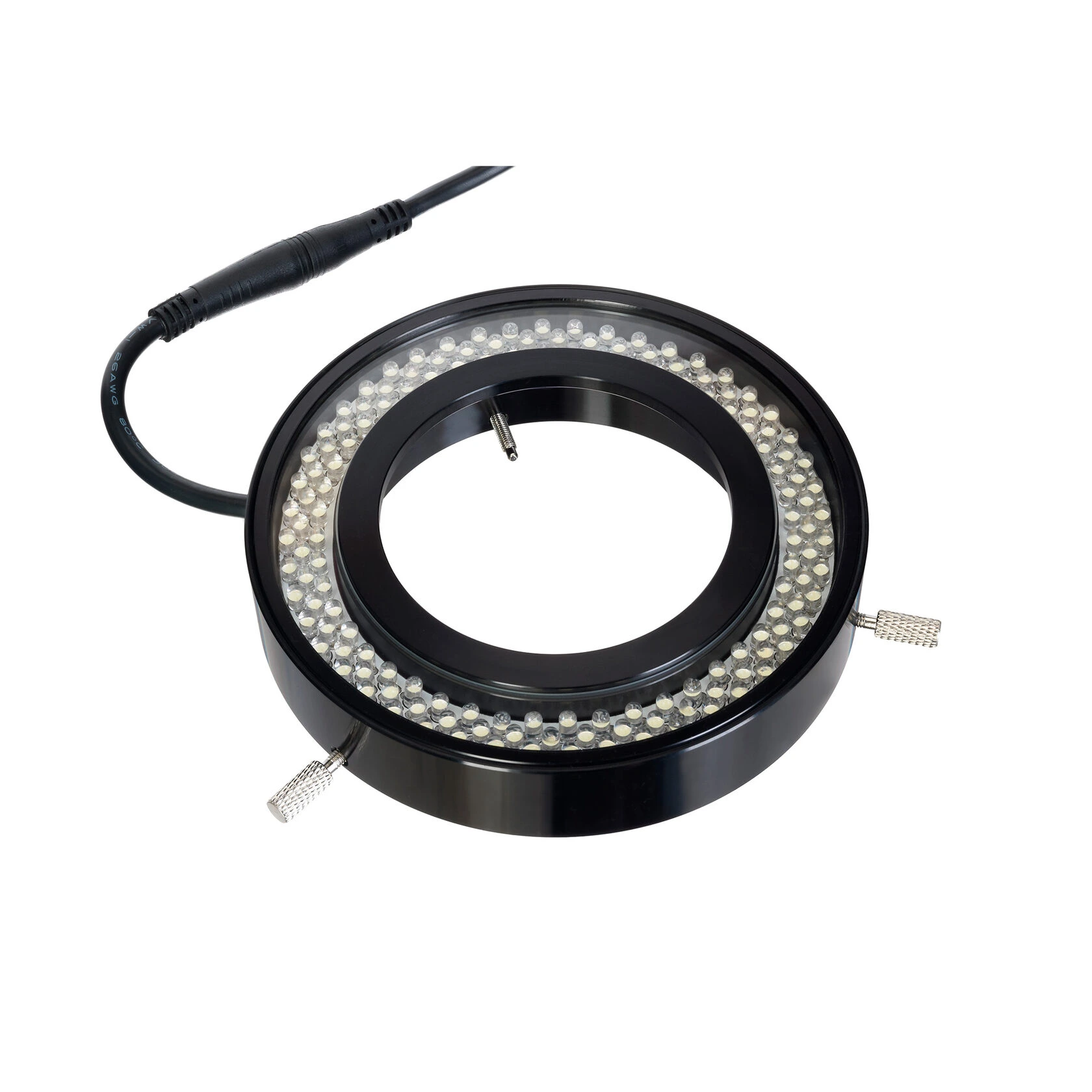

The MAGUS LED 144-S4 Ring Light is a professional-grade illumination system designed to deliver uniform, adjustable lighting for stereomicroscopes. Equipped with 144 high-intensity LEDs arranged in four independently controlled sectors, it provides flexible lighting modes suited for a wide range of microscopy tasks — from shadow-free inspection to oblique illumination for enhanced surface contrast.
This illuminator is ideal for observing relief objects, reflective surfaces, and electronic components, offering stable, flicker-free light that enhances image clarity and color accuracy.
Dual Illumination Modes for Maximum Versatility
Shadowless Mode

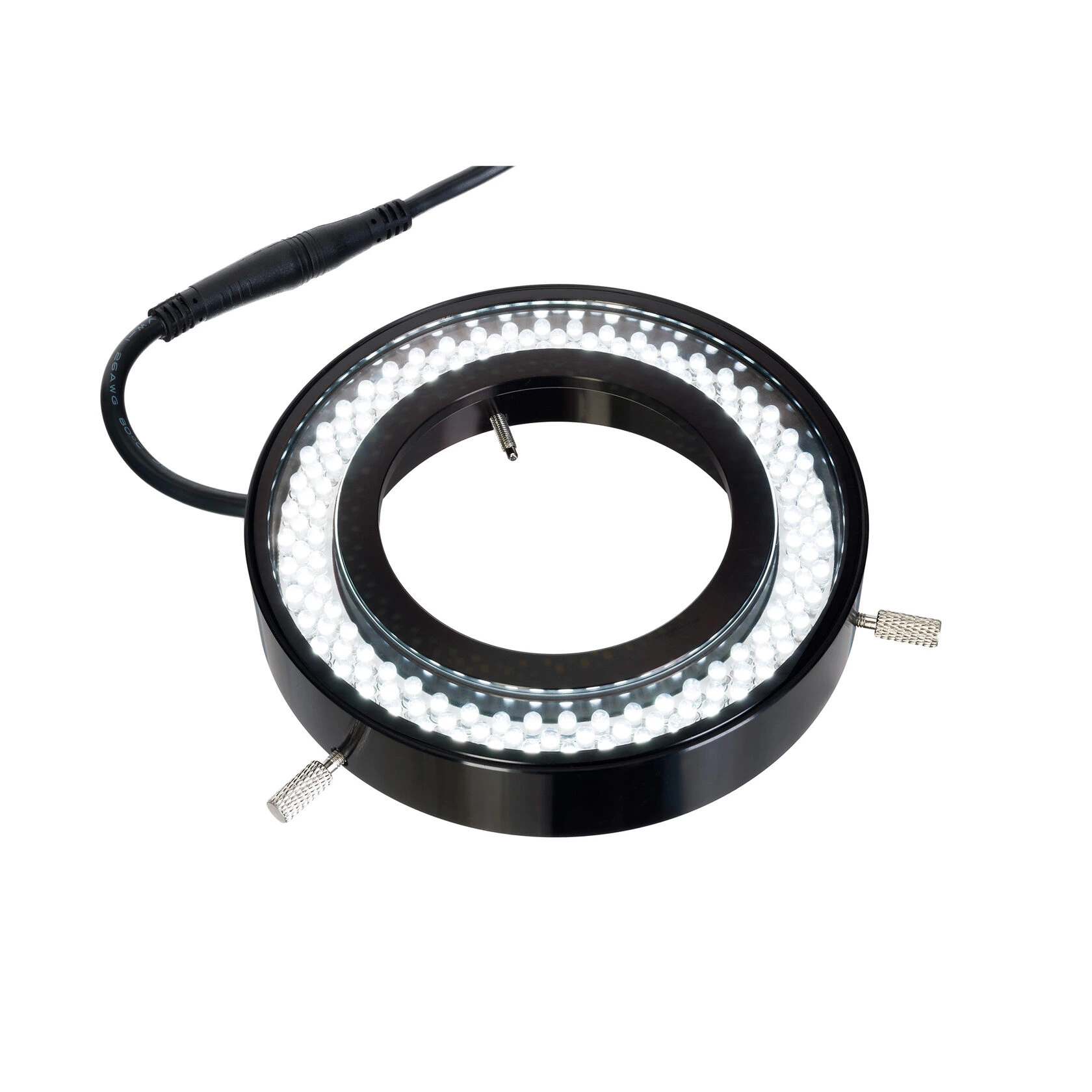

When all four lighting sectors are activated simultaneously, the MAGUS LED 144-S4 produces uniform, shadow-free illumination, ensuring even lighting across the entire field of view — perfect for detailed examination of complex structures.
Oblique Mode

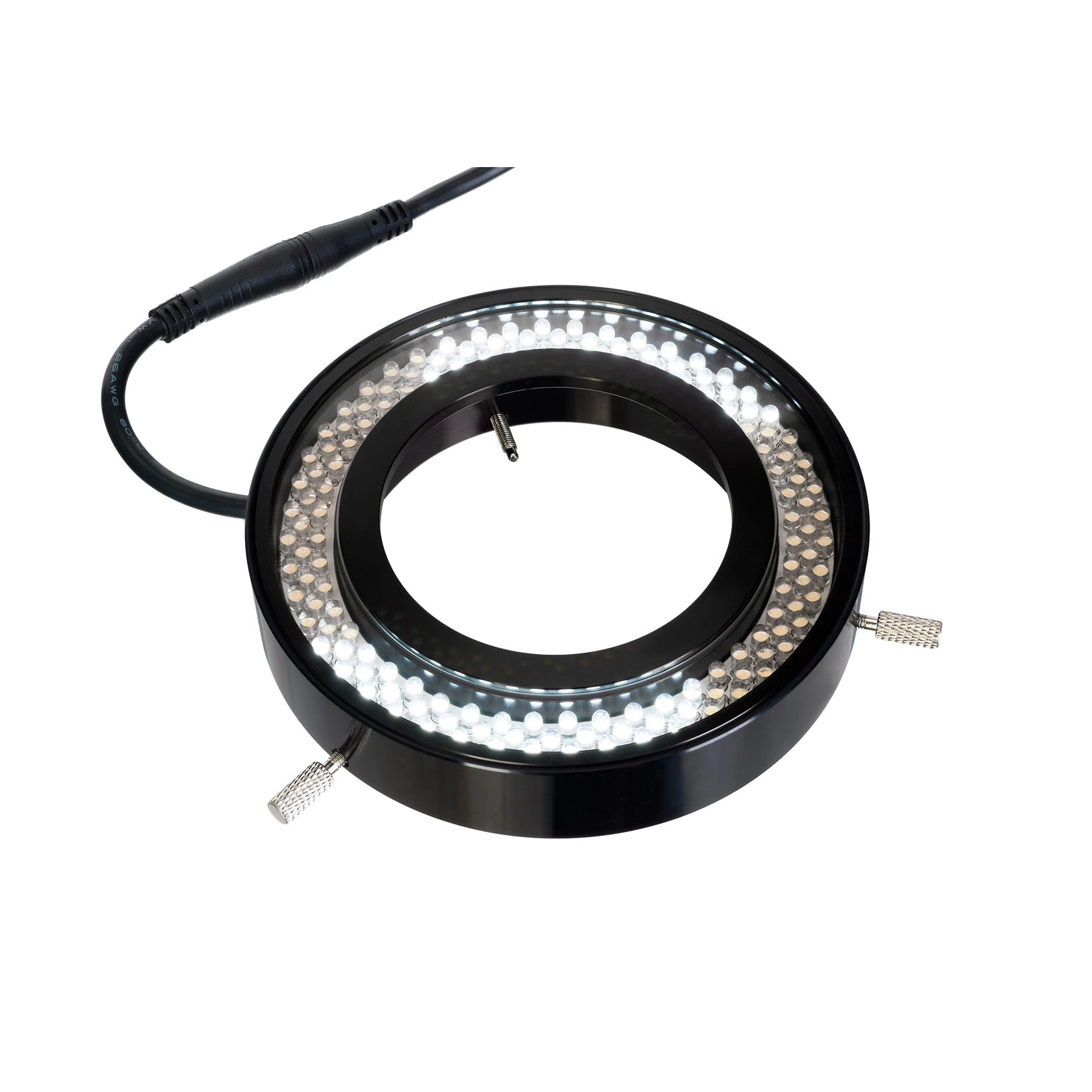

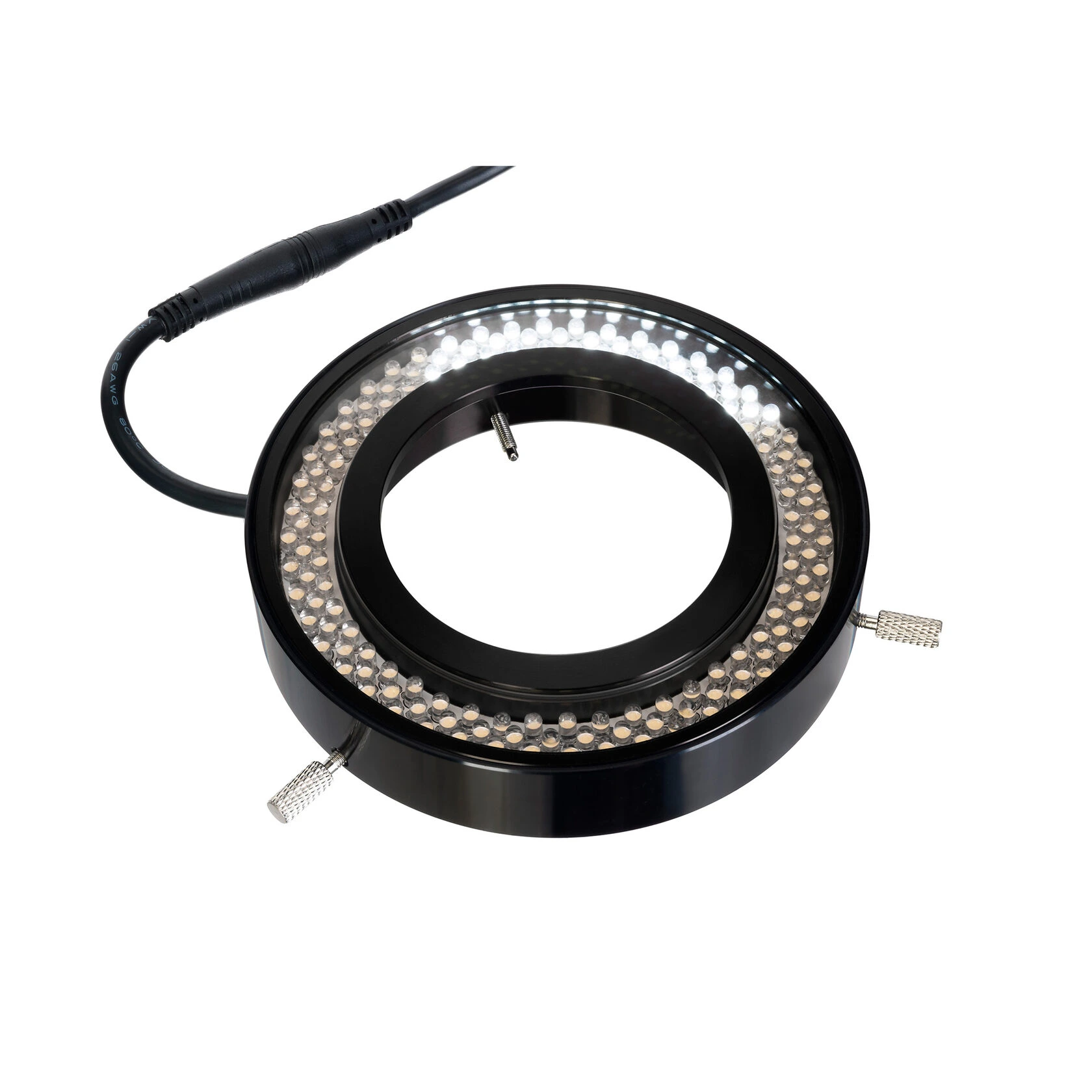

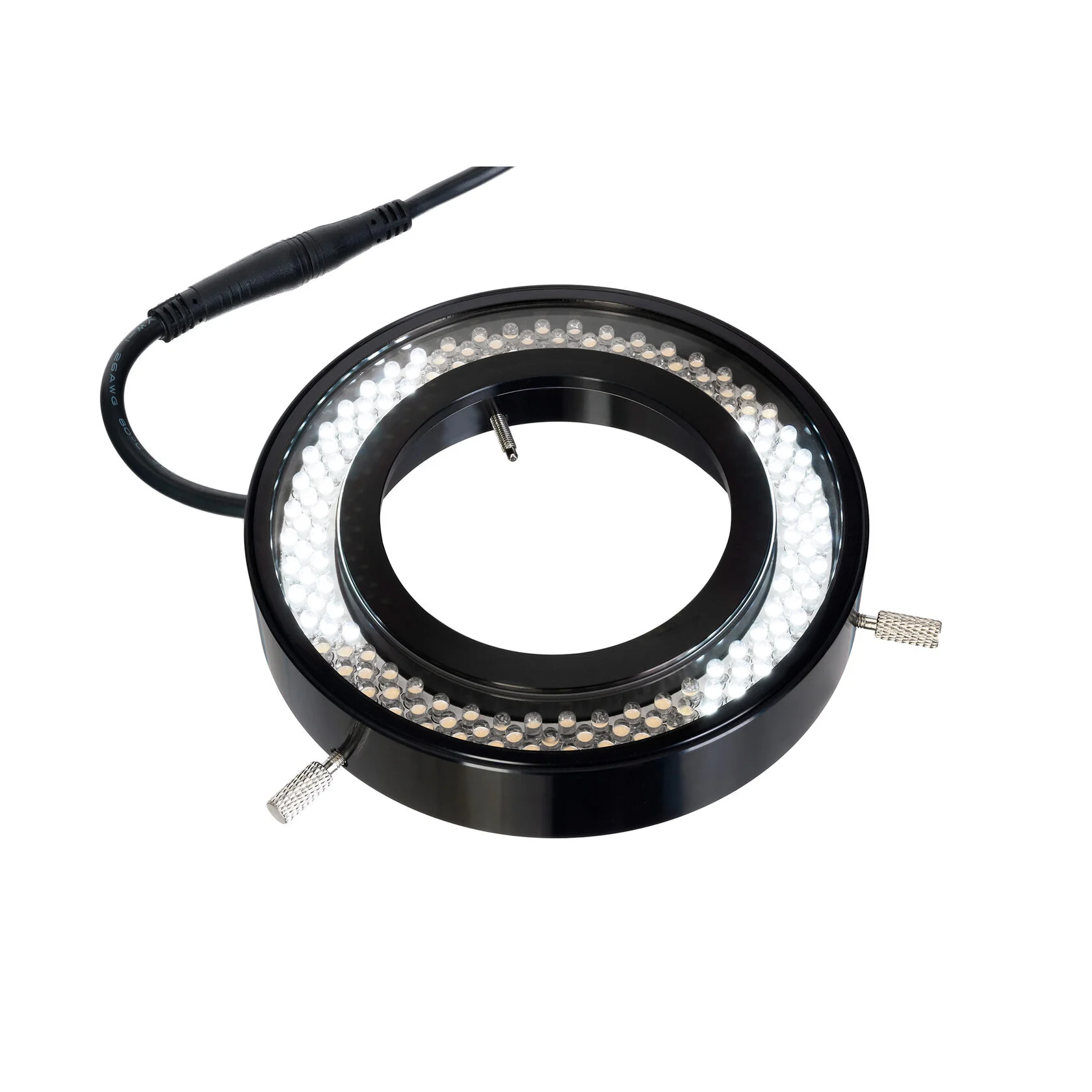

By activating only one or two sectors, the illuminator provides angled or oblique lighting, highlighting surface textures and contours. This mode is particularly valuable for quality control, PCB inspection, and materials analysis, where subtle details must be visible.
Easy and Intuitive Control

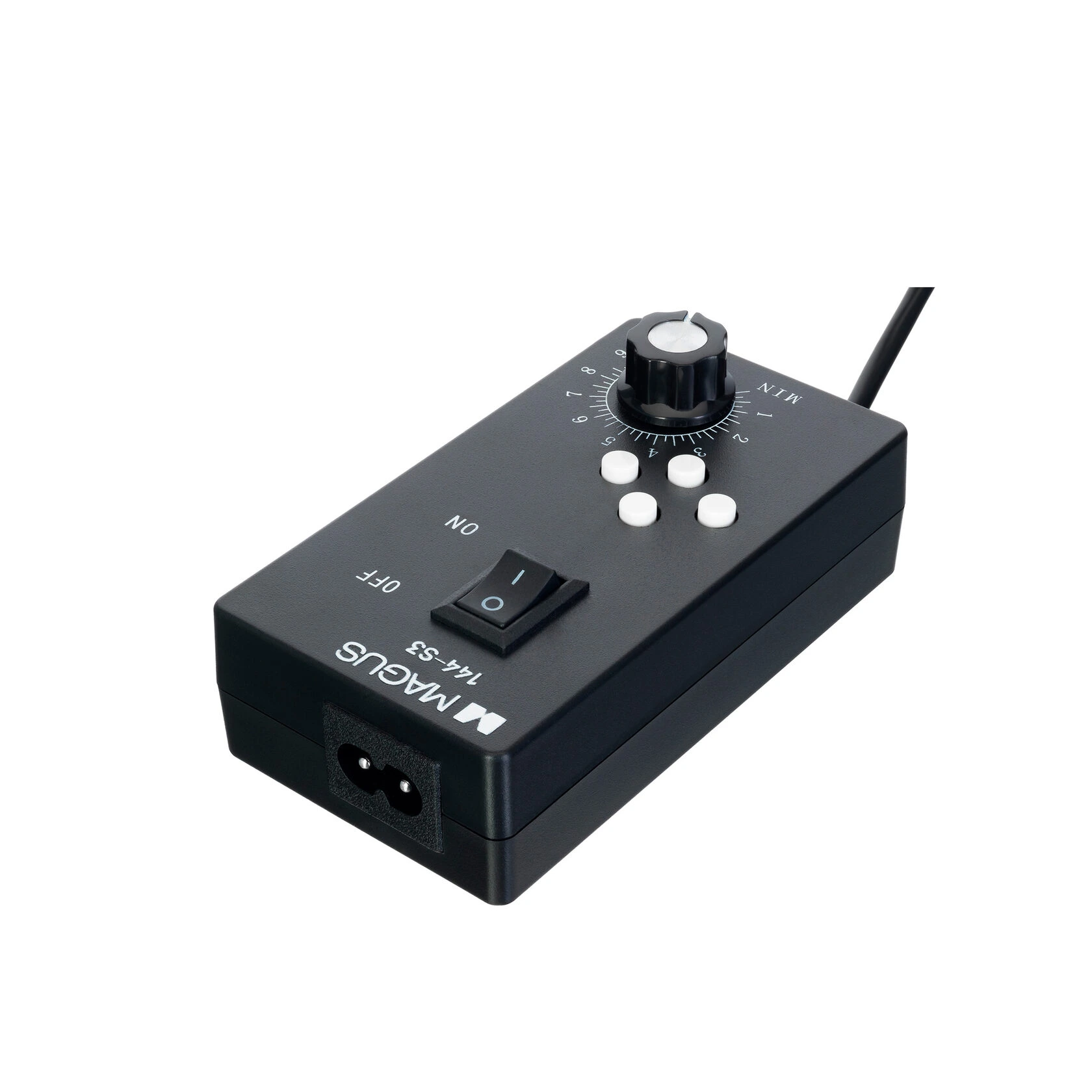

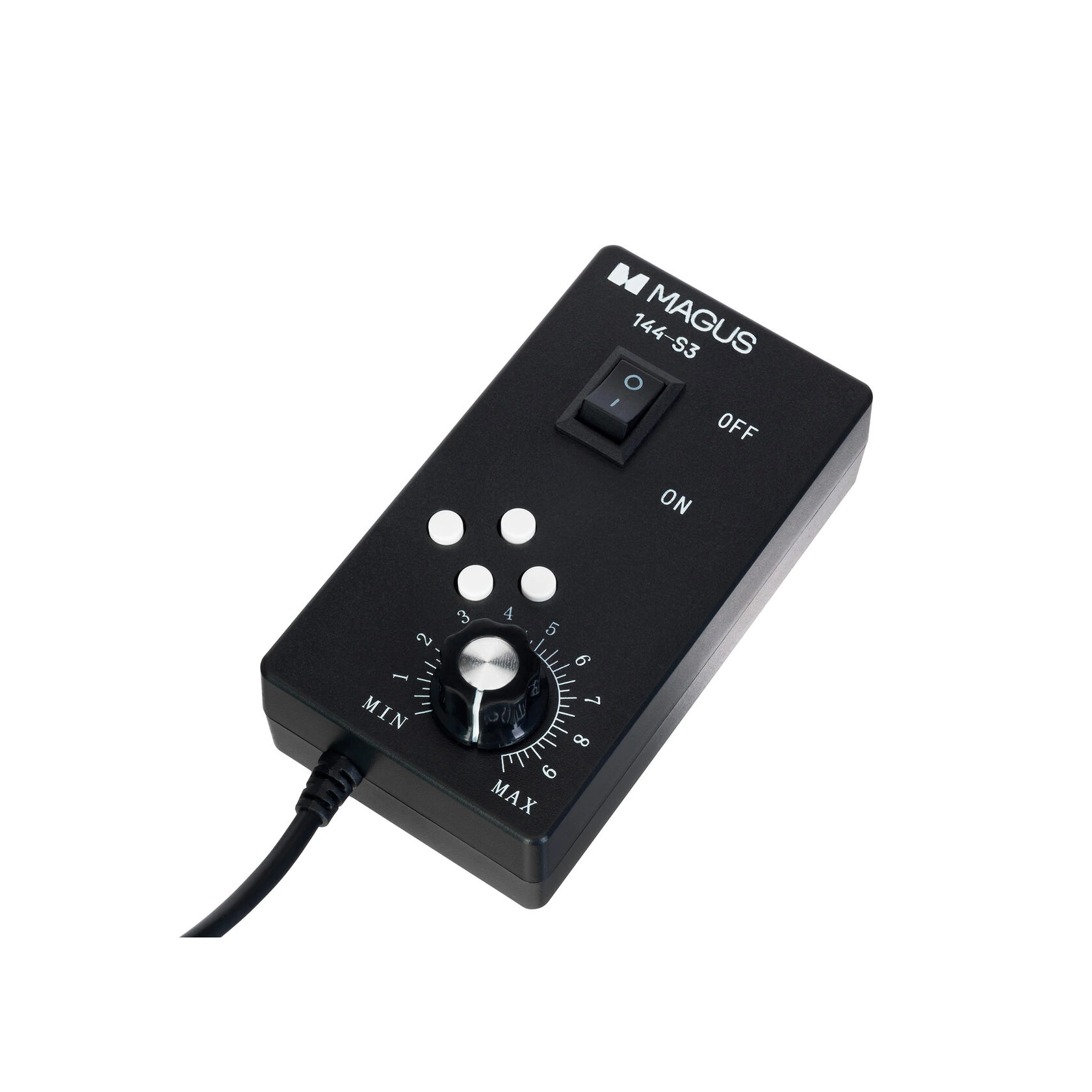

The system includes a remote control unit for effortless operation. Buttons allow the user to select and activate specific lighting sectors and the rotary brightness control ensures smooth adjustment of light intensity, allowing users to tailor illumination precisely to the sample’s reflective properties.
Durable and Functional Design

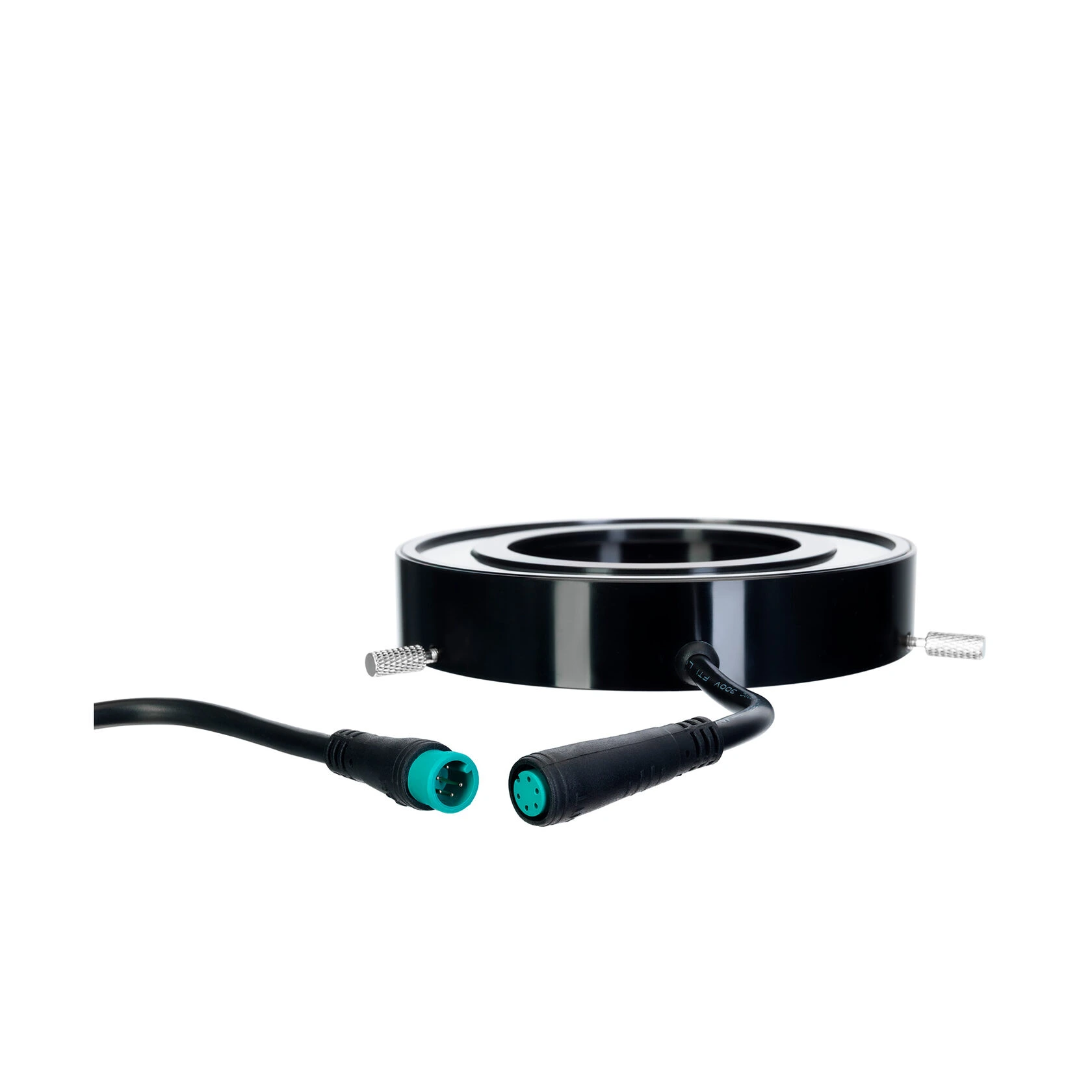

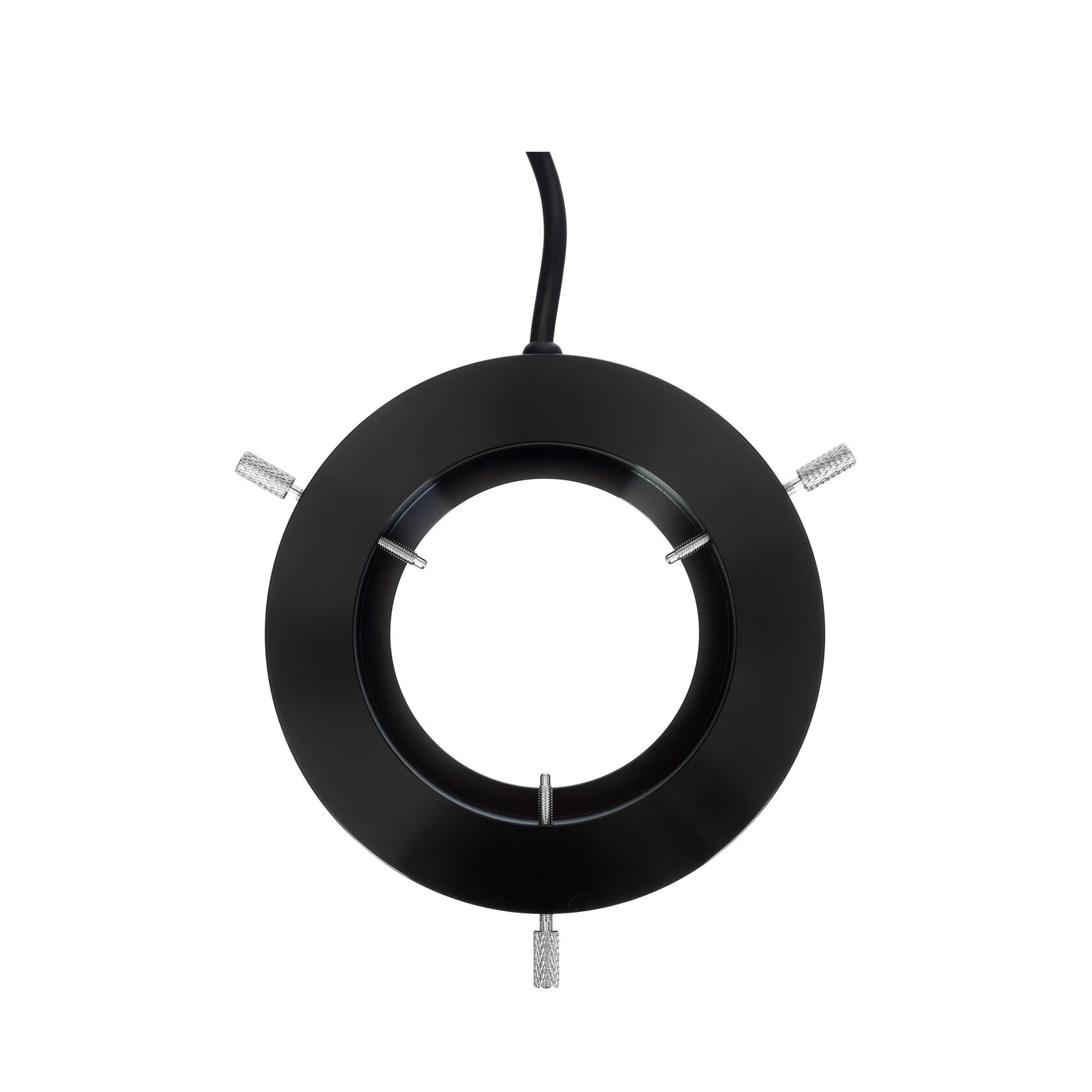

Crafted from high-quality aluminum, the ring light ensures excellent thermal performance and mechanical durability. It operates reliably within a wide temperature range and maintains consistent brightness even after prolonged use. The illuminator’s adjustable barrel diameter (60–70 mm) makes it compatible with a variety of stereomicroscope heads, offering an easy and secure fit.
Compatibility
The MAGUS LED 144-S4 is compatible with the following stereomicroscopes and microscope heads:
- MAGUS Stereo 7B
- MAGUS Stereo 7T
- MAGUS Stereo 8B
- MAGUS Stereo 8T
- MAGUS Stereo 9T
- MAGUS Stereo 7BH
- MAGUS Stereo 7TH
- MAGUS Stereo 8BH
- MAGUS Stereo 8TH

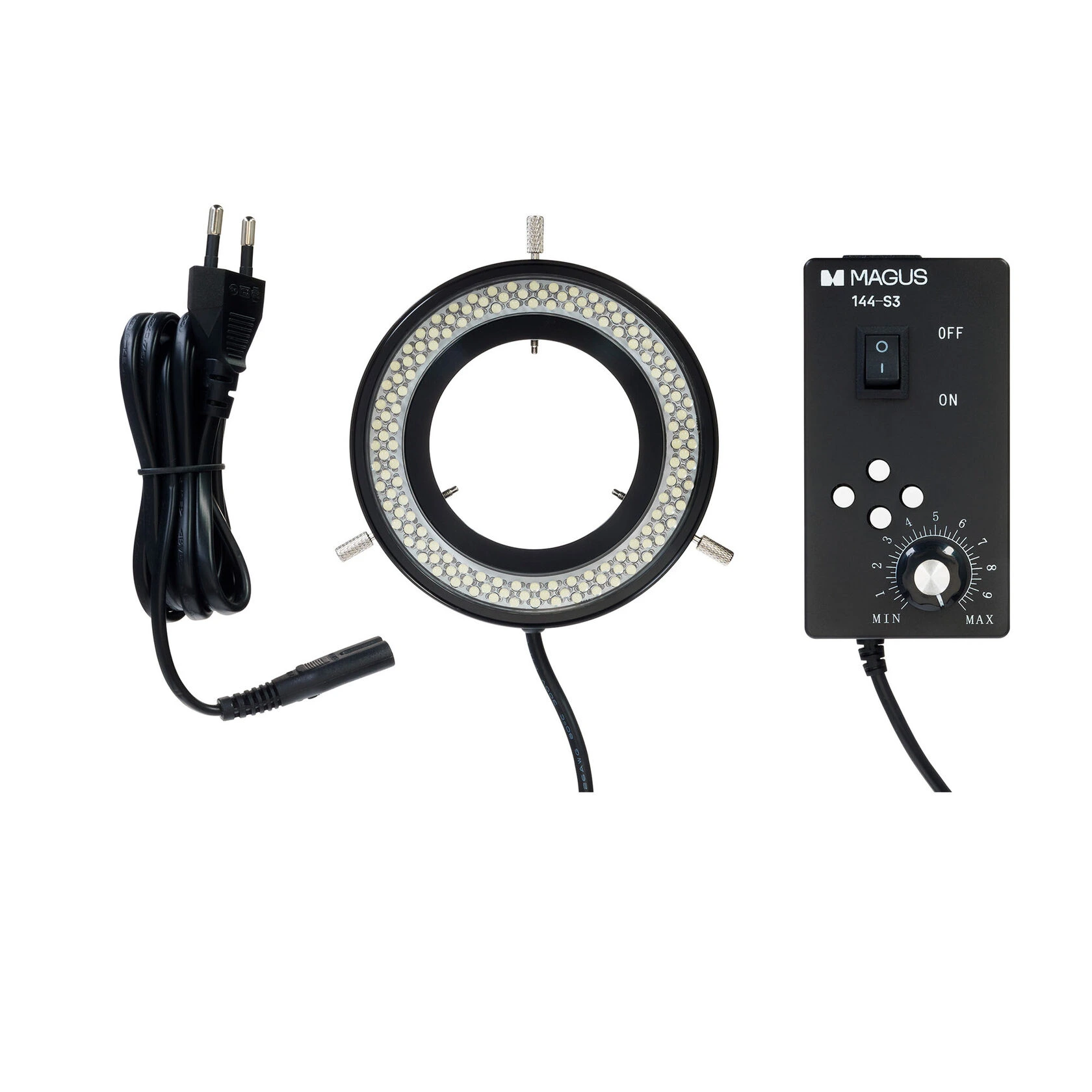

Kit Includes
- Reflected light ring illuminator
- Control block
- Power cord
Technical Specifications
| Specification | Details |
|---|---|
| Product ID | 83522 |
| Brand | MAGUS |
| Warranty | 2 years |
| EAN | 5905555019871 |
| Light Source | 144 LEDs with adjustable brightness |
| Number of Sectors | 4 |
| Input Voltage | 110–240 V |
| Output Voltage | 12 V |
| Body Material | Aluminum |
| Barrel Diameter | 60–70 mm |
| Operating Temperature | 0…+40 °C |
| Operating Humidity | 20–85% |
| Package Dimensions (L×W×H) | 24 × 20 × 7 cm |
| Shipping Weight | 0.6 kg |
