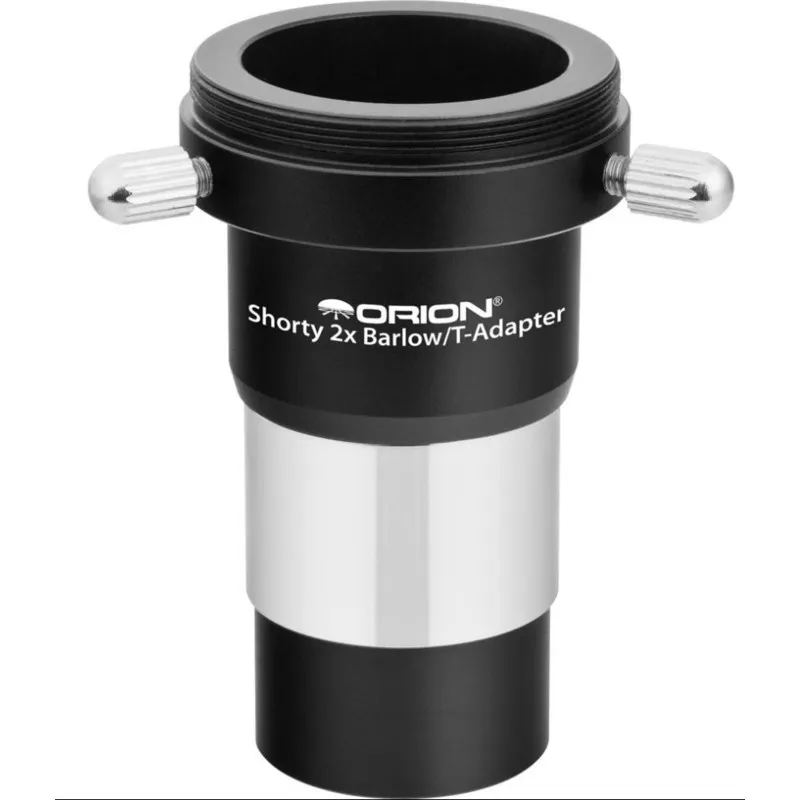

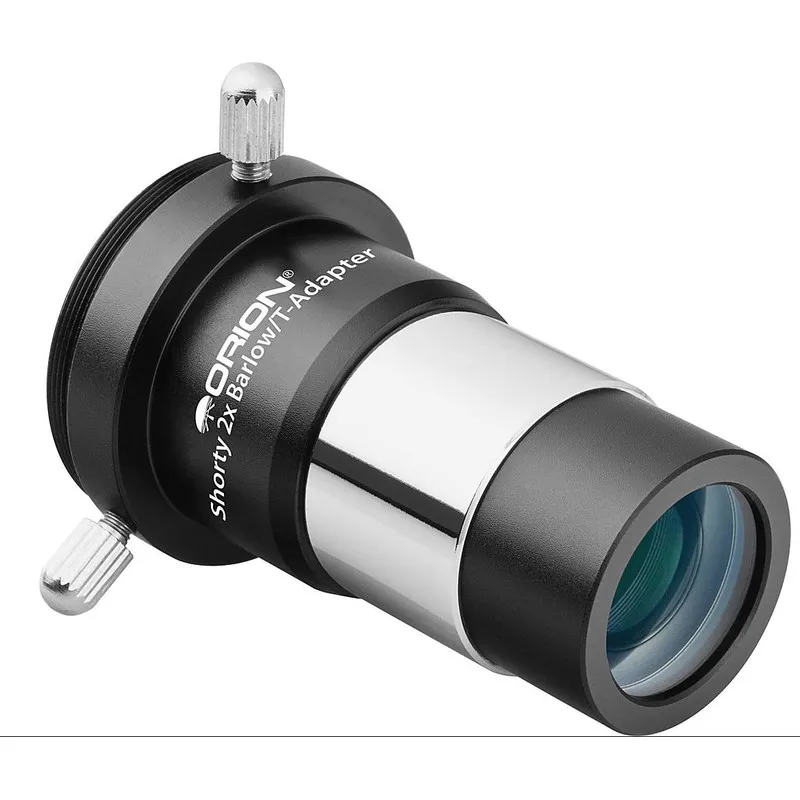

Orion Shorty 2X Barlow Lens 1.25" with T-Thread
Key Features
- 2X Magnification – Doubles the magnification of any 1.25" telescope eyepiece.
- 1.25" Barrel – Compatible with standard 1.25" telescope focusers and diagonals.
- Built-in T-Thread – Allows direct attachment of cameras using a compatible T-ring.
- Fully Multi-Coated Doublet Optics – Provides good light transmission and contrast.
- Internal Baffling – Helps reduce unwanted reflections and improve image contrast.
- Astrophotography Ready – Suitable for high-magnification lunar and planetary photography.
- Compact Shorty Design – Only about 2-7/8" (73 mm) long and weighs approximately 3 oz (85 g).
Description
Orion Shorty 2X Barlow Lens 1.25" with T-Thread
The Orion Shorty 2X Barlow Lens 1.25" with T-Thread is a compact and versatile accessory designed to double the magnification of 1.25" telescope eyepieces. By placing the Barlow between the telescope and eyepiece, it effectively doubles the focal length of the telescope without requiring a different eyepiece. For example, a 10mm eyepiece used with this Barlow produces the same magnification as a 5mm eyepiece.
Its shorty design makes it convenient for use with a wide range of telescopes while maintaining a compact form factor. The Barlow uses multi-coated optics to provide good light transmission and contrast, making it useful for detailed observations of the Moon, planets, and other bright astronomical objects.

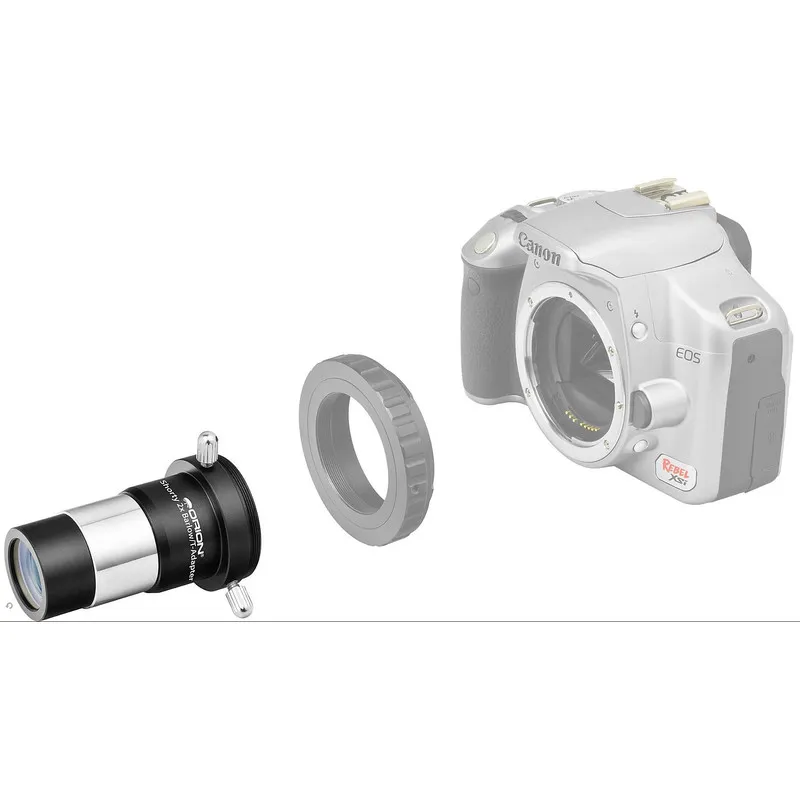

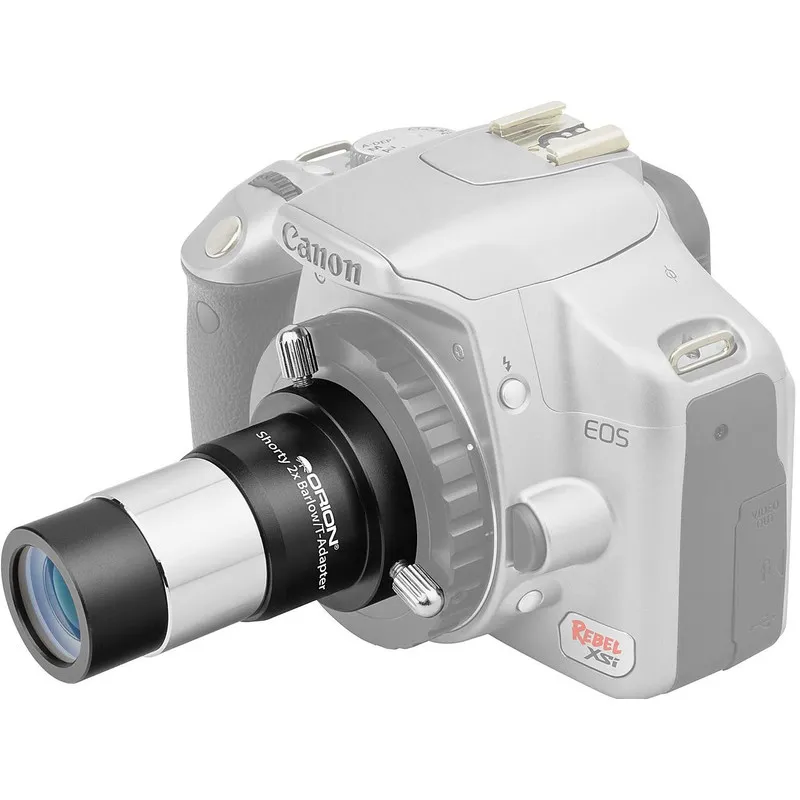

The built-in T-thread adds useful astrophotography capability. With a compatible T-ring, a camera can be attached directly to the Barlow for higher-magnification lunar and planetary photography. The Barlow lens assembly can also be removed, allowing the unit to function as a 1X T-adapter for prime-focus photography.
The Orion Shorty 2X Barlow accepts standard 1.25" telescope accessories, making it a practical addition to an existing eyepiece collection. Its compact design and dual visual/imaging functionality make it suitable for both visual observation and basic astrophotography.
| Specification | Details |
|---|---|
| Brand | Orion |
| Product Type | Barlow Lens / T-Adapter |
| Magnification | 2X |
| Optical Design | Doublet |
| Number of Optical Elements | 2 |
| Optical Coating | Multi-Coated |
| Telescope Connection | 1.25" |
| Camera Connection | T2 / T-Thread |
| T-Thread | M42 × 0.75 |
| Filter Thread | No |
| Length | 73 mm |
| Weight | 85 g |
