Description

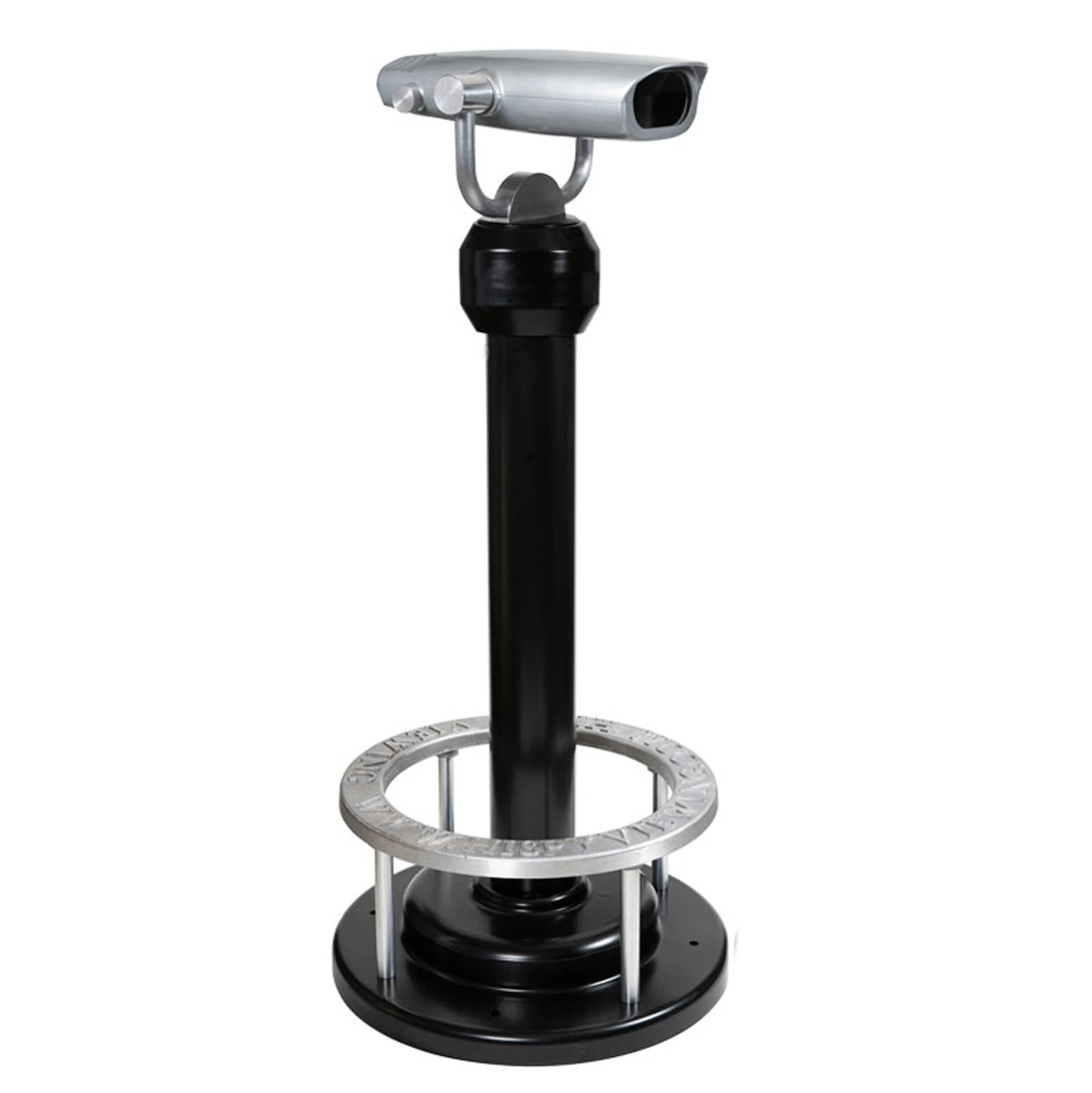

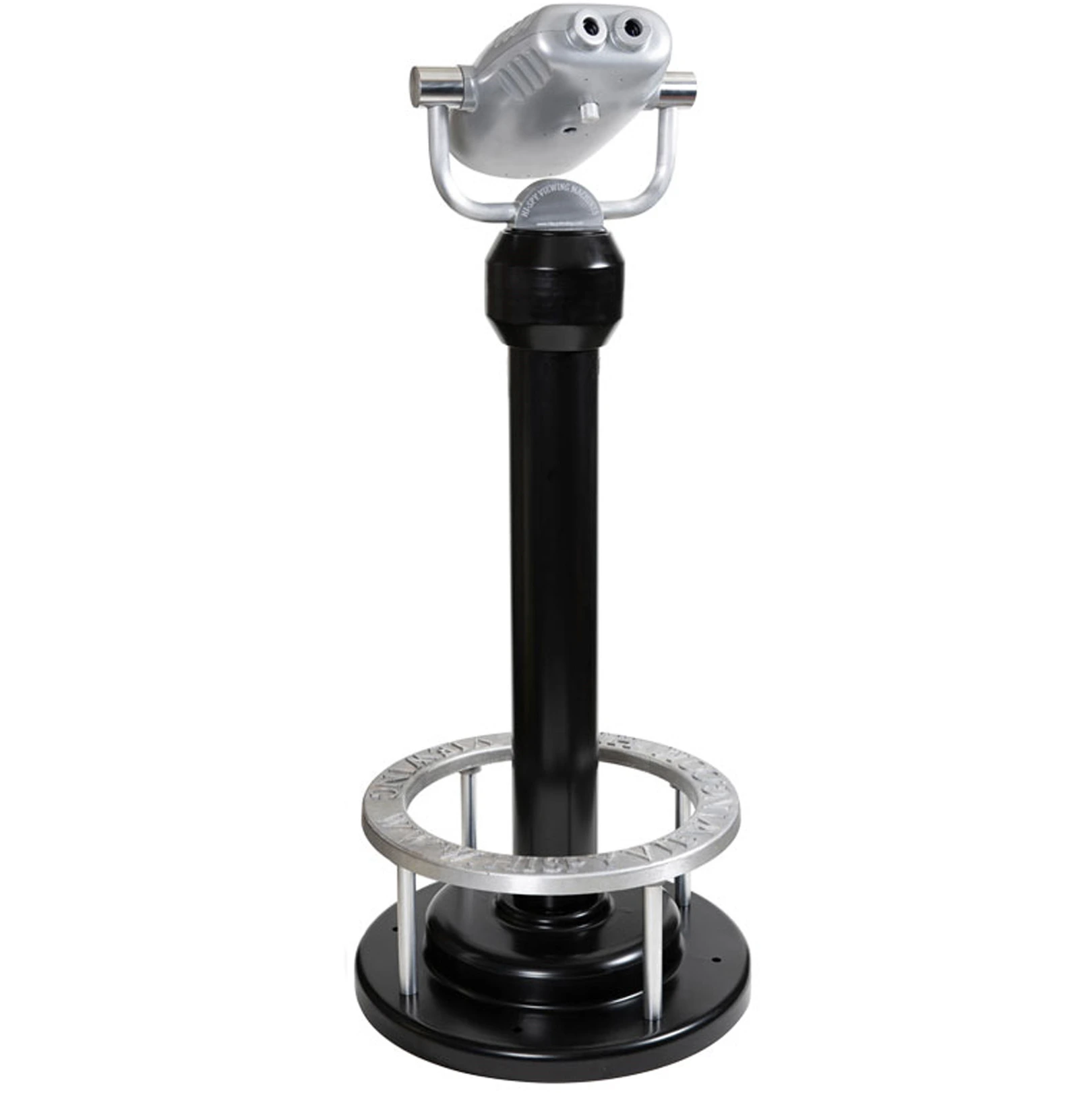

Non-Coin Operated Outdoor Observation Scope

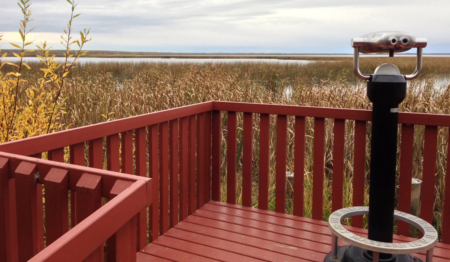

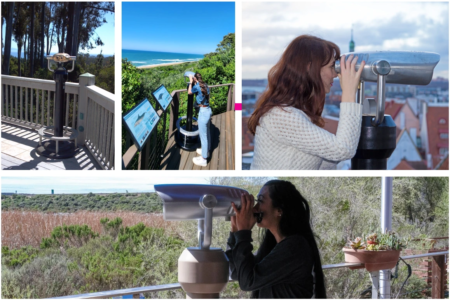

This professional-grade binocular viewer delivers powerful 20x magnification through waterproof, nitrogen-filled optics with a 60 mm objective lens which make it an ideal instrument for scenic overlooks, beach houses, balconies, and public observation points.
With a 40 m field of view at 1000 m (120 ft at 1,000 yards) and a manually reciprocating focus, it provides clear viewing of oceanic, wildlife, landscapes, or urban details.
Constructed entirely from corrosion-resistant aluminum and weighing approx. 57 kg (125 lbs), this rugged viewing machine is designed to endure heavy usage, harsh weather, and even vandalism. The articulating, never-ending focus mechanism ensures durability with no grip points for tampering. The scope rotates 360° and tilts ±30°, supported by a bronze bearing system and a trucking-industry-grade vertical hub, ensuring years of smooth, maintenance-free operation. The powder-coated finish (in textured black as standard) and sleek design add visual appeal, while a 30-cm (12-inch) standing ring ensures accessibility for shorter users. Built with field-tested components, many of these viewers have remained operational for decades. A perfect addition for high-traffic public sites or premium private properties.
Whether for private enjoyment or public use, the Hi-Spy 20x viewer combines rugged engineering with crisp optics for an immersive viewing experience.
OPTICS (Waterproof Optics) | |
Magnification | 20x |
Field of View | 40 m at 1000 m (120 feet at 1000 yds) |
Focus | Manual - Reciprocating |
Objective Diameter | 60 mm |
Exit Pupil Aperture | 3 mm |
Interpupillary Distance | 6.35 CM (2.5 inches) |
Long Eye Relief | Yes |
DIMENSIONS | |
Machine Height | 157 CM (5ft. 2 in) |
Eyepiece Height | 152 CM (5ft. 0 in) |
Machine Weight | 54 KG (120 lbs) |
Standing Ring Height | 30 CM (12 inches) |
Maintube Diameter | 15 CM (6 inches) |
Base Diameter | 71 CM (28 inches) |
Base Options | Custom Aluminum plate bases for certain applications can be provided. |
CONSTRUCTION | |
Viewing Head | Painted Aluminum |
Viewing Head Support Arms | Aluminum |
Main Tube | Powdercoated aluminum 4.8 MM (0.1875 inch) wall thickness |
Base | Powdercoated aluminum |
Standing Ring | Cast aluminum |
Standing Ring Height | 30 CM (12 inches) |
MOVEMENT | |
Horizontal Movement | Tapered roller bearing system – 360 degrees (can be modified on request) |
Vertical Movement | Bronze bearing on aluminum trunnion – +/- 30 degrees |
SECURITY | |
Viewing Head Security | Pop lock over security bolt |
OTHER | |
Swivel Set Option Available | Yes |
Colors | Standard color is textured black with aluminum head. Sierra tan, moss green, blue, green and red are also available. - On request, we can discuss other colors |
WARRANTY | |
Warranty | 5 years on all parts |
