Description

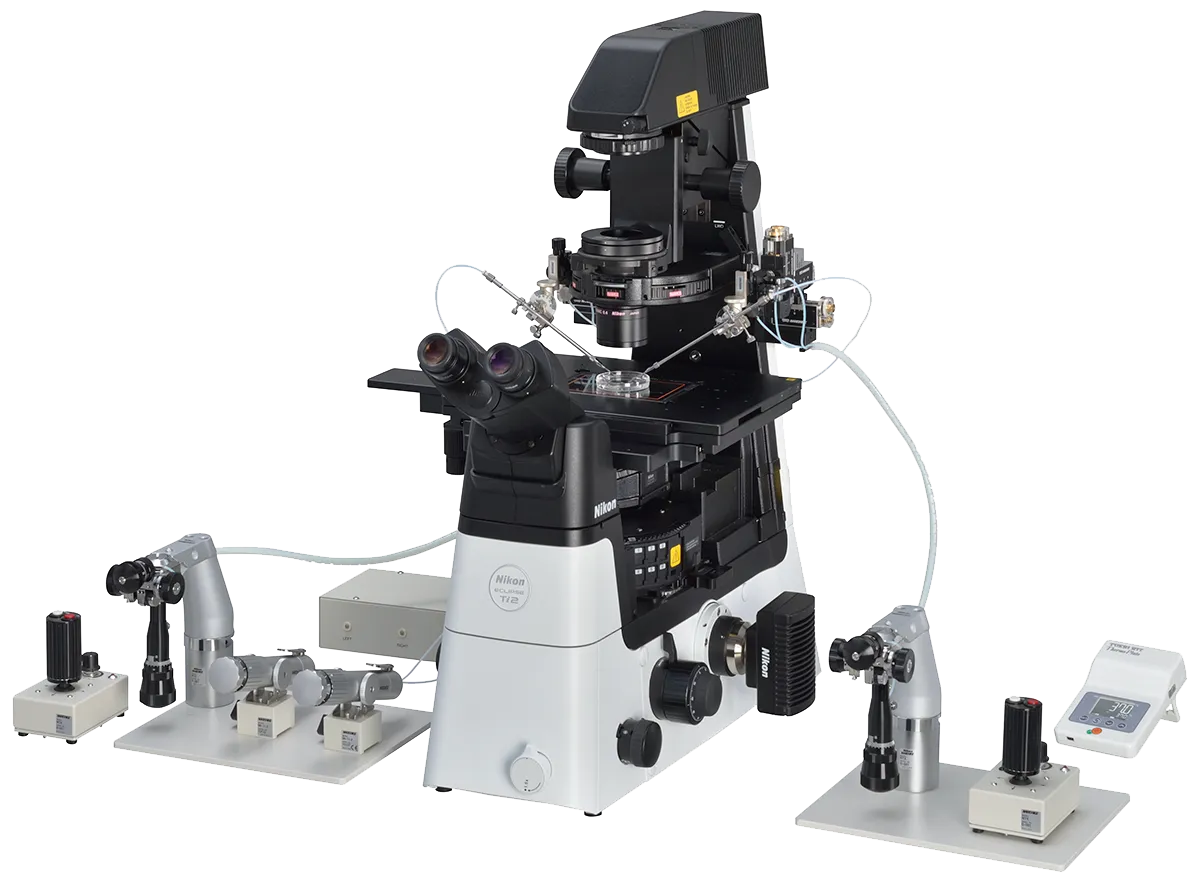

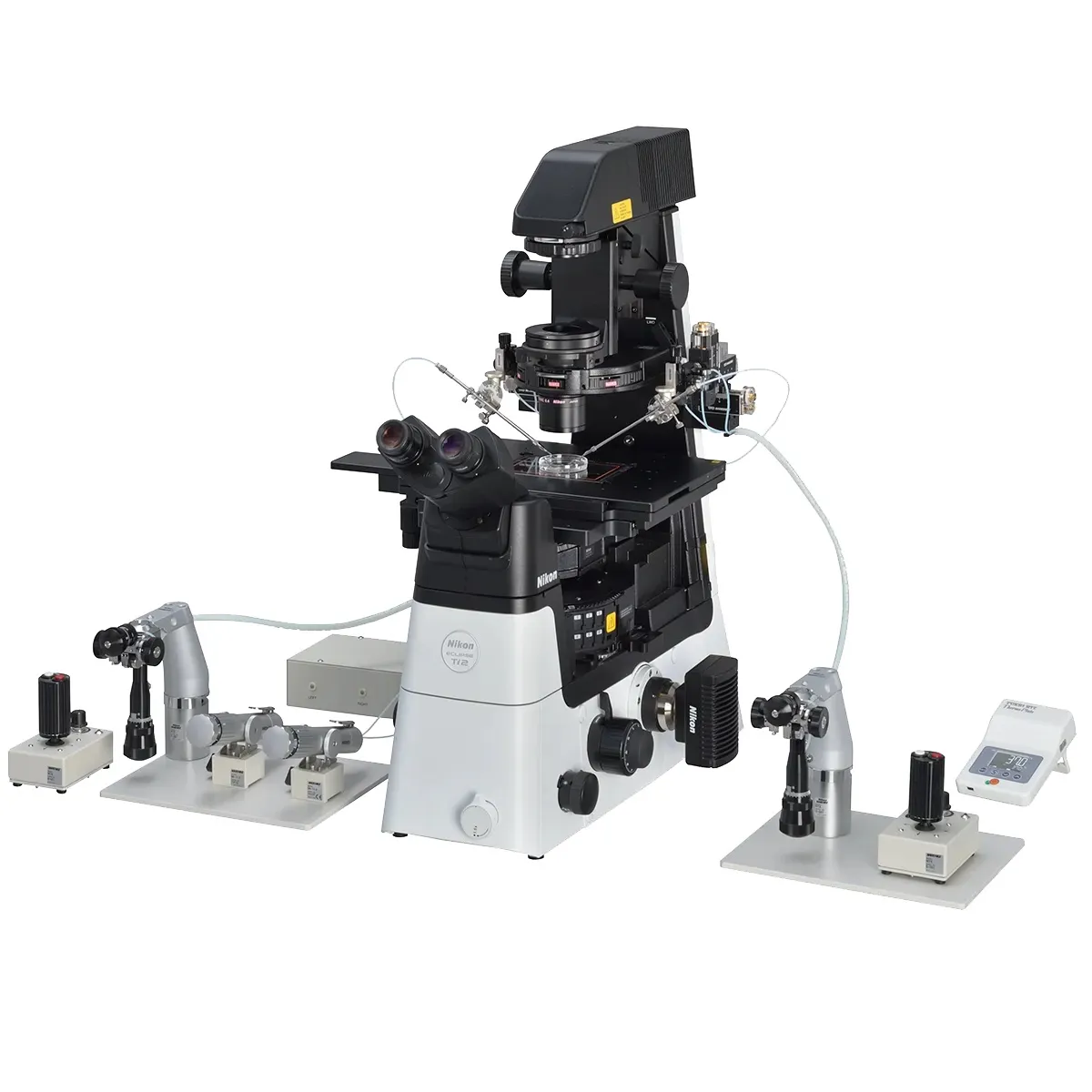

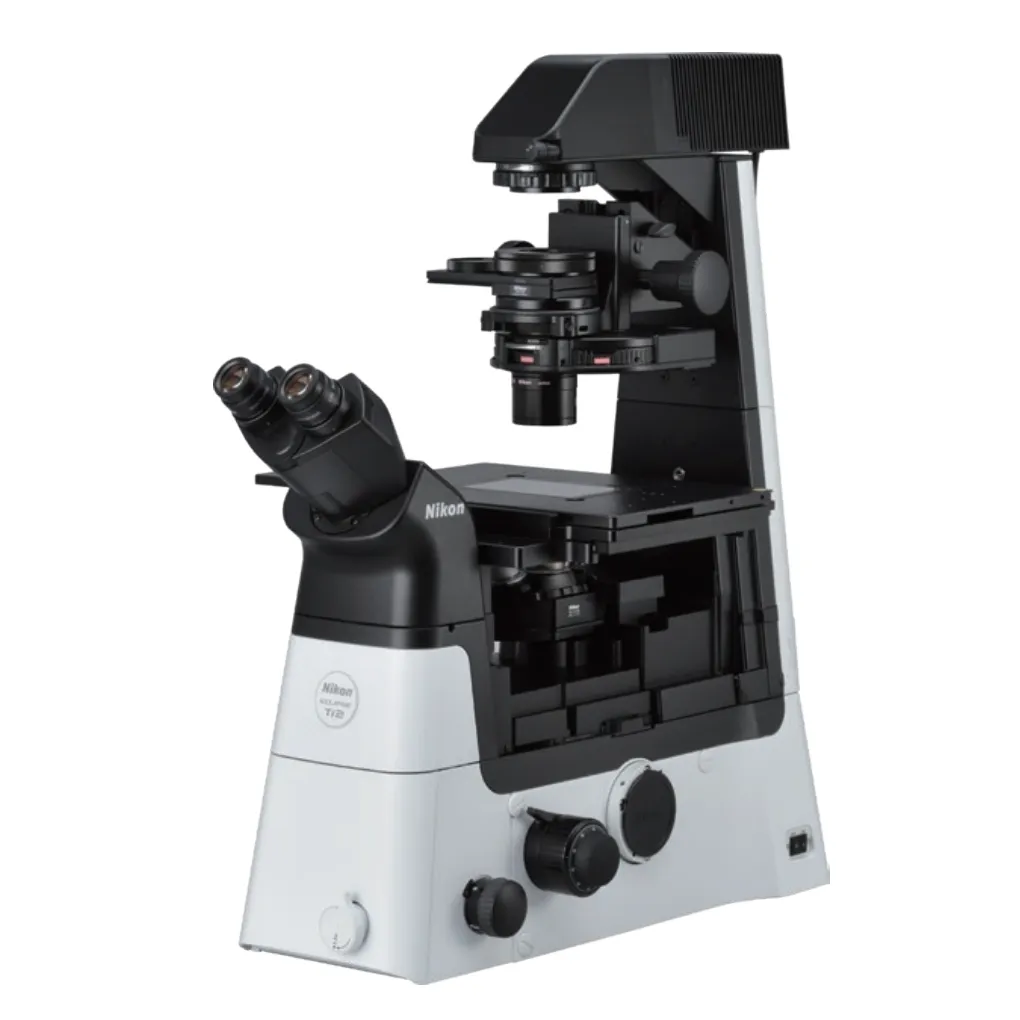

Nikon Eclipse Ti2-U Inverted Microscope for ICSI
The Nikon Eclipse Ti2-U Inverted Microscope for ICSI is a state-of-the-art imaging system purpose-built for delicate micromanipulation procedures such as Intracytoplasmic Sperm Injection (ICSI) and In Vitro Fertilization (IVF). With Nikon’s world-renowned CFI60 optical system, ergonomic design, and specialized ICSI-compatible features, this microscope delivers unmatched stability, clarity, and precision for assisted reproductive technologies.
🔬 Optimized for Micromanipulation & ICSI
ICSI demands absolute optical clarity, vibration-free operation, and precision positioning. The Ti2-U addresses all three:
- High NA Objectives with long working distances ensure crystal-clear views of oocytes and sperm.
- ICSI-ready stage with smooth travel and stability for holding pipettes and injection needles.
- Wide field of view and multiple output ports simplify micromanipulation and video documentation simultaneously.
Whether you’re observing spindle integrity or injecting a single sperm cell into an oocyte, the Ti2-U delivers the optical performance needed for confident ICSI work.
💡 Precision LED Illumination
Equipped with the Ti2-D-LHLED high-power LED Lamp House, this system provides consistent and heat-free transmitted illumination—critical for maintaining sample viability during sensitive ICSI procedures. The Ti2-D-PDI Illumination Pillar offers backward tilting and vertical movement (66 mm stroke), ensuring ergonomic access and accurate focusing under micromanipulation systems.
🔍 Clear, Flexible Viewing Options
- Manual intermediate magnification switching (1.0× / 1.5×)
- CFI 10X Eyepieces with 22 mm field number
- 4-position optical output port, allowing split light for real-time observation and digital recording (eyepiece 100%, right 100%, left 100%, or 80/20 split)
🧫 IVF & ICSI Stage Design

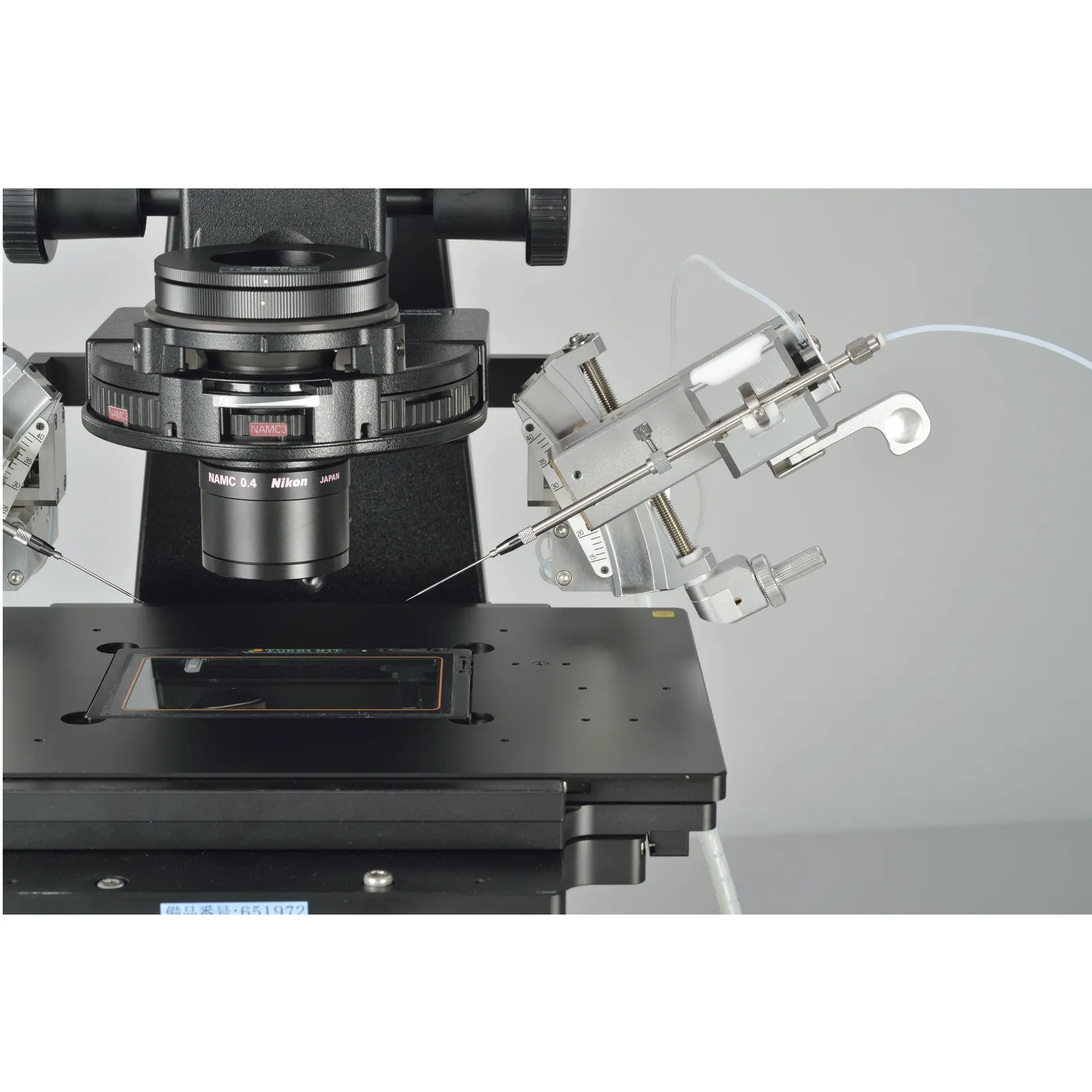

The TC-S-SR Stage is specifically engineered for IVF/ICSI use:
- Stroke range: ±57 mm (X), ±36.5 mm (Y)
- Extremely stable platform for precise manipulation
- Compatible with the Ti2-S-HL Long Handle for smooth stage control
- Supports micromanipulation devices and holding pipettes
🔄 Nosepiece & Condenser System
- Ti2-N-N Sextuple Nosepiece: 6 manual positions, waterproof structure, fast switching between objectives
- Ti-C NAMC Condenser (N.A. 0.4): Supports phase and NAMC contrast for oocyte visibility
- 7-position Condenser Turret: Accommodates various contrast modules including 10X, 20X, and 40X NAMC

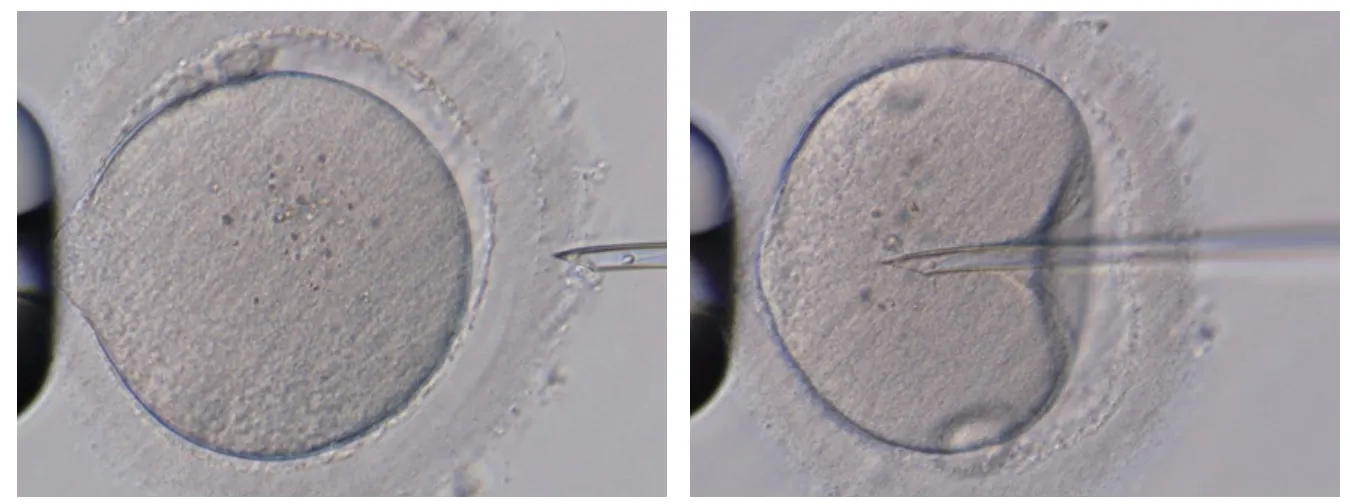

Nikon Advanced Modulation Contrast (NAMC) observation
The Nikon Advanced Modulation Contrast (NAMC) technique enables high-contrast observation of colorless and transparent samples through plasticware. NAMC produces a pseudo-relief shading effect, ideal for ICSI.
🧪 Spindle & Contrast Imaging

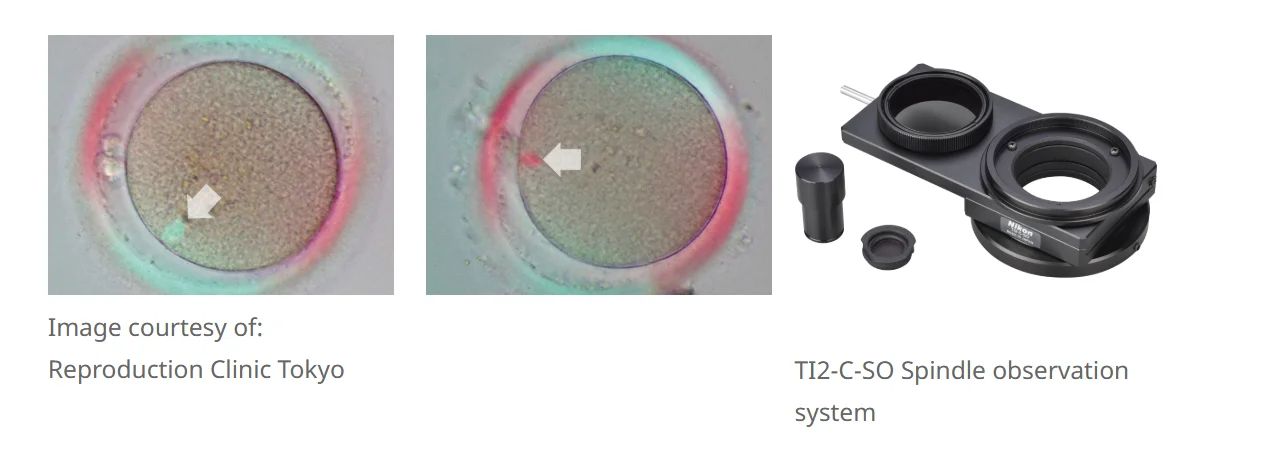

- Spindle Observation System (Ti2-C-SO): Enables non-invasive observation of the meiotic spindle, helping to determine oocyte maturity before ICSI
- NAMC Polarizers and contrast modules provide high-contrast images of transparent structures without fluorescent dyes
🔭 High-Performance Objectives
The microscope is compatible with Nikon’s advanced CFI60 objectives designed for ICSI and IVF:
Objective Model | N.A. / W.D. |
---|---|
CFI Achromat 4X | 0.10 / 30.0 mm |
CFI Achromat NAMC 10X | 0.25 / 6.2 mm (PH-1) |
CFI Achromat LWD NAMC 20X | 0.40 / 3.1 mm (PH-1) |
CFI Achromat LWD NAMC 40X | 0.55 / 2.7–1.7 mm (PH-2) |
CFI S Plan Fluor ELWD NAMC 20X | 0.45 / 8.2–6.9 mm (PH-2) |
CFI S Plan Fluor ELWD NAMC 40X | 0.60 / 3.6–2.8 mm (PH-2) |
These lenses offer excellent transmission, flat fields, and long working distances—ideal for ICSI where needle access and detail are equally important.
⚙ Environmental and Power Compatibility
- Power Supply:
- EU Model: Power Cord Type BE, 220–240V, 3-AC Adapter
- US Model: Power Cord Type BU, 100–120V, 4-AC Adapter
- Operating Conditions: 0°C to 40°C, humidity ≤ 60% RH (non-condensing), indoor use only
✅ Ideal For
- ICSI (Intracytoplasmic Sperm Injection)
- IVF clinics and embryology labs
- Spindle visualization before oocyte injection
- Long-term embryo observation
- Advanced reproductive research
🏆 Why Choose the Nikon Ti2-U for ICSI?
- Trusted Nikon CFI60 optics tailored for reproductive medicine
- Seamless integration with micromanipulation systems
- Spindle observation system ensures oocyte maturity check
- Smooth, ergonomic operation for long hours of ICSI work
- Upgradeable modular platform to adapt to future lab needs
Add the Nikon Eclipse Ti2-U Inverted Microscope for ICSI to your fertility lab and experience precision imaging built for life-creating moments.

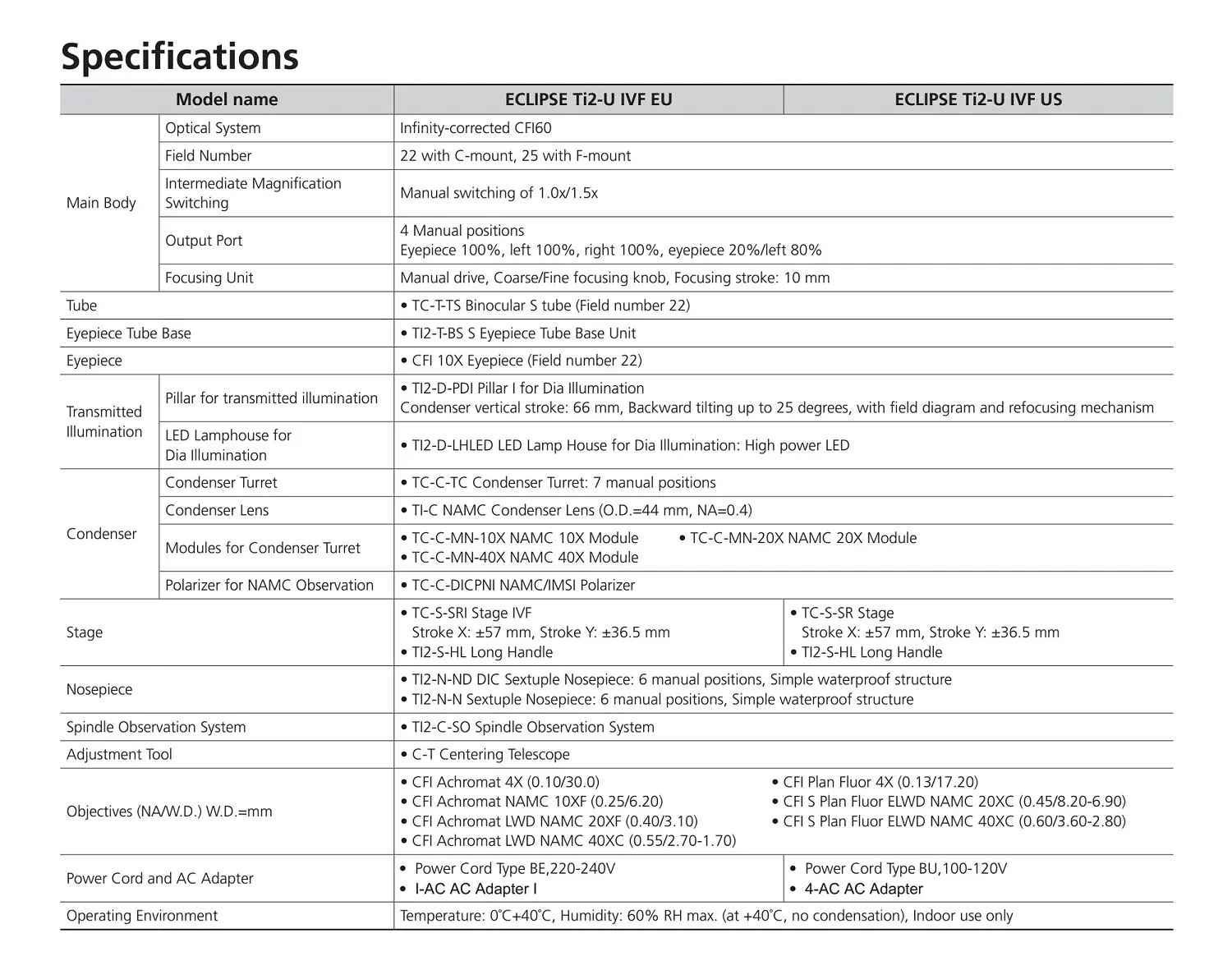

🔧 Nikon Eclipse Ti2-U IVF Inverted Microscope – Feature Table
ECLIPSE Ti2-U IVF | |
---|---|
Optical System | Infinity-corrected CFI60 |
Field Number | 22 with C-mount, 25 with F-mount |
Intermediate Magnification Switching | Manual switching of 1.0X/1.5X |
Output Port | 4 Manual positions Eyepiece 100%, left 100%, right 100%, eyepiece 20%/left 80% |
Focusing Unit | Manual drive, Coarse/Fine focusing knob, Focusing stroke: 10 mm |
Tube | TC-T-TS Binocular S tube (Field number 22) |
Eyepiece Tube Base | TI2-T-BS S Eyepiece Tube Base Unit |
Eyepiece | CFI 10X Eyepiece (Field number 22) |
Pillar for transmitted illumination | TI2-D-PDI Pillar I for Dia Illumination Condenser vertical stroke: 66 mm, Backward tilting up to 25 degrees, with field diagram and refocusing mechanism |
LED Lamphouse for Dia Illumination | TI2-D-LHLED LED Lamp House for Dia Illumination: High power LED |
Condenser Turret | TC-C-TC Condenser Turret: 7 manual positions |
Condenser Lens | TI-C NAMC Condenser Lens (O.D.=44 mm, NA=0.4) |
Modules for Condenser Turret | TC-C-MN-10X NAMC 10X Module TC-C-MN-20X NAMC 20X Module TC-C-MN-40X NAMC 40X Module |
Polarizer for NAMC Observation | TC-C-DICPNI NAMC/IMSI Polarizer |
Stage | TC-S-SR Stage Stroke X: ±57 mm, Stroke Y: ±36.5 mm TI2-S-HL Long Handle |
Nosepiece | TI2-N-ND DIC Sextuple Nosepiece: 6 manual positions, Simple waterproof structure TI2-N-N Sextuple Nosepiece: 6 manual positions, Simple waterproof structure |
Spindle Observation System | TI2-C-SO Spindle Observation System |
Adjustment Tool | C-T Centering Telescope |
Objectives (NA/W.D.) W.D.=mm | CFI Achromat 4X (0.10/30.0) CFI Achromat NAMC 10XF (0.25/6.20) CFI Achromat LWD NAMC 20XF (0.40/3.10) CFI Achromat LWD NAMC 40XC (0.55/2.70-1.70)CFI Plan Fluor 4X (0.13/17.20) CFI S Plan Fluor ELWD NAMC 20XC (0.45/8.20-6.90) CFI S Plan Fluor ELWD NAMC 40XC (0.60/3.60-2.80) |
Power Cord and AC Adapter | Power Cord Type BU,100-120V I-AC AC Adapter I |
Operating Environment | Temperature: 0˚C+40˚C, Humidity: 60% RH max. (at +40˚C, no condensation), Indoor use only |
Note:
ICSI stands for Intracytoplasmic Sperm Injection, and IVF stands for In Vitro Fertilization. They are related but not exactly the same:
🔹 IVF (In Vitro Fertilization):
-
A woman’s eggs are collected and mixed with sperm in a lab dish.
-
Fertilization happens naturally (one sperm penetrates one egg).
-
Once embryos develop, one or more are transferred into the uterus.
🔹 ICSI (Intracytoplasmic Sperm Injection):
-
A form of IVF, but more advanced.
-
Instead of letting sperm and egg meet naturally, a single sperm is injected directly into an egg using a fine needle.
-
Used when there are sperm-related fertility problems (e.g., low count or poor motility).
