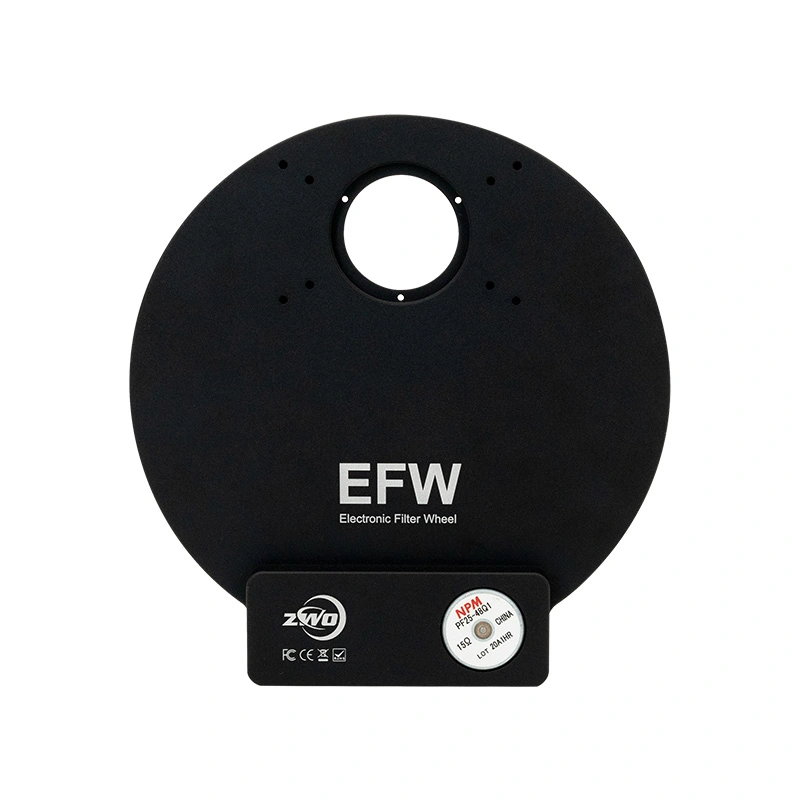

ZWO EFW 7x36mm (2nd Generation) Electronic Filter Wheel
Available on backorder
Key Features
- 2nd generation 7-position electronic filter wheel for 36mm unmounted filters
- New “-25” generation with sealed 25 mm chassis
- Enhanced light-leak protection with upgraded internal sealing
- High-precision motorized rotation, smooth and bidirectional
- USB-C powered, no external power supply required
- Compatible with ASIAIR, ASIStudio, ASCOM & ZWO SDK
Description
New-Generation Motorized Filter Wheel for 36mm unmounted filters
The ZWO EFW-7×36-25 is the latest evolution of ZWO’s electronic filter wheel lineup, engineered to deliver cleaner images, smoother operation, and enhanced reliability for deep-sky astrophotography. Built around a newly developed 25 mm sealed chassis, this generation focuses on minimizing stray light, improving mechanical rigidity, and simplifying connectivity for modern imaging setups.
Precision CNC Construction

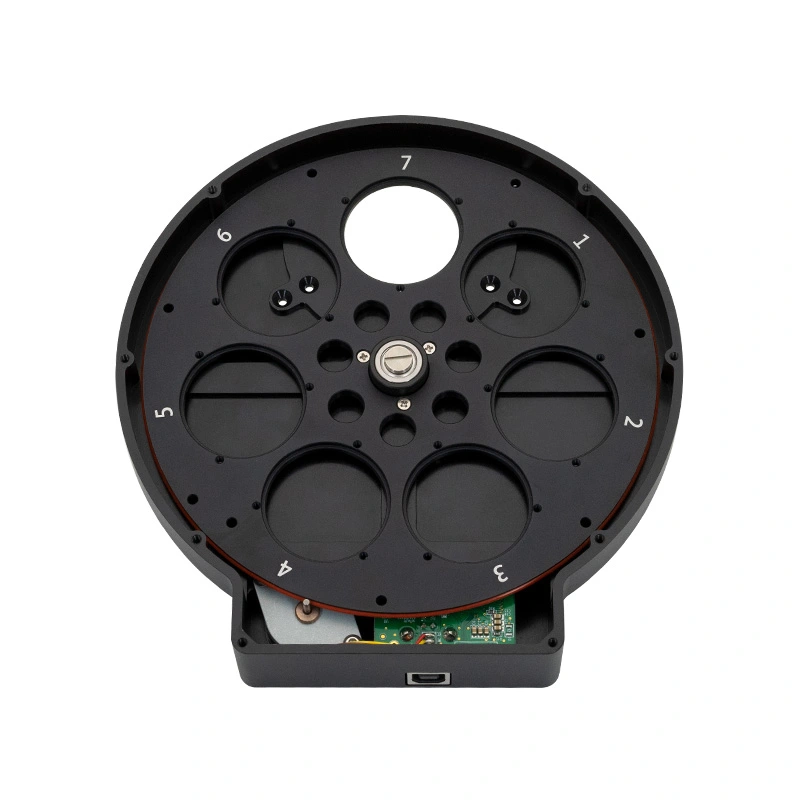

Machined from a CNC aluminum alloy body, the filter wheel remains lightweight while offering excellent structural stability. Inside, a 6061-aluminum filter carousel ensures accurate, repeatable filter positioning, even during long, unattended imaging sessions. The refined mechanical design guarantees stable performance for both portable and permanent observatory setups.

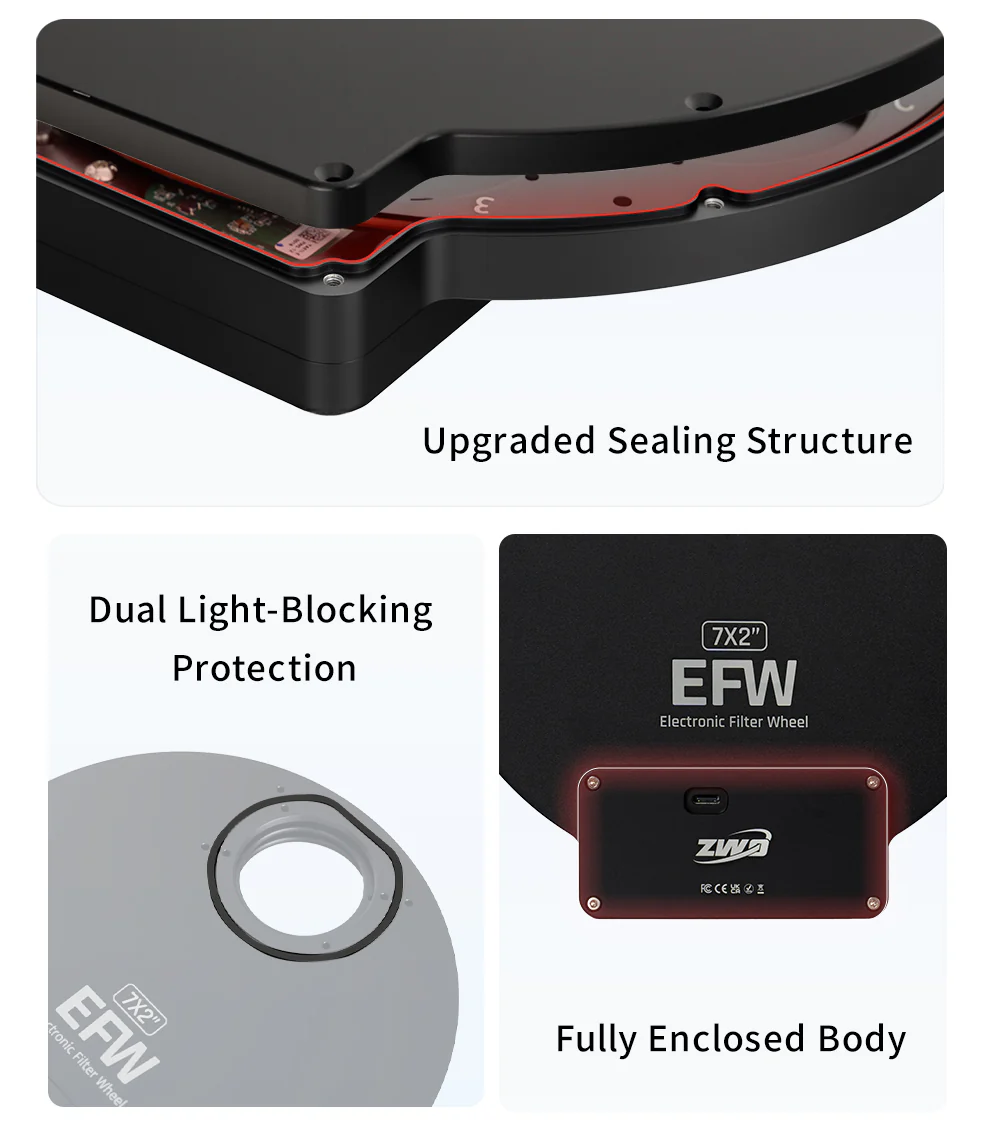

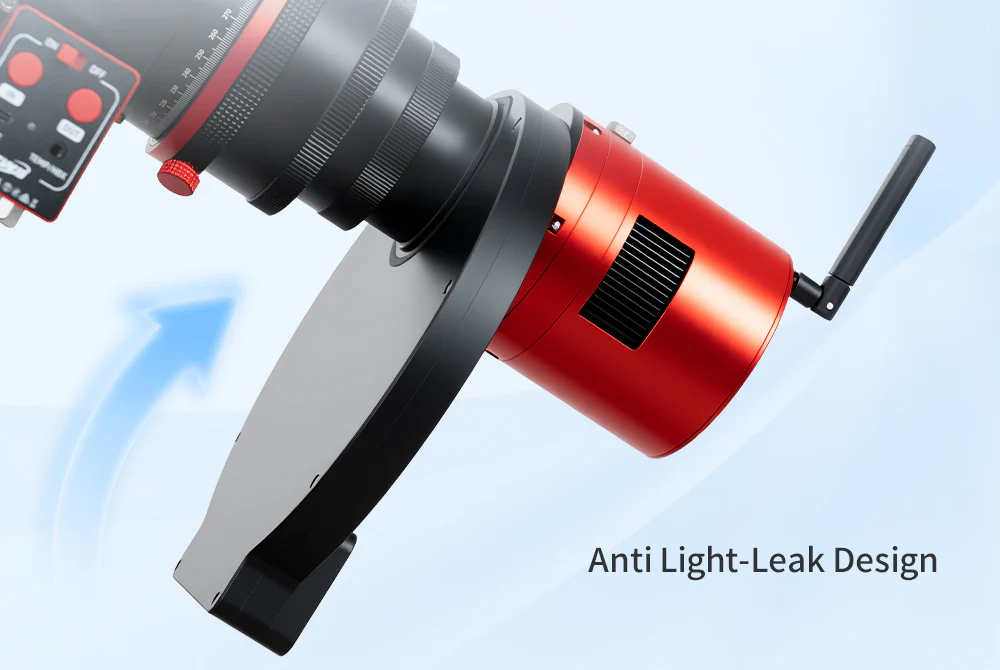

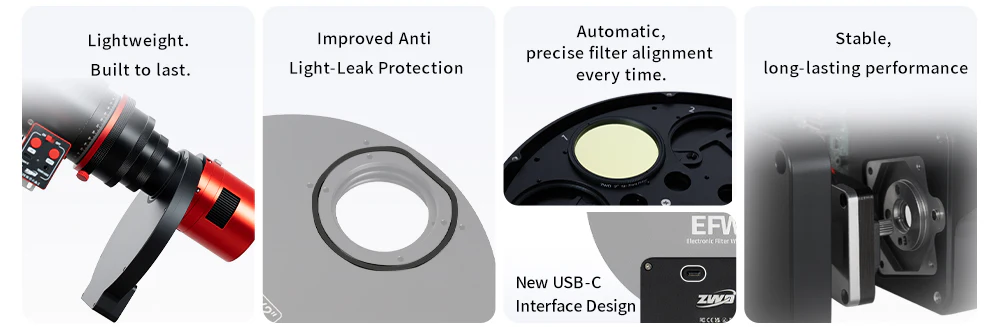

Advanced Anti Light-Leak Design
The EFW-7×36-25 features a redesigned internal structure specifically engineered to block stray light from all directions. A fully enclosed motor compartment, combined with upgraded internal sealing and dual light-blocking pads at lateral connection points, significantly reduces the risk of light leaks—resulting in cleaner, more uniform calibration and imaging frames.

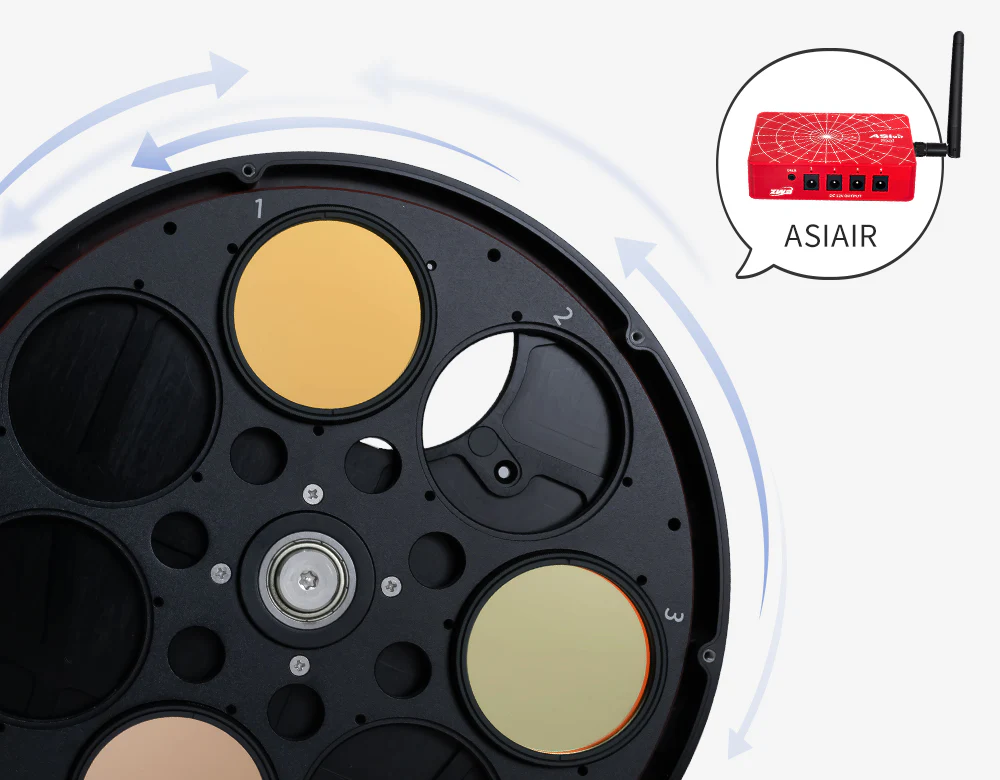

Smooth, Reliable Filter Switching
At its core, the filter wheel uses a high-precision stepper motor that delivers fast, quiet, and bidirectional filter rotation with precise position indexing. This ensures consistent and reliable filter changes, even during extended imaging sessions or fully automated workflows.

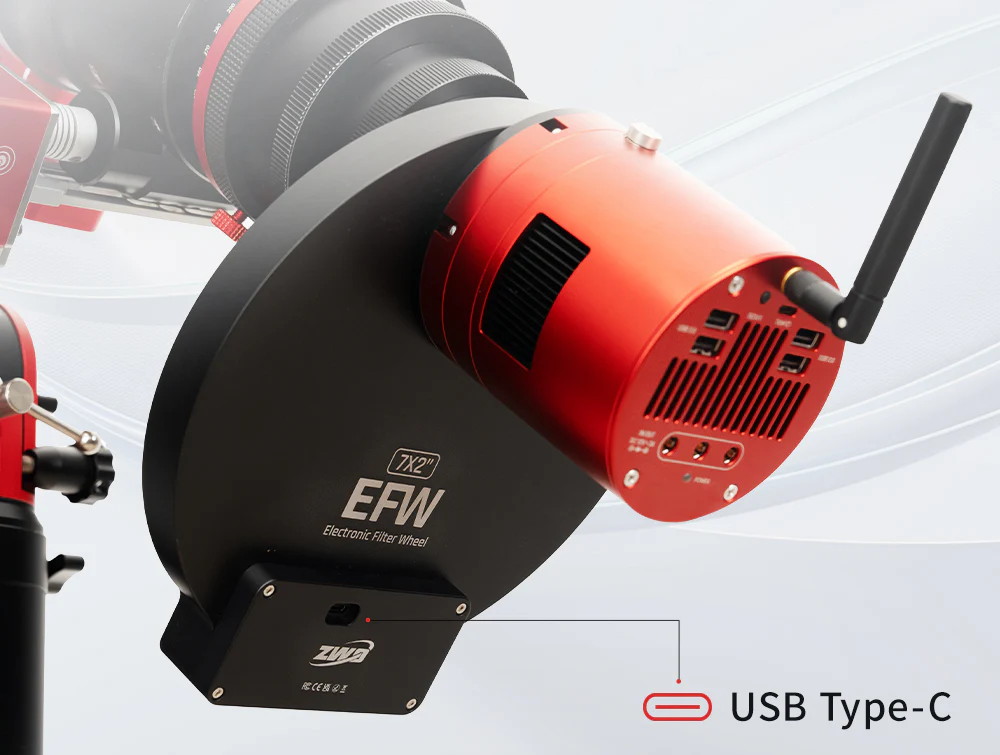

Simplified Power and Connectivity
Power is supplied entirely through a single USB-C connection, drawing just 120 mA at 5 V, with no external power supply required. The upgraded USB-C interface offers improved mechanical strength and connection reliability compared to previous generations, making cable management cleaner and more robust.
Optimized for Modern Astrophotography Workflows
Designed to hold seven 36 mm unmounted filters, the EFW-7×36-25 is ideal for APS-C and full-frame monochrome cameras, supporting LRGB and narrowband imaging. Full software compatibility with ASIAIR, ASIStudio, ASCOM, and the ZWO SDK enables seamless automation and driver-free plug-and-play operation.

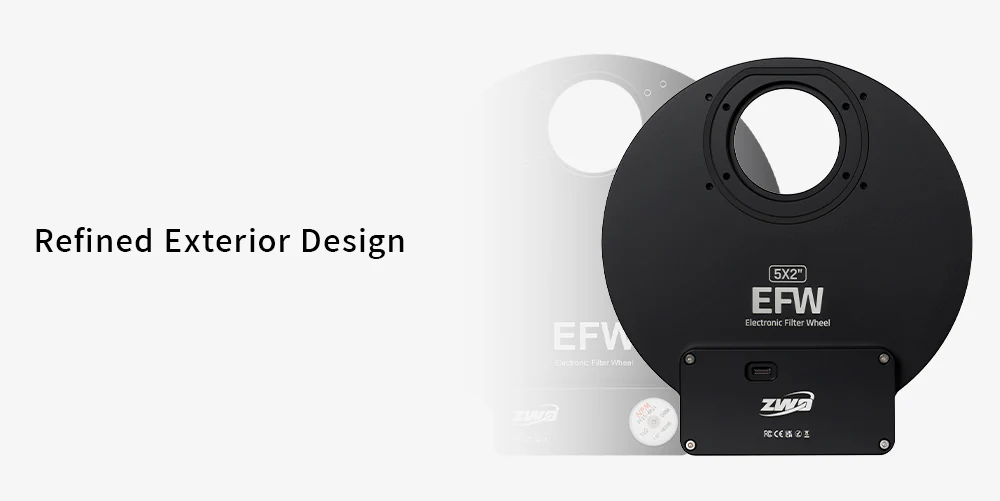

Refined Exterior Finish
The new generation also introduces a refined exterior with laser-engraved markings and a cleaner logo finish, giving the filter wheel a professional, modern look that matches high-end astrophotography equipment.

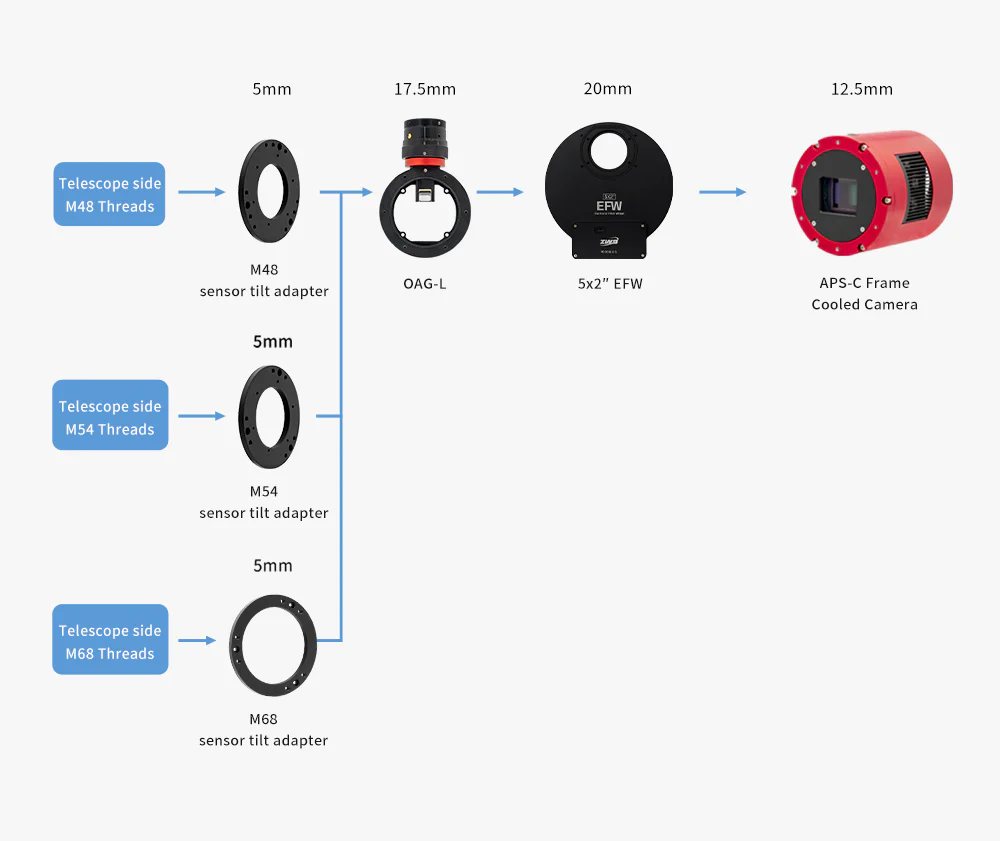

Connection
What's In the Box
Additional information
| Manufacturer | Suzhou ZWO Co., Ltd. |
|---|---|
| Manufactured in | China |
| Colour | Black |
| Warranty | 2 years |
| Filter wheel type | Electronic (Motorized) Filter Wheel |
|---|---|
| Filter wheel body material | CNC-machined aluminum alloy |
| Filter capacity | 7 positions |
| Filter size compatibility | 36mm unmounted filters |
| Compatible Filters | Unmounted 36mm filters, ZWO 36mm filters (LRGB, SHO) |
| Supported Filter Thickness | 1.5 mm – 3.0 mm |
| Motor | High-precision stepper motor |
| Rotation Direction | Bidirectional (clockwise or counterclockwise) |
| Connection type | USB-C |
| Control method | Via USB from computer or through ZWO cooled camera’s USB hub |
| Software Compatibility | ASCOM, ASIAIR, ASIStudio, ZWO SDK |
| Power Consumption | ~120mA @ 5V |
|---|---|
| Power Supply | Powered directly through USB (no external supply required) |
| Diameter | 150 mm |
|---|---|
| Thickness | 25 mm |
| Net Weight | 400 gr |
| Number of boxes | 1 |
|---|---|
| Package contents | 1.25" cover, 1.25" eyepiece/camera holder, 1.25" nosepiece, 10 filter masks, Darkening ring, EFW body, M2*4 flat screws, Phillips screwdriver, T2–T2 male adapter, USB2.0 cable (2 m) |
Reviews

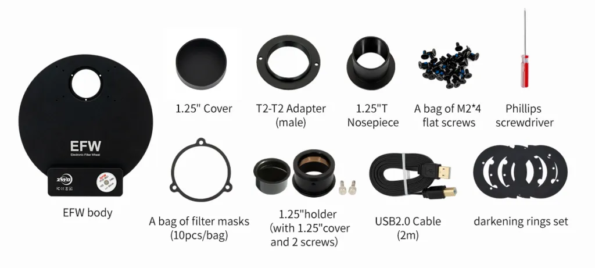

In the Box
In the Box
- ZWO electronic filter wheel (body) with 7-position filter carousel for 36mm filters
- 1.25" cover
- T2–T2 male adapter
- 1.25" nosepiece with T/T2 threads
- Phillips screwdriver and screw set (M2*4 flat screws, retaining screws)
- Filter masks (10pcs)
- 1.25" eyepiece/camera holder with T/T2 threads
- USB2.0 cable (2 m)
- Darkening rings

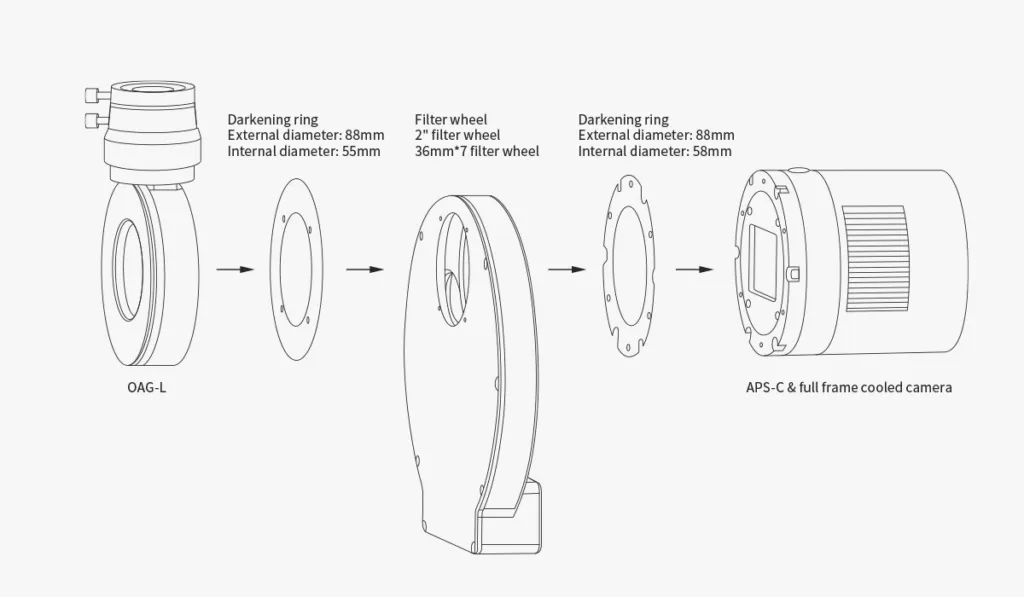

Darkening Rings
In order to help solve the light leaking issue occurring in the gap of the filter wheel and camera, a set of 4 darkening rings are included in the package.
Specifications for the darkening sets:
- External diameter: 88mm.
- Inner diameter: 55mm (2pcs) & 58mm (2pcs).
- Thickness: ≤0.2. 4pcs in total.
More
More
If you are using ASI2600, then directly head over to this instruction: [ASI2600 Guide] 4 Connection methods to get 55mm back focus length
