TeSeek Mini Dual-axis 11 Harmonic Equatorial Mount
Available on backorder
Key Features
- Compact dual-axis harmonic equatorial mount, weighs only 1.3 kg
- Supports up to 5 kg payload (ideal for telephoto lenses and 80ED refractors)
- Self-locking harmonic drive ensures stability even when powered off
- Bluetooth & WiFi control via mobile app with auto star search & navigation
- Compatible with ZWO ASIAIR and PC (OnStep system) control
- Laser polar alignment for quick, accurate setup
- Semi-metallic latitude adjustment base included
- Arca-Swiss 38mm quick-release clamp for easy tripod mounting
- Powered by 12V direct input or 5V/2A power bank (boost cable included)
Description
TeSeek Mini Dual-Axis Harmonic Equatorial Mount (5kg Capacity)
The TeSeek Mini Dual-Axis Harmonic Equatorial Mount is a lightweight yet powerful solution for portable astrophotography. Weighing only 1.3 kg, this compact mount supports loads up to 5 kg, making it ideal for telephoto lenses or small refractors such as an 80ED. Despite its small size, it delivers precision and stability, with self-locking harmonic drive technology that holds position even when powered off.
Smart & Convenient Control
The mount integrates its control box directly into the body, simplifying setup and reducing cables. You can operate it via a dedicated mobile app using Bluetooth or WiFi, with features like automatic star search and navigation. It also supports ZWO ASIAIR or computer-based control, giving astrophotographers full flexibility in the field.
Built for Portability & Accuracy
- Laser polar alignment for quick and accurate setup
- Semi-metallic latitude adjustment base for fine positioning

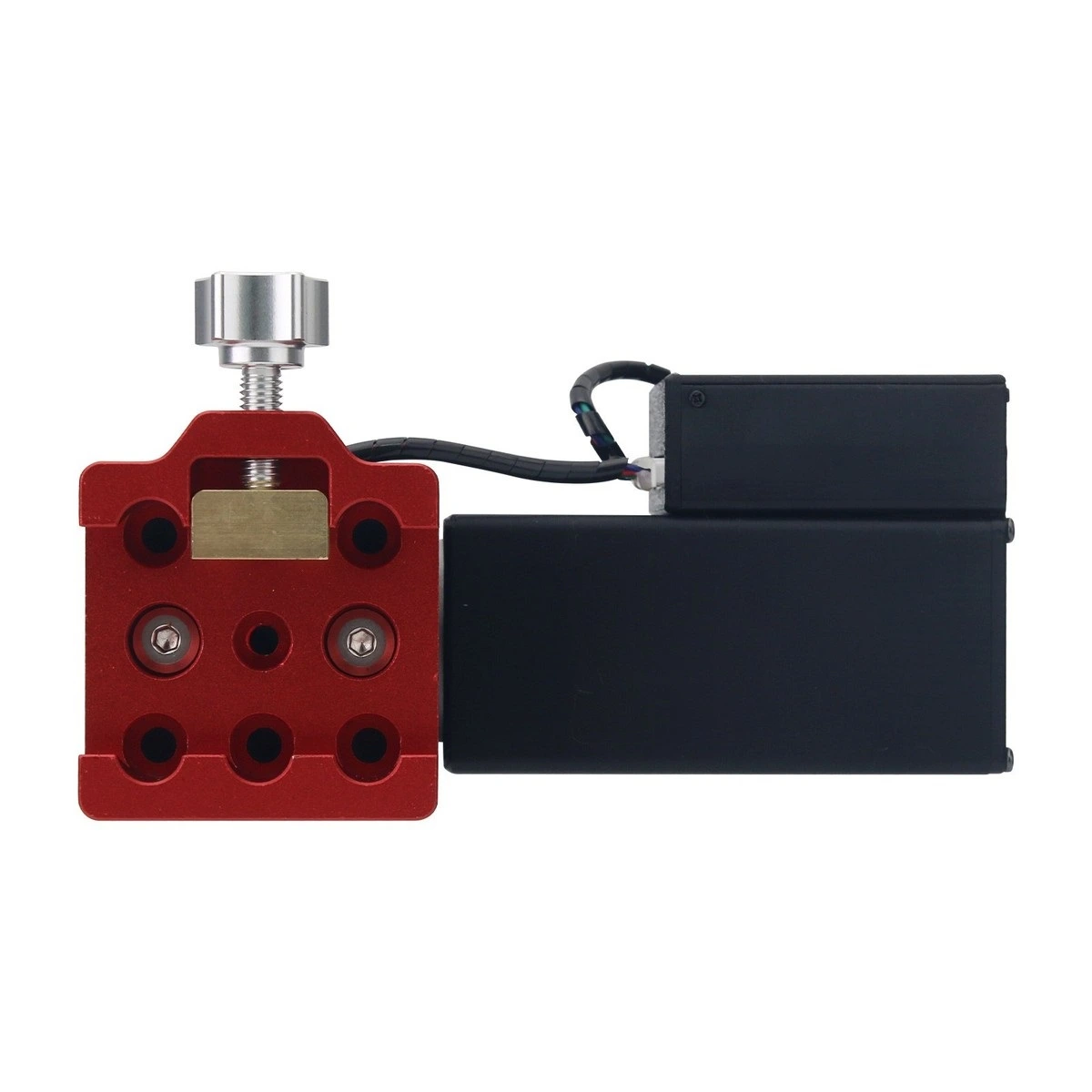

- Arca-Swiss 38mm quick-release clamp on the bottom for easy tripod mounting
- Powered via 5V/2A power bank (boosted to 12V) or directly with a 12V supply
With an actual tested precision between 0.6 – 1 arcseconds RMS (using a Sky-Watcher 130EQ as reference), the TeSeek Mini Harmonic Mount ensures smooth tracking for long-exposure imaging.
Additional information
| Manufacturer | TeSeek |
|---|---|
| Manufactured in | China |
| Type of mount | Harmonic Equatorial Mount |
|---|---|
| Payload capacity | 5 kg |
| Tripod Connection | 38 mm Arca quick-release clamp |
| Control Method | Mobile app (Bluetooth/WiFi), PC (OnStep system), ZWO ASIAIR |
|---|
| Power Supply | 12V direct input or 5V/2A power bank with boost cable (included) |
|---|
| Mount weight | 1.3 kg |
|---|

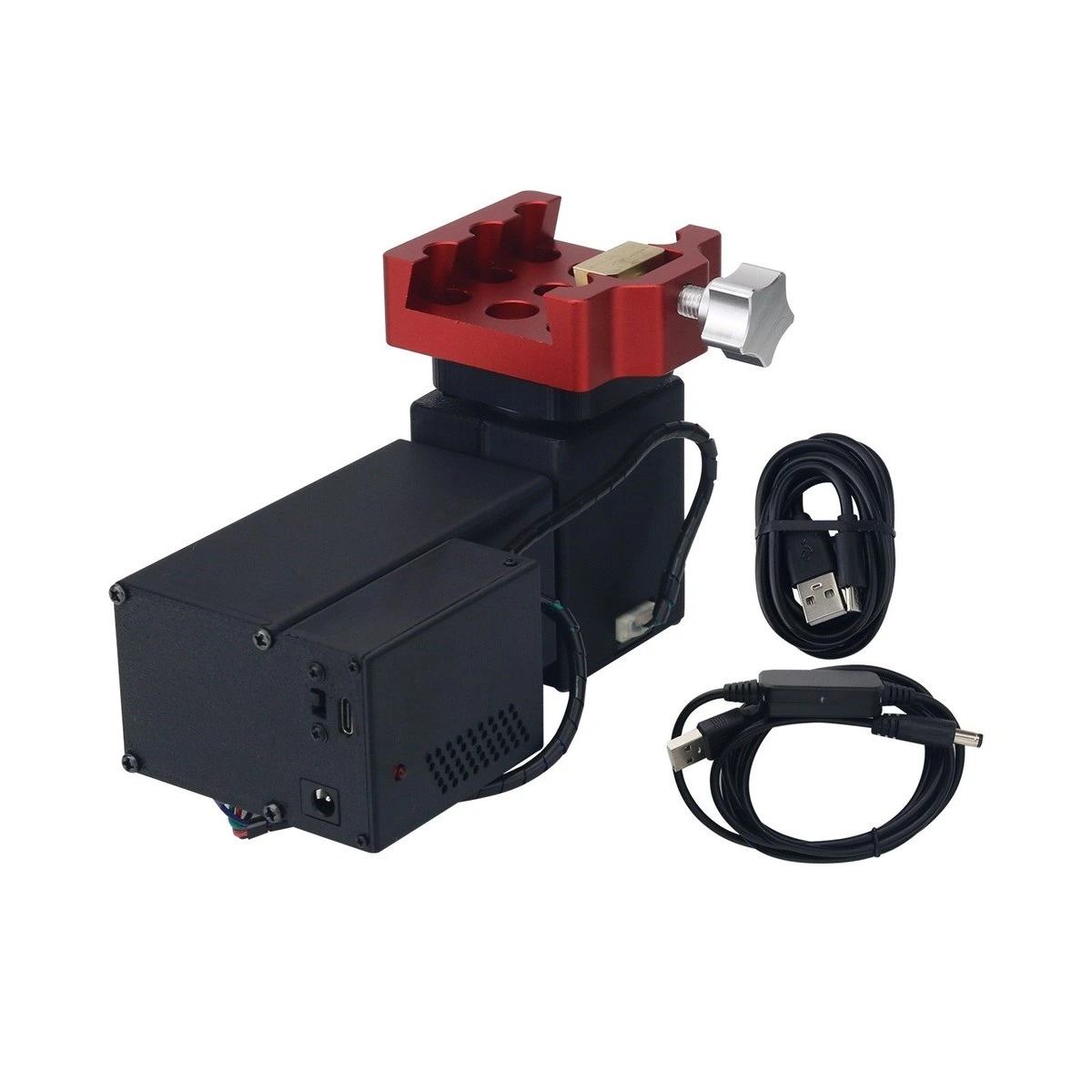

| Package Contents | 1 × 5V to 12V boost line cable, 1 × TeSeek Mini Dual-Axis Harmonic Equatorial Mount |
|---|
| Latitude Adjustment | Semi-metallic base (included) |
|---|---|
| Polar Alignment | Laser polar axis |
