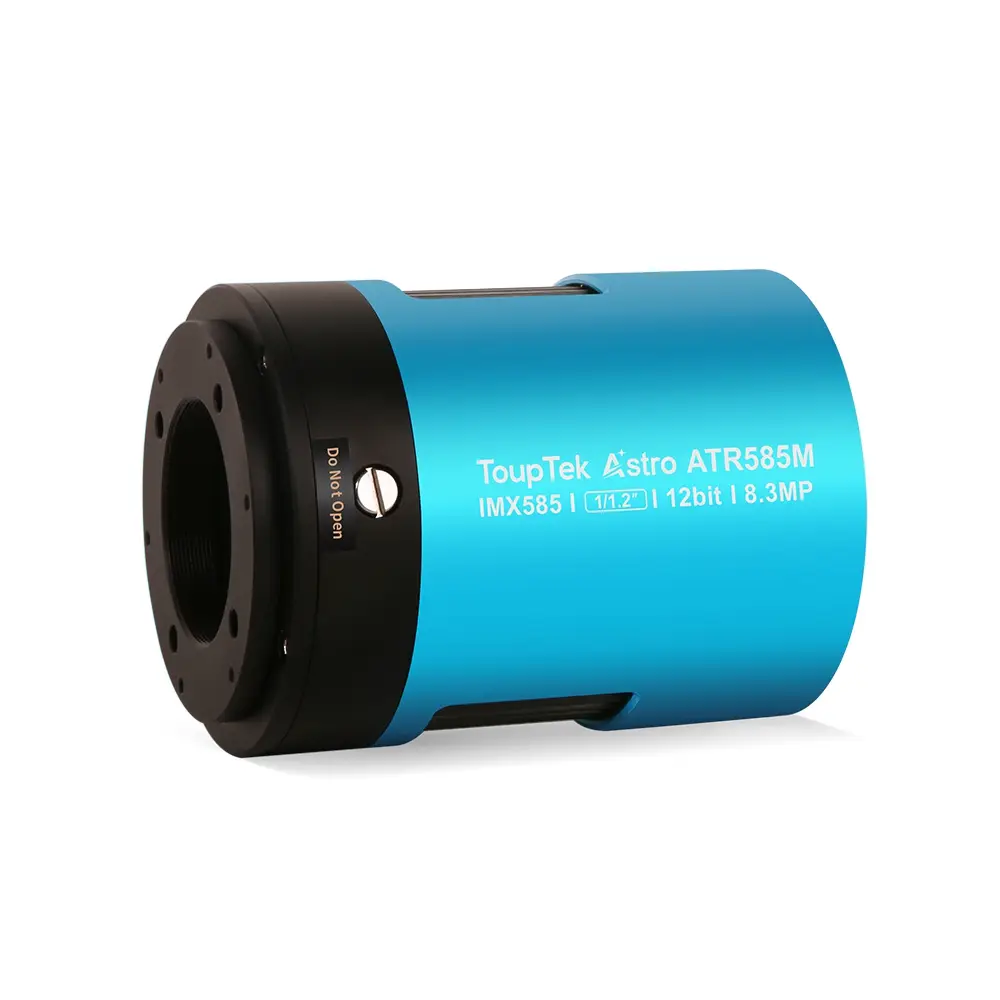

ToupTek ATR585M Mono Astronomy Camera
Available on backorder
Key Features
- 8.3 MP Sony IMX585 mono back-illuminated CMOS sensor with 2.9 µm pixels
- Two-stage TEC cooling up to -45°C below ambient for long-exposure imaging
- Ultra-low read noise for maximum image quality and faint object detection
- Large full-well capacity (~40,000 e-) with excellent dynamic range (~85 dB)
- High frame rates: up to 47 fps (8-bit) at full resolution over USB 3.0
- Near-zero amp-glow design for clean, long-exposure astrophotography
- Built-in anti-dew heater with adjustable power levels
- 512 MB DDR3 memory buffer for stable, loss-free data transfer
- AR-coated protective window (no IR-cut filter, ideal for LRGB & narrowband imaging)
- USB 3.0 data interface and integrated USB 2.0 hub for accessories
- 12V DC power input for cooling and stable operation
- Compact, robust design with M42 × 0.75 mount thread
Description
ToupTek ATR585M Mono Astronomy Camera incorporates the advanced SONY IMX585 sensor, renowned for its exceptional imaging capabilities for both planetary and deep-sky objects. Engineered with an integrated heat dissipation structure and an efficient cooling module, it enables the image sensor to function at a temperature 45℃ lower than the ambient environment. With features including zero amp-glow, a minuscule pixel size, and a high dynamic range (HDR) mode. This camera is ideal for entry-level deep space photography, offering outstanding performance at a remarkably cost-effective price point.
Please remember: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
STARVIS 2
STARVIS refers to the backlight image sensor technology developed by Sony to improve low light characteristics and near-infrared sensitivity. STARVIS 2 improves dynamic range and near-infrared sensitivity compared to STARVIS1. Benefiting from it, ATR585M shows better performance.

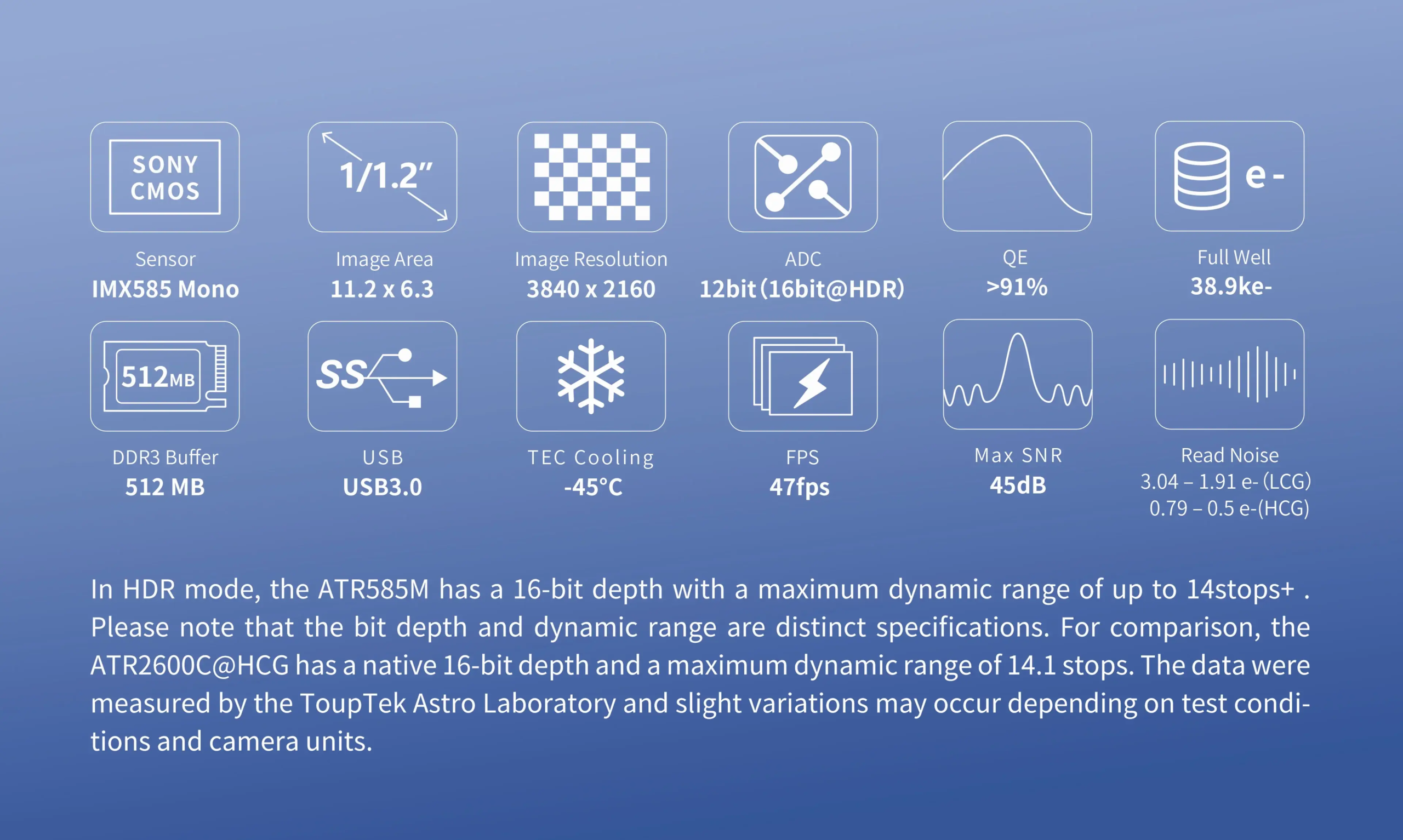

Sensor Information
ToupTek ATR585M is a 1/1.2-inch optical format, 8.3-megapixel CMOS image sensor with a pixel size of 2.9um. lt offers high clarity and low-noise performance.
DDR3
The camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission.
Two stage TEC cooling system
ToupTek ATR585M is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR585M features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 45 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.
Zero Amp-Glow
Anti-dew technology
ToupTek ATR585M adopts the new anti-dew technology , which can effectively solve the condensation problem through heating. This heating function consumes about 5 watts, which can be turned off via software to save power. Additionally, The dew heater at the protection window has 4 adjustable levels, allowing users to find the heating power that best suits their needs.
Mechanical Diagram
Connection with Accessories
Connection with Accessories
Packaging List
To view images taken with the ToupTek ATR585M Mono Astronomy Camera and other specialized astronomical equipment, click the link below:
ToupTek ATR585M - AstroBin
Telescope:
Celestron EdgeHD 8"
Camera:
ToupTek ATR585M
Mount:
Astro-Physics Mach1 GTO
Filters:
ToupTek B 36 mm
ToupTek G 36 mm
ToupTek H-alpha 3.5nm 36 mm
ToupTek Lum 36 mm
ToupTek R 36 mm
Accessories:
Celestron 0.7X Reducer EdgeHD800 (94242)
Celestron Dew Heater Ring 8" (94051)
Pegasus Astro Powerbox Advance Gen2
ToupTek AFW 7x36mm
ToupTek OAG
ZWO EAF
Software:
Adobe Photoshop
Aries Productions Astro Pixel Processor (APP)
AstroSharp Ltd SharpCap
Open PHD Guiding Project PHD2
Pleiades Astrophoto PixInsight
Stefan Berg Nighttime Imaging 'N' Astronomy (N.I.N.A. / NINA)
