QHY GPS Box
Available on backorder
Key Features
- Provides ultra-precise GPS time synchronization for supported QHY astronomy cameras
- Embeds exact exposure start time directly into each image frame
- Built-in GNSS receiver supporting GPS and GPS/Beidou dual-mode operation
- High-stability 10 MHz VCXO oscillator for extremely accurate timing
- Timing resolution up to 0.1 microsecond (µs)
- PPS (Pulse-Per-Second) synchronization for nanosecond-level time accuracy
- Maintains accurate timing even during temporary GPS signal loss
- Automatically re-synchronizes when GPS signal is restored
- GPS-based calibration of the internal clock to minimize frequency drift
- Direct connection via 6-pin aviation connector for reliable data transfer
- Designed for scientific applications such as astrometry and occultation timing
- Compatible with QHY cameras equipped with a dedicated GPS port
Description

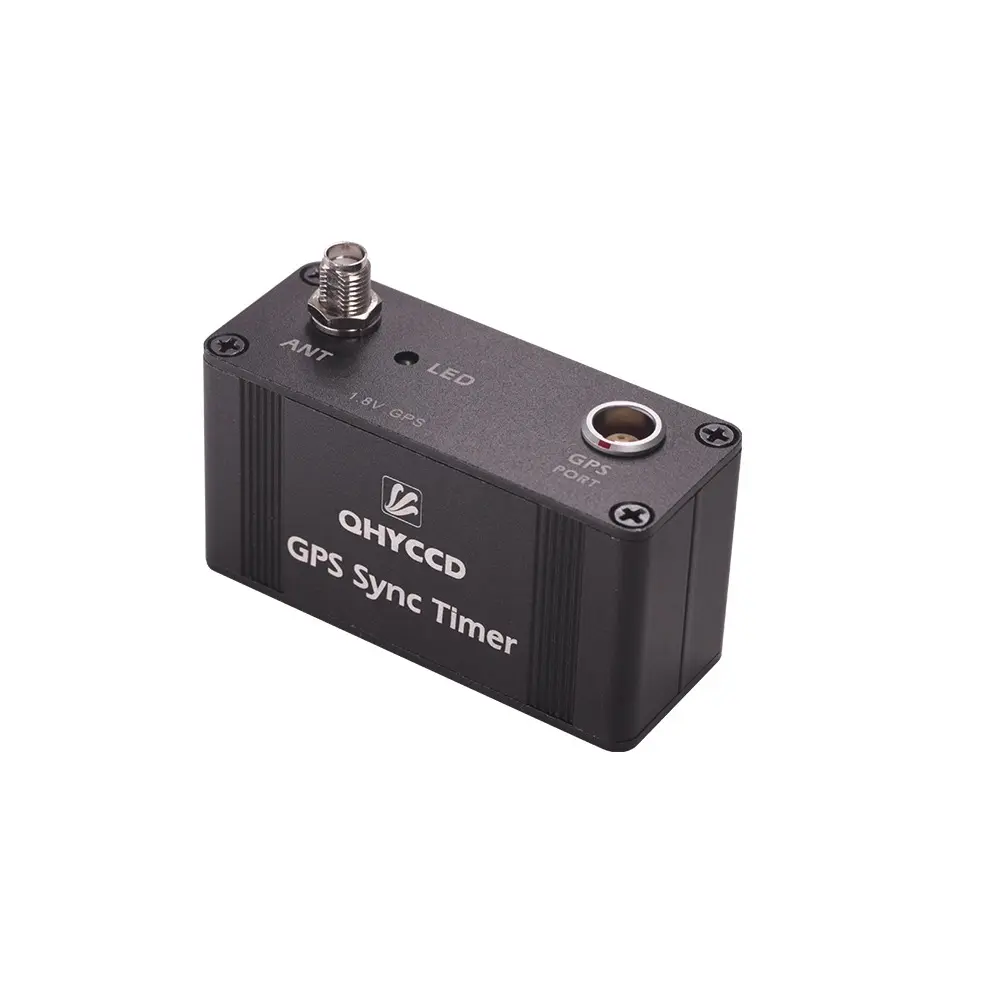

The QHY GPS Box is a small add-on accessory for certain QHY astronomy cameras. It gives the camera very accurate time and GPS information.
The QHY-GPSBOX is a compact camera accessory that provides high-precision GPS hardware time scales allowing some QHYCCD cameras to obtain accurate time information of the camera's exposure time. In addition, this information is returned to the camera internally and added to the image data after the start of one frame of the image. GPS timing information and image information are therefore completely consistent. No confusion is created due to transmission, buffering or other reasons. It is very convenient to use and read.
The QHY GPS Box helps you tag your images with correct time information, which is very useful for things like:
-
Astrometry (measuring precise positions of stars and objects)
-
Occultation observations (timing when a star is blocked by an asteroid)
-
Scientific work where time must be exact
Currently ONLY the following models have 6-pin aviation plug which supports GPSBOX (without further modification).
- QHY600 Pro
- QHY268Pro
- QHY4040
- QHY4040Pro
- QHY6060
- QHY42Pro
- QHY411
- QHY461
Other models don’t have a 6-pin plug but can be modified to be compatible with the QHY-GPSBOX.
