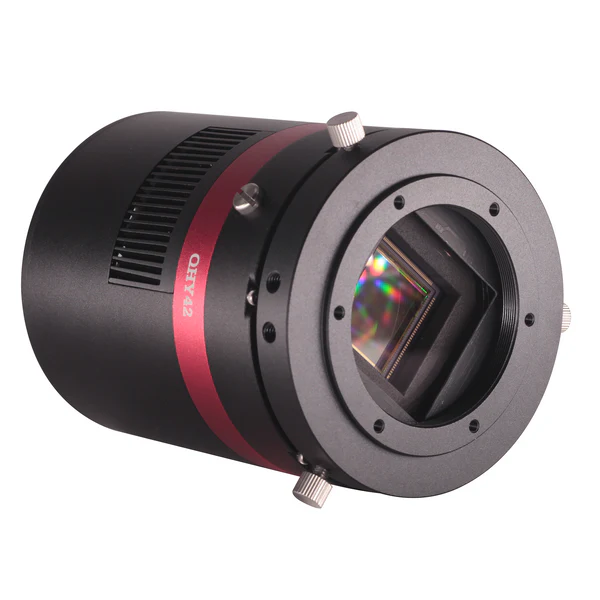

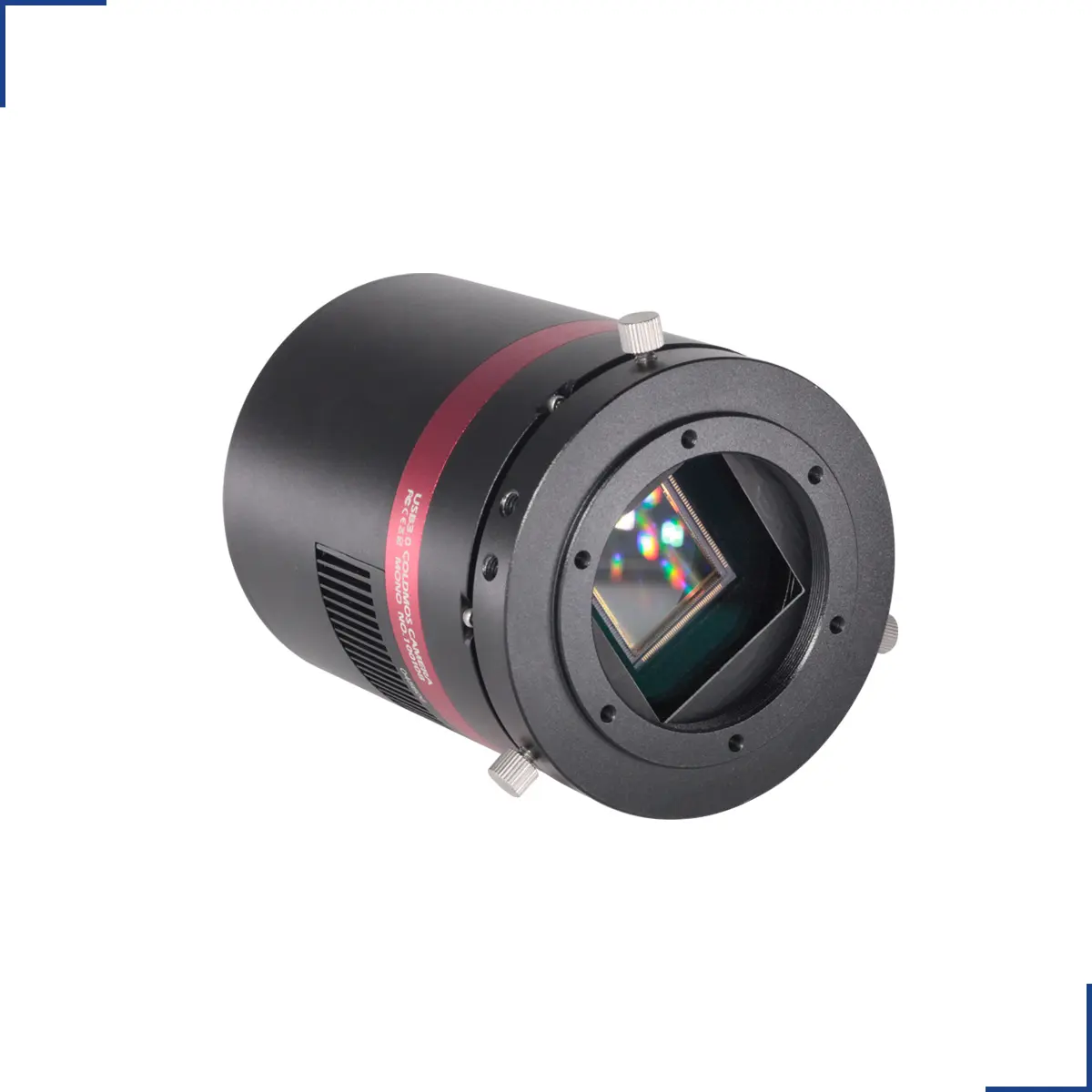

QHY42PRO-BSI Scientific CMOS Camera

Description

The QHY42PRO-BSI is a high-performance Scientific CMOS (sCMOS) camera designed for advanced astrophotography and demanding scientific imaging applications. Built around a professional-grade Gpixel GSENSE400 back-side illuminated (BSI) sensor, this camera delivers exceptional sensitivity, extremely low noise, wide dynamic range, and stable linear response—key requirements for both aesthetic astronomical imaging and quantitative scientific measurements.

Unlike consumer or entry-level astronomy cameras, the QHY42PRO-BSI is engineered as a measurement-capable imaging instrument. Its architecture, cooling system, readout modes, and data handling are optimized not only to produce visually impressive images, but also to preserve accurate photon information. This makes it suitable for applications such as deep-sky astrophotography, photometry, astrometry, exoplanet transit observation, variable star monitoring, and other professional or semi-professional research tasks.

Back-Side Illuminated Sensor Technology

At the heart of the QHY42PRO-BSI is a back-side illuminated (BSI) CMOS sensor. In a BSI design, incoming light reaches the photosensitive area of each pixel without being partially blocked by metal wiring or transistor layers. By relocating the electronic circuitry to the rear side of the sensor, the BSI structure significantly improves light-collection efficiency.

This design results in:

• Higher quantum efficiency (QE)

• Better performance in extremely low-light conditions

• Improved signal-to-noise ratio

• More accurate photon detection for scientific analysis

For astronomical imaging—where targets are often faint and exposure times can be long—BSI technology provides a clear and measurable advantage over traditional front-side illuminated sensors.

Large Pixels and Wide Dynamic Range

The GSENSE400 sensor features large 11 µm × 11 µm pixels, which are especially well suited for low-light imaging. Large pixels can collect more photons per exposure, improving sensitivity and reducing the need for excessive gain. This characteristic is particularly valuable for:

• Narrowband imaging

• Faint nebulae and galaxies

• Scientific measurements where photon statistics matter

Combined with a wide dynamic range and dual-gain readout architecture, the QHY42PRO-BSI is capable of preserving subtle details in both bright and dark regions of an image. This ensures that faint structures are not lost while bright stars remain well controlled.

Advanced Readout and HDR Capability

The camera supports dual-ADC readout, allowing both high-gain and low-gain channels to be used. This enables multiple readout modes, including HDR (High Dynamic Range) operation, where information from different gain paths can be combined.

These advanced readout options provide flexibility for different imaging goals:

• High gain for faint objects

• Low gain for bright targets

• HDR modes for scenes with strong contrast

Such capabilities are especially valuable in scientific imaging, where preserving linearity and maximizing usable data are critical.

Ultra-Low Read Noise for Faint Targets

One of the defining features of the QHY42PRO-BSI is its extremely low read noise, reaching down to approximately 1.7 electrons under optimal conditions. Low read noise allows faint signals to stand out more clearly against the background, improving detection limits and measurement accuracy.

This is essential for:

• Short-exposure stacking

• High-precision photometry

• Observations of very faint or transient objects

Professional Cooling System

Thermal noise is a major limiting factor in long-exposure imaging. To address this, the QHY42PRO-BSI is equipped with a two-stage TEC cooling system capable of reducing the sensor temperature by up to 35 °C below ambient.

Key cooling features include:

• Stable temperature regulation

• Reduced dark current

• Improved calibration repeatability

• Integrated anti-dew heater to prevent condensation on the optical window

This cooling performance ensures consistent results during long imaging sessions and across multiple nights.

High-Speed Data Handling and Connectivity

The camera uses a USB 3.0 interface for fast and reliable data transfer. A built-in 128 MB DDR image buffer helps maintain stable throughput, minimizing dropped frames during high-speed or continuous imaging.

Additional connectivity features include:

• External trigger input/output for precise synchronization

• Compatibility with QHY electronic filter wheels

• Optional GPS time-stamp support (via QHY GPS module) for accurate timing in scientific observations

• Firmware and FPGA upgrade capability via USB

Optical and Mechanical Integration

The QHY42PRO-BSI features a high-quality AR-coated optical window, reducing reflections and maximizing light transmission. With support for common astronomical interfaces such as 2-inch, M48, and M54, the camera integrates easily with a wide range of telescopes, reducers, flatteners, and accessories.

Its mechanical design is optimized for observatory-grade stability, making it suitable for both permanent installations and portable advanced imaging setups.

Designed for Astronomy and Scientific Research

While the camera can be used in other low-light scientific imaging environments with appropriate optics, its primary purpose is astronomical imaging and astronomical research. The combination of BSI sensor technology, low noise, cooling performance, and advanced readout modes makes the QHY42PRO-BSI a powerful tool for users who require more than just beautiful images—they need reliable, measurable data.

Connection to DSO Imaging Software (e.g. NINA)

The QHY42PRO-BSI is fully compatible with popular deep-sky astrophotography software such as N.I.N.A. (Nighttime Imaging ‘N’ Astronomy) through the ASCOM and native QHY drivers. Using a USB 3.0 connection, the camera supports stable high-speed data transfer, full camera control, cooling management, gain and offset adjustment, and seamless integration with filter wheels, guiding, and automation workflows. This allows the camera to be easily used in fully automated DSO imaging setups for both astrophotography and scientific data acquisition.

Conclusion

The QHY42PRO-BSI Scientific CMOS Camera stands as a serious imaging solution for advanced amateurs, observatories, and research-oriented users. It bridges the gap between traditional astrophotography cameras and professional scientific detectors, offering high sensitivity, precision, and flexibility in a well-engineered package.

Specifications for QHY42PRO-BSI

Click to Download QHY42PRO scientific CMOS camera Brochure PDF
