JR100-T Coin Operated Binocular Viewer

Description

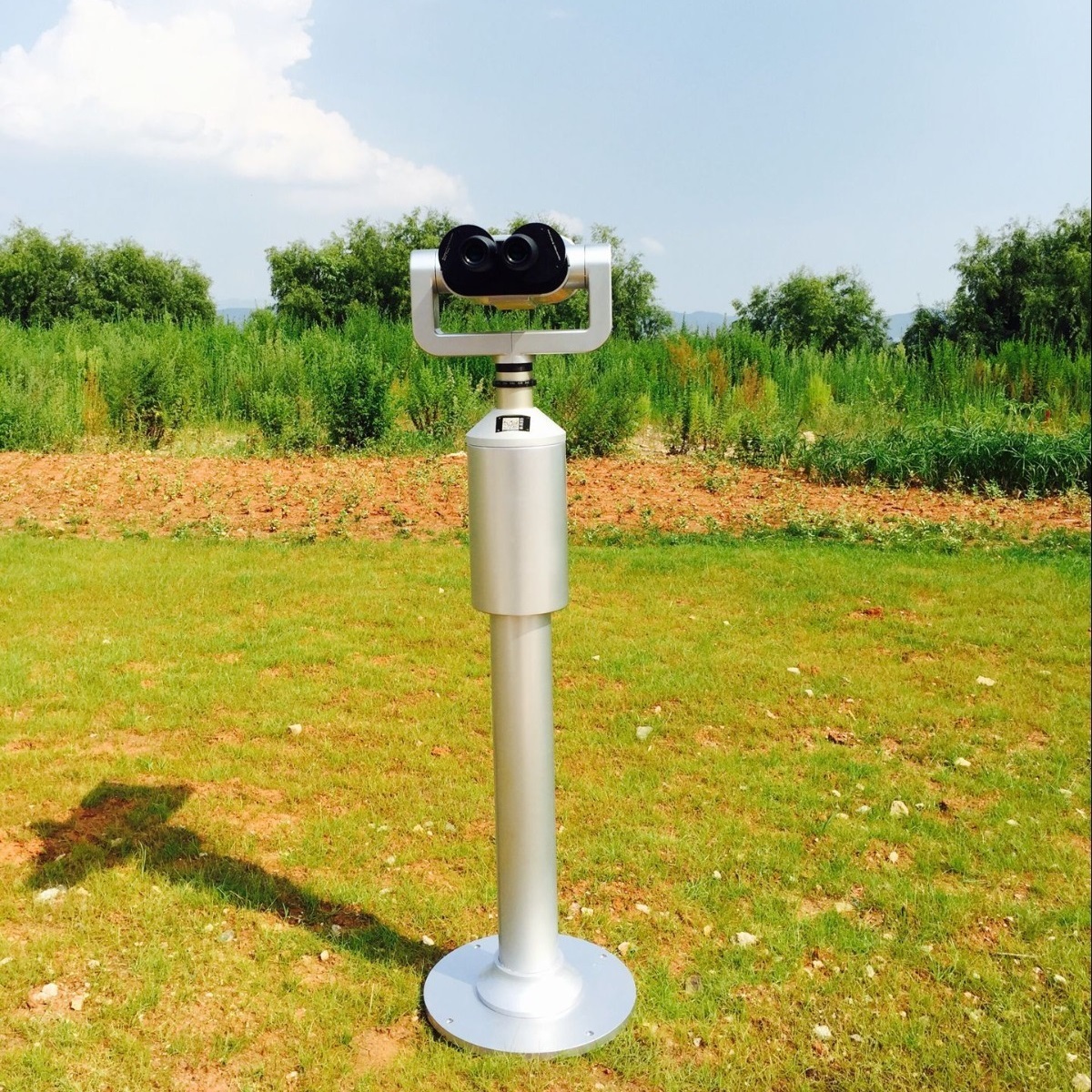

JR100-T Coin Operated Binocular Viewer – Built for Public Scenic Observation

The JR100-T is a fixed, coin-operated binocular viewer designed for scenic viewpoints, observation decks, tourist attractions, and public installations where visitors need clear long-distance viewing with simple operation. Unlike handheld binoculars, this system is built for permanent outdoor use and combines high magnification with a stable mounted structure, making it suitable for observing landscapes, coastlines, landmarks, wildlife, and distant urban scenery.

Long-Range Scenic Viewing with Stable Mounted Observation

With 25× magnification and a large 100 mm objective diameter, the JR100-T is optimized for observing distant subjects that would be difficult to resolve with standard handheld binoculars. The fixed installation eliminates the instability normally associated with high magnification, allowing users to comfortably examine distant buildings, mountain details, coastal views, or ships on the horizon.

The large objective lenses help maintain image brightness despite the high magnification, resulting in a 4 mm exit pupil that remains practical for daylight viewing and moderate low-light conditions. A 3° field of view provides a balanced compromise between reach and orientation, which is appropriate for scenic and landmark observation.

Classification: Very Good — Scenic Viewer

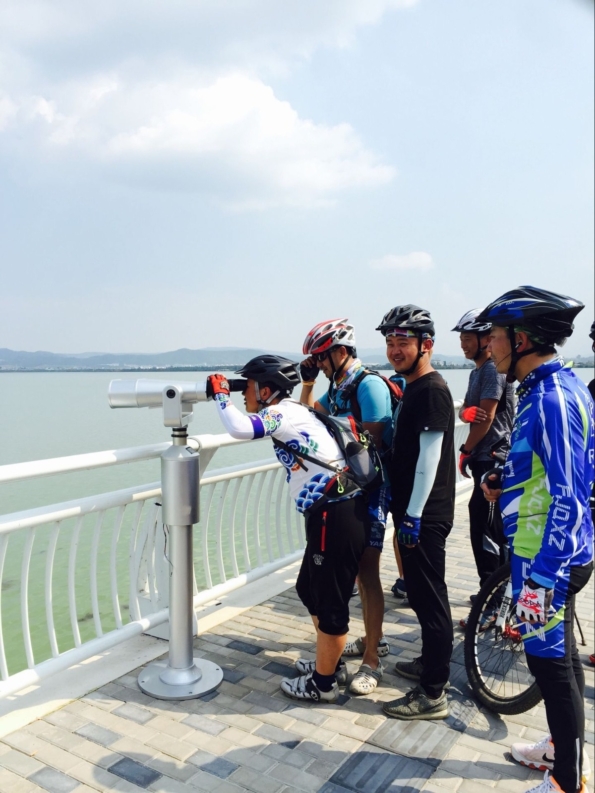

Designed for Tourist Attractions & Public Installations

The JR100-T is specifically intended for locations where large numbers of users interact with the equipment daily. Its coin-operated system allows scenic sites to generate additional revenue while still offering a straightforward user experience. The mechanical coin recognizer is designed to identify coin diameter and thickness reliably and can be adjusted for different local currencies if required.

The binocular viewer supports full 360° horizontal rotation and a ±30° vertical tilt range, allowing users to scan large viewing areas comfortably. An optional height-adjustable base is also available to improve accessibility for different installation environments.

Stable Optical Performance for Outdoor Use

The optical system uses a composite prism design with K9 prism material, supported by a multi-element lens configuration to maintain image sharpness and clarity. With a quoted resolution of ≤2.4 arcseconds, the viewer is designed to provide detailed long-distance observation under normal outdoor conditions.

Because this is a mounted public-viewing instrument rather than a portable binocular, portability and close-focus performance are not priorities. Instead, emphasis is placed on mechanical stability, durability, and consistent viewing quality over long periods of operation.

Weather Resistance & Reliable Operation

Built for permanent outdoor installation, the JR100-T is waterproof and nitrogen-filled to reduce internal fogging caused by temperature and humidity changes. The operating temperature range of -20°C to +70°C allows the system to function in demanding environmental conditions, from cold mountain viewpoints to hot coastal locations.

The coin-operated mechanism is designed for long service life and low power consumption, automatically entering hibernation mode when inactive. Depending on configuration, the electrical system can operate for extended periods while maintaining reliable shutter operation.

Optical & Mechanical Characteristics

The JR100-T uses a fixed binocular viewing system with 25× magnification, a 100 mm entrance pupil, and a composite prism optical design using K9 prism material. The optical assembly includes 10 lens groups / 14 optical elements and provides a 3° angular field of view with a 4 mm exit pupil.

Mechanically, the viewer supports full azimuth rotation and vertical tilt adjustment. The mounted structure is intended for permanent public installation and prioritizes stability over portability.

Handling, Comfort & Durability

Because the JR100-T is permanently mounted, users benefit from stable viewing without needing to support the binocular weight themselves. The 21.5 mm eye relief allows comfortable viewing for many eyeglass wearers, while the fixed public-viewing design simplifies operation for casual users.

The structure is built for long-term outdoor exposure and continuous public use. Waterproofing, nitrogen filling, and durable construction help maintain reliable operation in changing weather conditions.

Included Accessories

Included with the JR100-T:

• Coin-operated binocular viewer
• Integrated coin mechanism
• Power system components

Optional:

• Height-adjustable base

(Accessories and installation configuration may vary depending on order setup.)

Specifications

Items	Specifications
Magnification	25X
Field of View	3°
Exit Pupil	Φ4mm
Eye Relief	21.5mm
Entrance Pupil	100mm
Twilight Factor	50
Relative Brightness	16
Resolution	≤2.4″
Visibility Fixation	-0.5±0.25
Eye Distance	63mm
Prism Type	Composite Prism
Prism Material	K9
Lens Number (binocular)	10 sets/ 14pieces
Dimensions	1540 mm×603 mm×300 mm
Weight	55kg(non-coin operated model: 50kg)
Environmental Adaptive Performance
Items	Performance
Waterproof	Meet the Standard of Q/KYD01-2010
Temperature Adaptivity	-20℃~+70℃
Internal Moisture Preventing Disposal	Filled with Nitrogen Gas
Electrical Device Specifications (only for coin operated model)
Items	Specifications
Power Source	3pcs 18650 Lithium Battery
Coin Chute Protection Level	IP56 (Battery Excluded)
Shutter’s Service Life (number of cycles)	>105
Shutter Duration	10~3600s/coin,10s/change
Coin Diameter Requirement	18mm~29mm
Coin Thickness Requirement	1.2mm~3.0mm
Power Save Mode	Automatically Enter Hibernation in 1min’s idle
Operating Temperature	-20℃~+50℃
